Description of Problem 100000015213

All the documents I print on my Brother machine have a gray background or wide gray vertical lines on the left and/or right side of the page. What can I do?


Description of Solution 200000019620

If you have a gray background on printing or copying, cleaning the laser glass or replacing the toner may resolve this problem.



Brother strongly recommends that customers use only genuine Brother drum units and/or toner cartridges. Each Brother laser printer is designed to work at pre-set temperatures that are matched exactly to each of our individual toner formulations.  Each individual component is designed to work with the other to ensure quality and reliability. Using non-Brother supplies may affect the hardware performance, print quality and machine reliability. The Brother limited warranty does not apply to any problem that is caused by the use of third party drum units, toner cartridges or toner.





1. Clean the laser glass.



a. Turn off the machines power switch located on the right side of the machine.  Unplug the power cord from the AC power outlet.

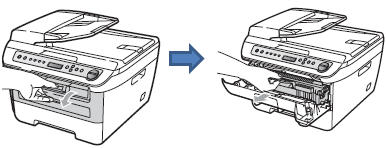

b. Open the front cover.

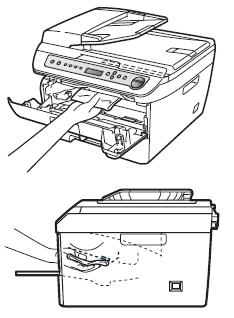

c. Lift the drum unit slightly and pull it out. Place the drum unit on a drop cloth or large piece of disposable paper to avoid spilling and scattering the toner.



d. The laser glass is located inside the machine where the drum was installed. It is a piece of glass, about 1/2 inch wide and approximately 8 inches long, located on the top of the opening. Gently wipe the glass with a clean soft DRY cloth. DO NOT use isopropyl alcohol or any liquid to clean the glass.






e. Reseat the drum unit into the unit pressing it in securely.





f. Close the front cover making sure it latches on both sides.



g. Plug the machine back into the power outlet and turn on the power switch.



2. To test, print the User Settings List:



a. Press MENU.



b. Press the UP OR DOWN ARROW key to select General Setup.



c. Press OK.



d.  Press the UP OR DOWN ARROW key to select User Settings.



e. Press OK.



f. Press START.



- If the problem continues, go to STEP 3.



3. Replace the toner cartridge.



a. Turn off the machines power switch located on the right side of the machine.  Unplug the power cord from the AC power outlet.



b. Open the front cover.





c. Lift the drum unit slightly and pull it out. Place the drum unit on a drop cloth or large piece of disposable paper to avoid spilling and scattering the toner.

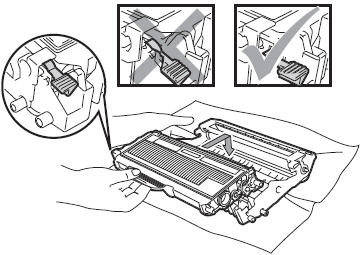

d. Remove the toner cartridge from the drum by holding down the lock lever (green tab) on the right side of the drum unit and lift the toner out.



*Handle the toner cartridge carefully. If toner scatters on your hands or clothes, immediately wash it off with cold water.



e. Unpack the new toner cartridge.



f. Gently rock the toner cartridge from side to side five or six times to distribute the toner evenly inside the cartridge.



g. Remove the Yellow protective cover from the toner cartridge.



h. Place the toner cartridge into the drum (be sure it clicks into place).

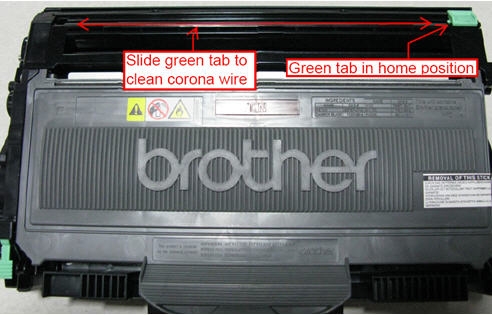

i. Clean the primary corona wire inside the drum unit by gently sliding the green tab on the top of the cartridge from right to left several times. Return the green tab to the home position before reinstalling the drum unit assembly.





j. Reseat the drum unit into the unit pressing it in securely.



k. Close the front cover making sure it latches on both sides.



l. Plug the unit into the wall outlet and turn on the power switch.



4. To test, print the User Settings List:



a. Press MENU.



b. Press the UP OR DOWN ARROW key to select General Setup.



c. Press OK.



d.  Press the UP OR DOWN ARROW key to select User Settings.



e. Press OK.



f. Press START.



If the problem continues and your machine is within warranty, you can locate a Brother Authorized Service Center (ASC) in your area by clicking on the link below:



http://www.brother-usa.com/service/default.aspx or contact Brother Customer Service by calling 1-877-Brother (1-877-276-8437) Monday through Friday, excluding holidays.



If your machine is out of warranty, you can locate a Brother Authorized Service Center using the information listed above.
