Description of Problem 100000017000

How do I install , replace my correction tape?


Description of Solution 200000021735

1. Use the SPACEBAR or BACKSPACE to move the carrier to the center of the typewriter, then turn off the typewriter and unplug the unit from the AC outlet.

2. Open the Top Cover and remove the cassette ribbon, if installed.

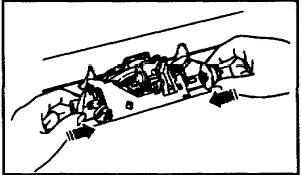

3. Pull off both spools by holding the correction tape taut between the spools; bring the correction tape to a position parallel with the platen and lift up and out.

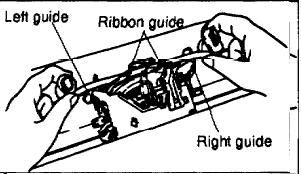

4. Pass the new tape through left guide, behind the ribbon guide and out through the right guide. The rough (sticky) side of the tape should face the platen.

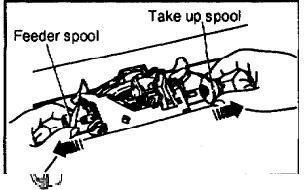

5. Attach the feeder spool to the pin on the left.

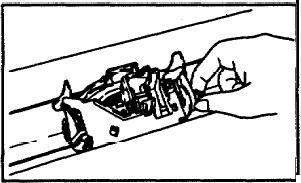

6. Attach the take up spool to the pin on the right. Turn the take up spool counter-clockwise until a small amount of white tape has wound around it.

7. Replace the cassette ribbon and close the top cover, plug in the AC cord to the AC outlet, and turn on the typewriter.
