"Replace Drum (K)" will appear on the display of the Brother machine when the
black drum unit has reached the end of its life and needs to be replaced. The
machine will continue to print, however, if the drum unit is not replaced you
may have a print quality issue and the machine may eventually display a "Drum
Error" message. At that point the machine will stop printing until the drum unit
There are many
factors that determine the actual drum life, such as the temperature, humidity,
type of paper, type of toner used, and so on. Under ideal conditions, the
average drum life is estimated at approximately 15,000 pages. The actual number
of pages that your drum will print may be significantly less than this
estimate. Since we have no control over the many factors that determine
the actual drum life, we cannot guarantee a minimum number of pages that will be
printed by your drum.
recommends that customers use only genuine Brother drum units and/or toner
cartridges. Each Brother laser printer is designed to work at pre-set
temperatures that are matched exactly to each of our individual toner
formulations. Each individual component is designed to work with the other
to ensure quality and reliability. Using non-Brother supplies may affect the
hardware performance, print quality, and machine reliability. The Brother
limited warranty does not apply to any problem that is caused by the use of
third party drum units, toner cartridges, or toner.
The part number for
the black drum unit is DR210CLBK. The drums can also be replaced as a set
(black, yellow, magenta, and cyan) - part number DR210CL.

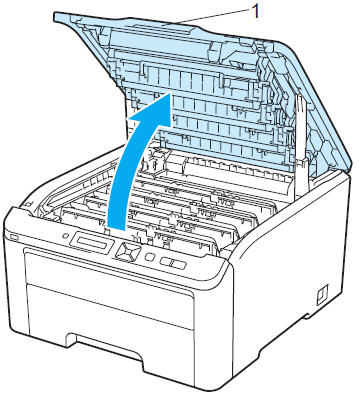

1. Turn off the
power switch located on the right side of the machine. Fully open the top cover
by lifting up on the handle (1).
If the cover is not completely opened, the drum unit may be difficult or
impossible to remove from the machine.
2. Take out the
black drum unit and toner cartridge assembly.

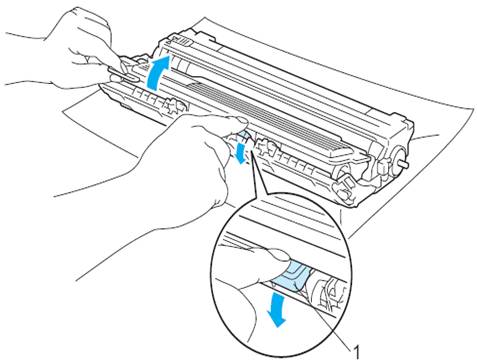

3. Push down the
green-labeled lock lever (1) and take the toner cartridge out of the drum unit.
NOT put a toner cartridge into a fire. It could explode, resulting in injuries.
NOT use cleaning materials that contain ammonia, alcohol, any type of spray, or
any type of flammable substance to clean the outside or inside of the machine.
Doing this may cause a fire or electric shock.
NOT inhale the toner.
recommend that you place the drum and toner cartridge assembly on a clean, flat
surface with a sheet of disposable paper or cloth underneath it in case you
accidentally spill or scatter toner.

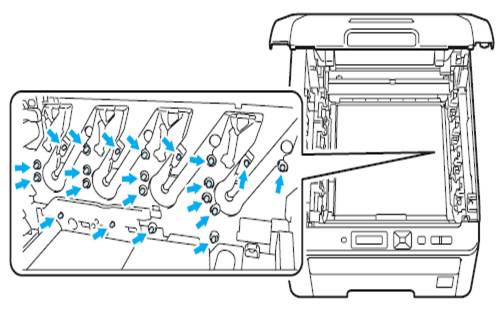

prevent damage to the machine from static electricity, DO NOT touch the
electrodes on the inside of the machine.
Handle the toner cartridge carefully. If the toner scatters on your hands or
clothes, wipe or wash it off with cold water at once.

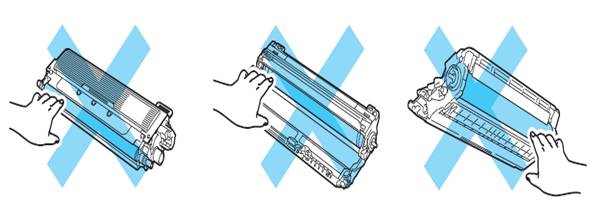

avoid print problems, DO NOT touch the roller on the toner cartridge or on the
shinny drum surface.
sure to seal up the drum unit tightly in a suitable bag so that toner powder
does not spill out of the cartridge.
to http://www.brother-usa.com/enviroment/ for instructions on how
to return the used drum to the Brother collection program. If you choose not to
return your used drum, please discard the used drum according to local
regulations, keeping it separate from domestic waste. If you have questions,
call your local waste disposal office.
4. Unpack the new
drum unit and pull off the protective cover.
to unpack the drum unit until immediately before you put it in the machine.
Exposure to direct sunlight or room light may damage the drum unit.

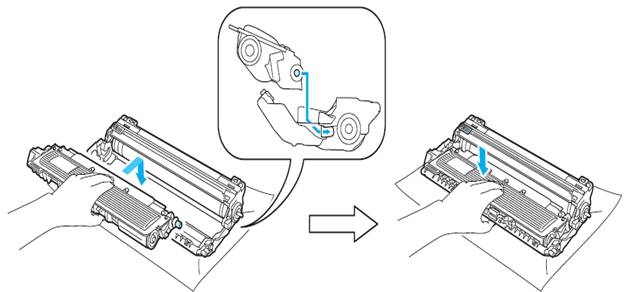

5. Put the toner
cartridge firmly into the new drum unit until you hear it lock into place.
sure that you re-install the toner cartridge properly, or it may separate from
the drum unit.

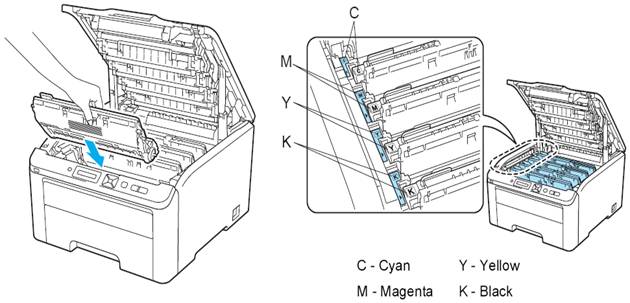

the drum unit and toner cartridge assembly into the machine. Make sure that you
match the toner cartridge to the same color label on the machine.
7. Close the top
cover of the machine.
8. When you replace
a drum unit with a new one, you must manually reset the drum counter. If the
drum counter is not reset, the machine will continue to display the message
"Replace Drum (K)".
a. Turn on the
power switch located on the right side of the machine.
b. Press the +
(PLUS) or – (MINUS) key to select "Machine Info". Press
c. Press the +
(PLUS) or – (MINUS) key to select "Reset Parts Life". Press
d. Press the +
(PLUS) or – (MINUS) key to select "Drum Unit". Press OK.
e. Press the +
(PLUS) or – (MINUS) key to select "Black (K)". Press OK.
f. Press OK
