Description of Problem 100000019136
My Brother machine is making a grinding or clicking noise when printing. What
can I do?Description of Solution 200000024321
strongly recommends that customers use only genuine Brother drum units and/or
toner cartridges. Each Brother laser printer is designed to work at pre-set
temperatures that are matched exactly to each of our individual toner
formulations. Each individual component is designed to work with the other
to ensure quality and reliability. Using non-Brother supplies may affect the
hardware performance, print quality and machine reliability. The Brother limited
warranty does not apply to any problem that is caused by the use of third party
drum units, toner cartridges or toner.
your Brother machine is making a grinding or clicking noise when printing,
verify the drum units and toner cartridges are installed correctly by following
the steps listed below:
Turn the machine OFF using the on/off switch located on the right side of the

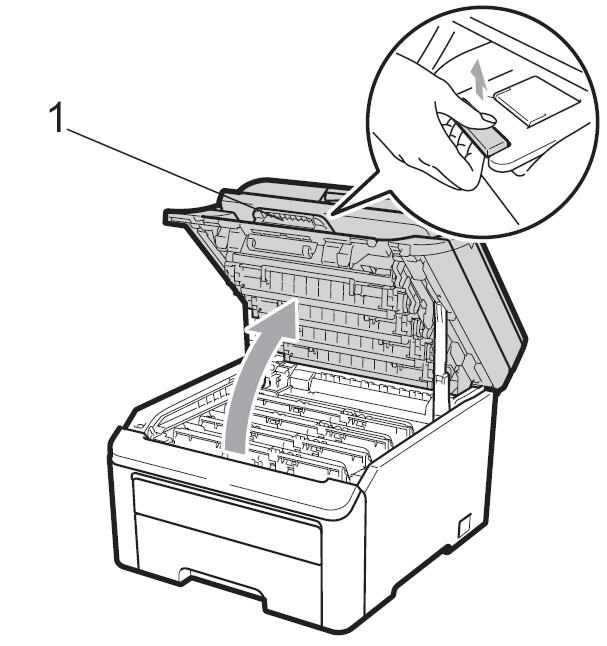

Lift open the top cover using the indented handle in the center until you hear a

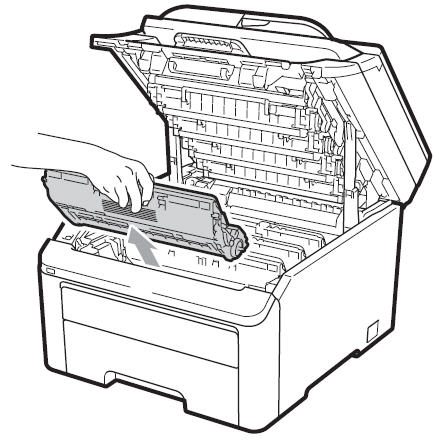

Slowly take out all 4 color drum and toner cartridge assemblies. Each drum unit
and toner assembly can be removed by grasping the center of the drum and toner
assembly and pulling it straight up. Place the drum unit and toner cartridge
assemblies on a piece of disposable paper or cloth to avoid spilling and
scattering the toner.
Check for any paper or look for any damage in the area inside the consumable
area of the machine (place where the drums, etc are stored).
Reinstall the drum unit and toner cartridge assemblies into the machine by
sliding them into the correct slot, matching the toner cartridge color to the
same color label on the machine.
Close the top cover.
Pull the paper tray completely out of the machine.

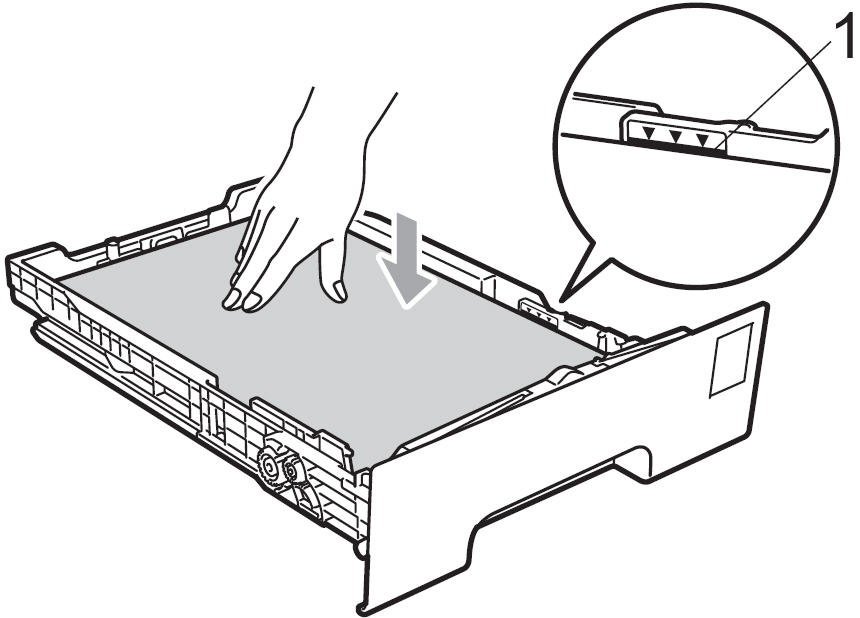

Check the paper in the paper tray to make sure that the paper is below the
maximum paper mark (red line on the right green paper guide).

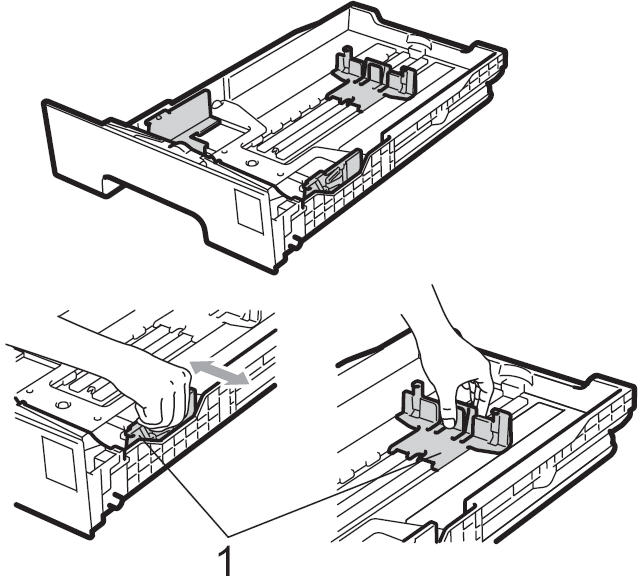

Adjust the paper guides to fit the paper size. Make sure the guides are firmly
in the slots.
Install the paper tray back in the machine.
Power the machine back on.
Print a test page by pressing MENU, 4 (Printer), 2 (Print
Options), 3 (Test Print), and COLOR START.
the problem continues and your machine is within warranty, you can locate a
Brother Authorized Service Center (ASC) in your area by clicking on the link
contact Brother Customer Service by calling 1-877-Brother (1-877-276-8437)
Monday through Friday, excluding holidays.
your machine is out of warranty, you can locate a Brother Authorized Service
Center using the information listed above.
