Description of Problem 100000019312
Why is my machine typing the wrong
characters?Description of Solution 200000024523
Many factors affect
correct character selection. To isolate the problem, follow the directions
- Is the daisy wheel
locked into the carriage correctly?

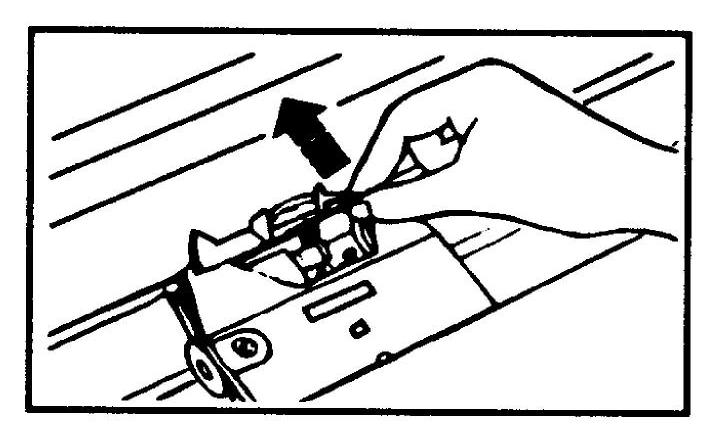

- Open the top,
locate the black lever near the hammer and move it away from the

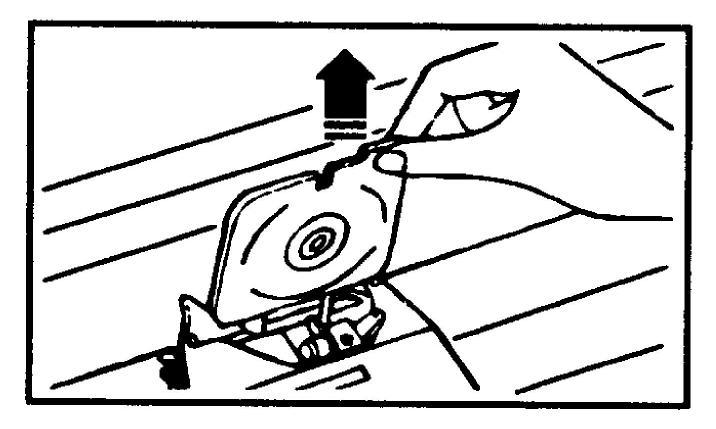

- Lift out the
daisy wheel. Inspect the petals to see if they may be damaged.

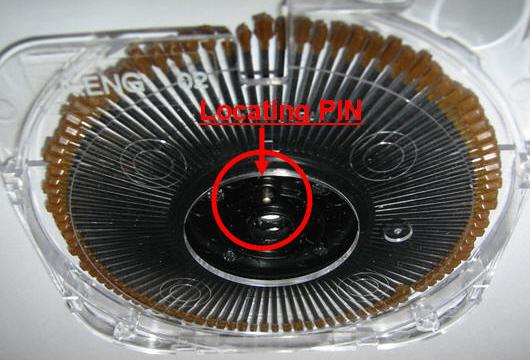

- Locate the small
spring loaded pin near the center of the daisy wheel hub. If the pin
is missing or sticking, or the daisy wheel has damaged petals, replace the
- Look into the
opening from where you removed the daisy wheel. Ensure that there is
no debris in the area; use canned air to blow out the area.

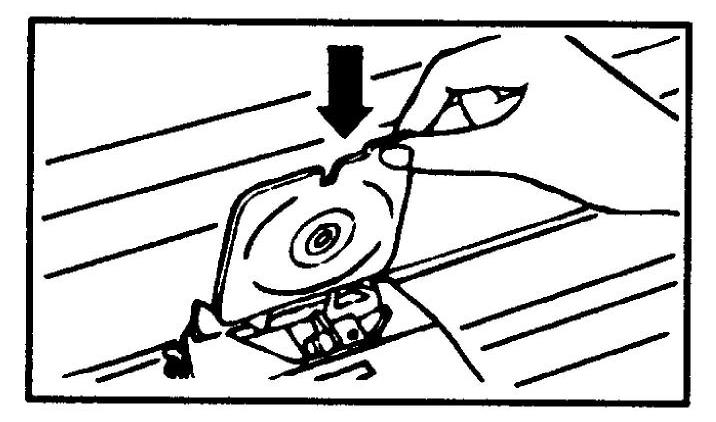

- Reinstall the daisy
wheel or install a new one if the old one is damaged.
- Remember to push
the black lever towards the platen until it snaps into place.
- Close the top cover
and turn on the typewriter.
- After the
carriage moves to the left margin, insert paper, and open the top
- Push the hammer
forward until it presses the daisy wheel petal onto the paper.
- It will leave an
impression on the paper; it should be a lower case “h”.
- If the impression
is any other letter than those above, the typewriter may require
- Examine the
keyboard area. If there is any contamination, i.e. spills, pet hair,
etc, the keyboard may need to be cleaned by a trained technician.
- If the problem is
not resolved after these actions, the typewriter may require service.
