Description of Problem 100000022404
How do I clear black vertical lines when I make a copy, send a fax, or scan an image into the PC?

Description of Solution 200000028501

To determine if the vertical lines appearing on your printed documents are related to a printing or scanning issue, print a test page by pressing MENU, 4 (Printer), 2 (Print Options), 3 (Test Print), and COLOR START.



- If the vertical lines appear on the Test Print, refer to the solution - "How do I clear black, cyan, magenta or yellow vertical lines or streaks appearing on printed documents?"



- If the vertical lines do NOT appear on the Test Print, continue to STEP 1.



1. Cleaning the scanner glass.



NOTE: For a Video Tutorial, refer to the web site http://www.youtube.com/watch?v=Ovq7Ajnibg4



a. Power the Brother machine off using the power switch located on the right side of the machine.

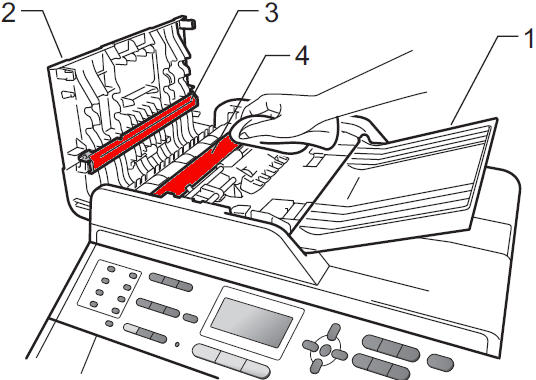

b. Unfold the ADF document support (1) and then open the ADF cover (2). Clean the white bar (3) and the scanner glass strip (4) underneath it with a soft lint-free cloth moistened with water. Close the ADF cover (2) and fold the ADF document support (1).





c. Lift the document cover and clean the following with a lint-free cloth moistened with a non-flammable glass cleaner or water.

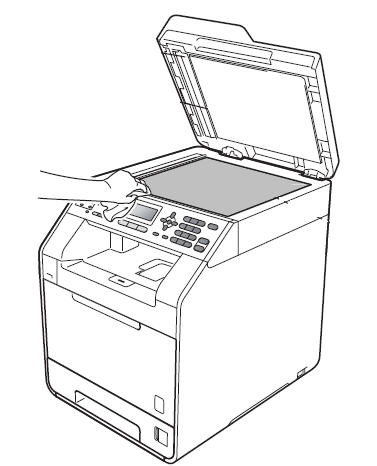

i. Clean the scanner glass of the flat bed. Run your fingertip over the scanner glass to check for debris. Clean the entire glass area, concentrating in the area in which you felt the debris.



CAUTION: Do not press down on the glass very hard.

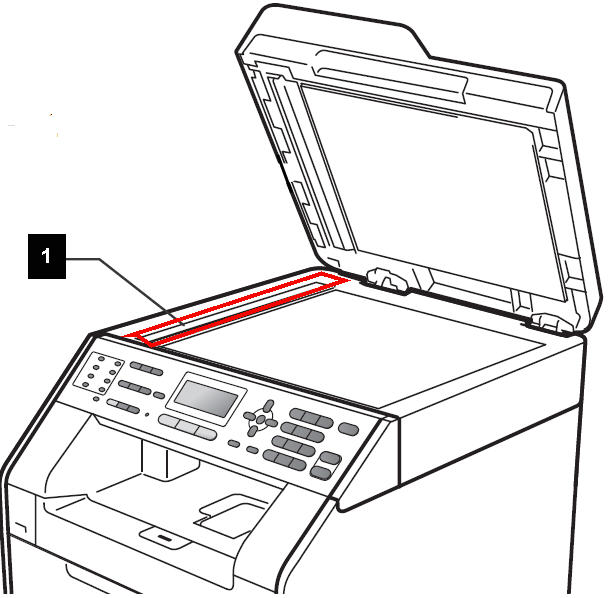

ii. Clean the thin glass strip (1) located to the left of the flat bed glass. Run your fingertip over the scanner glass to check for debris. If you feel debris, clean the entire glass area, concentrating in the area in which you felt the debris.

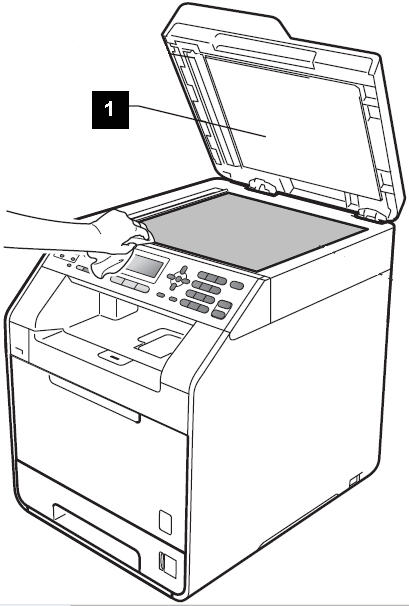

iii. Clean the white plastic pad (1) located on the underside of the document cover.

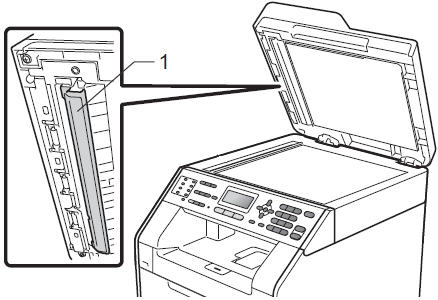

iv. Clean the white plastic pressure bar (1) located to the left of the white plastic pad.





d. Close the document cover.



e. Power the Brother machine on using the power switch located on the right side of the machine.



2. Test the machine by making a copy of a blank sheet of paper using the ADF (Automatic Document Feeder) and a copy using the flat bed scanner.



a. To make a copy using the ADF, place the blank sheet of paper in the ADF, press the COPY mode key located below the LCD display and then COLOR START.



- If the problem continues, repeat STEP ii and STEP iv at least 3 additional times.



b. To make a copy using the flat bed, lift the document cover of the flat bed, place the blank sheet of paper on the scanner glass (make sure the ADF is empty) and close the document cover. Press the COPY mode key located below the LCD display and then COLOR START.



- If the problem continues repeat STEP i and STEP iii at least 3 additional times.



3. If the problem continues after multiple cleanings and your machine is within warranty, you can locate a Brother Authorized Service Center (ASC) in your area by clicking on the link below:

http://www.brother-usa.com/service/default.aspx or contact Brother Customer Service by calling 1-877-Brother (1-877-276-8437) Monday through Friday, excluding holidays.



If your machine is out of warranty, you can locate a Brother Authorized Service Center using the information listed above.



NOTE: If it is determined that the problem was strictly maintenance related and not a mechanical malfunction, the service will not be covered under the warranty and you will be responsible for all ASC charges.
