Description of Problem 100000022526
The paper is jamming. The Status Monitor displays "Jam Tray 1", "Jam Inside",
or "Jam Rear". What can I do?Description of Solution 200000028667
When a paper jam
occurs, the Error LED on the control panel will flash. The Status Monitor
may display "Jam Tray 1, "Jam Inside" or "Jam Rear".
Perform the steps
below to clear the paper jam:

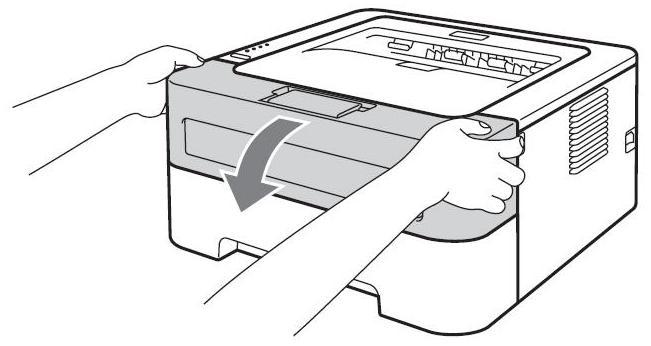

1. Open the front
cover and leave the machine for at least 10 minutes to cool down.

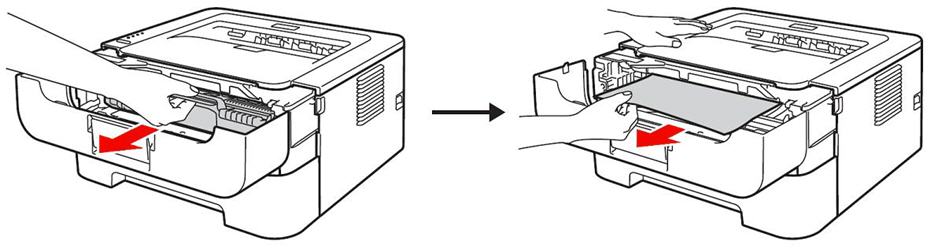

2. Slowly take out
the drum unit and toner cartridge assembly. The jammed paper may be pulled out
with the drum unit and toner cartridge assembly, or this may release the paper
so you can pull it out of the machine.
We recommend that you put the drum unit and toner cartridge assembly on a piece
of disposable paper or cloth in case you accidentally spill or scatter toner.

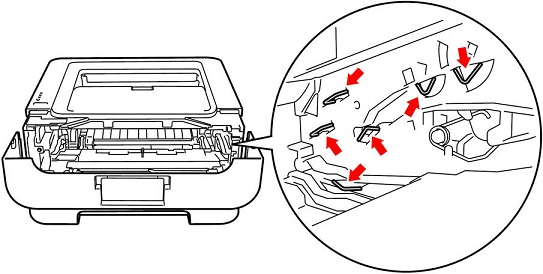

prevent damage to the machine caused by static electricity, DO NOT touch the
electrodes shown in the illustration.

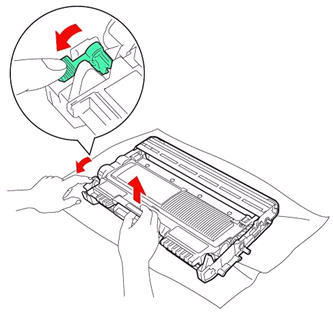

3. Separate the
toner cartridge from the drum unit by pushing down the green lock lever on the
left side of the drum unit and then pulling up on the toner cartridge. Clear any
jammed paper found inside the drum unit.

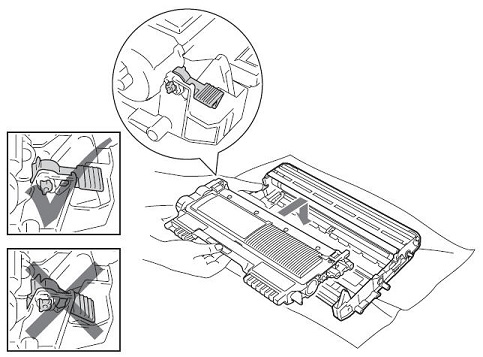

4. Put the toner
cartridge back into the drum unit until you hear it lock into place. If you put
the cartridge in properly, the green lock lever will lift
5. Close the front
not put the drum unit and toner cartridge assembly back in at this
6. Pull the paper
tray completely out of the machine.

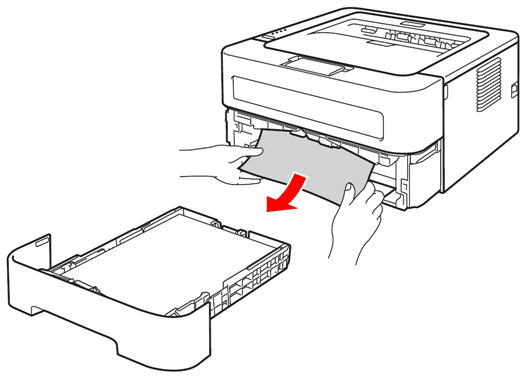

7. Use both hands
to slowly pull out the jammed paper.
a. Inspect and see
if the green plastic paper guide in the rear of the paper tray is damaged,
removed, or missing.
- If yes,
this is a possible cause of your issue. Proceed to the following
green plastic guide in the rear of my paper tray is damaged, removed or is
missing. What do I do?"
- If no, proceed to
8. Put the paper
tray firmly back in the machine.

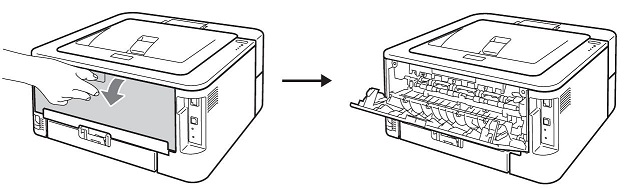

9. Open the back

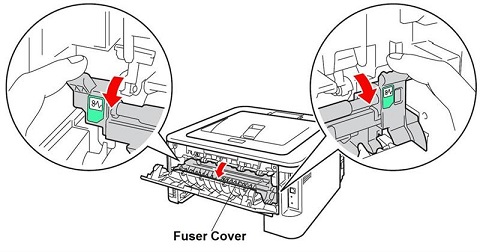

10. Pull down the
tabs at the left and right hand sides to open the fuser cover.

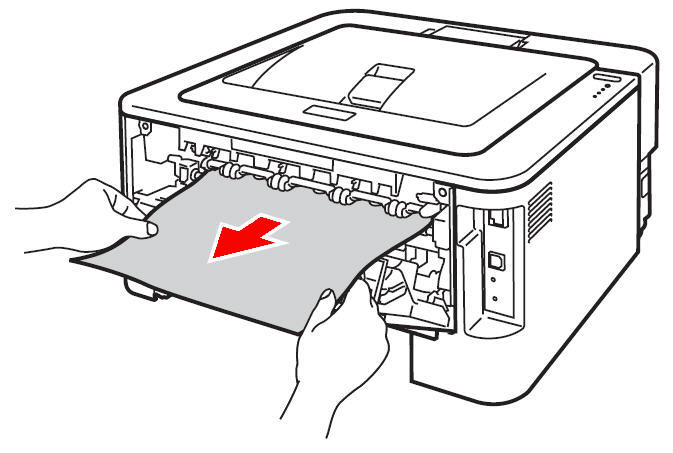

11. Using both
hands, gently pull the jammed paper out of the fuser unit.
12. Close the fuser
cover and the back cover.
13. Open the front
14. Put the drum
unit and toner cartridge assembly back into the machine.
15. Close the front
16. Make sure that
the Error LED is off and the Ready LED is on. If the machine does
not start printing automatically, press the GO button.
To prevent paper
jams from occurring, be sure to use paper that meets the specifications of the
machine. For more information, refer to the solution -"What
type and size of paper is recommended for use in the Brother machine?"
If the problem
continues and your machine is within warranty, you can locate a Brother
Authorized Service Center (ASC) in your area by clicking on the link
or contact Brother Customer Service by calling 1-877-Brother (1-877-276-8437)
Monday through Friday, excluding holidays.
If your machine is
out of warranty, you can locate a Brother Authorized Service Center using the
information listed above.
