Description of Problem 100000023549

How do I clear black vertical lines when I make a copy, send a fax, or scan an image into the PC?


Description of Solution 200000030037

1.  To determine if the vertical lines appearing on your printed documents are related to a printing or scanning issue, print a test page by pressing MENU, Printer, Print Options, Test Print, and COLOR START.



- If the vertical lines appear on the Test Print, refer to the solution - "How do I clear black, cyan, magenta or yellow vertical lines or streaks appearing on printed documents?"



- If the vertical lines do NOT appear on the Test Print, continue to the next step.



2.  Copy from flatbed:



a.  Lift the document cover and place the Test Print printed earlier on the flatbed glass (big glass).



b.  Press COPY and press BLACK START.



-  If the printed copy has black vertical line or printed copy comes out all black. Go to STEP 4.



-  If the printed copy is blank without any lines. Continue to next step.



3.  Copy from ADF (Automatic Document Feeder):



a.  Lift the document cover and remove the Test Print from the flatbed glass. Close the document cover.

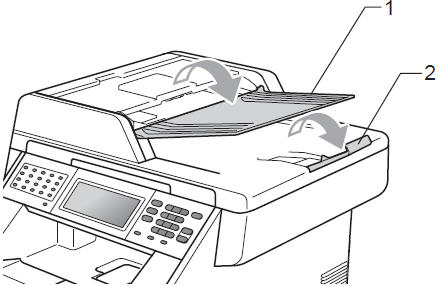

b.  Unfold the ADF document support (1) and lift up and unfold the ADF document output support flap.

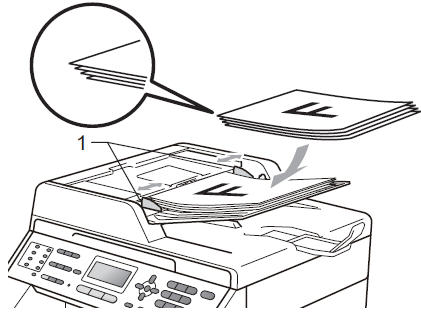

c.  Place the Test Print in the ADF (Automatic Document Feeder).



d.  Press COPY and press BLACK START.



-  If the printed copy comes out blank. Go to STEP 3.



-  If the printed copy comes out with black vertical line. Continue to next step.



e.  If you are only getting black line when copying/scanning or sending a fax using the ADF (Automatic Document Feeder), this is caused by debris or something stuck on the ADF Glass. ADF glass is a small strip of glass in front of the flatbed glass or big glass (shown below). A tiny spec of debris stuck on the ADF glass can cause a vertical line.



NOTE: For a Video Tutorial, refer to the web site http://www.youtube.com/watch?v=Ovq7Ajnibg4

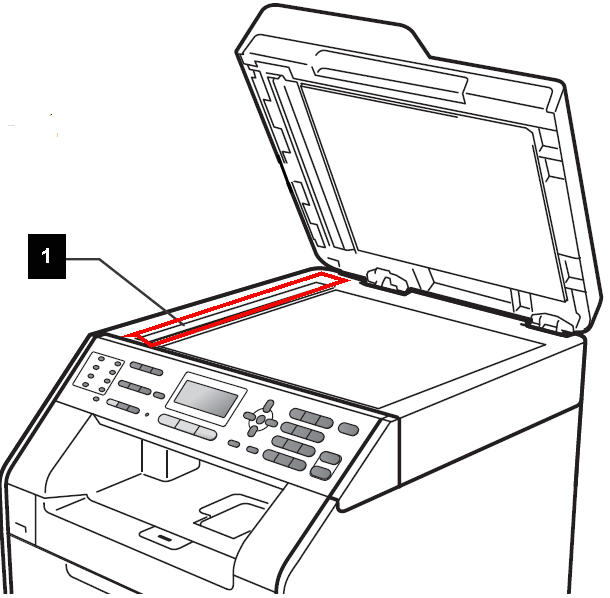

f.  Lift the document cover and then dampen a soft cloth with non-flammable glass cleaner or isopropyl alcohol and clean the thin glass strip (1) located to the left of the flat bed glass thoroughly. Run your fingertip over the scanner glass to check for debris. If you feel debris, clean the entire glass area, concentrating in the area in which you felt the debris.

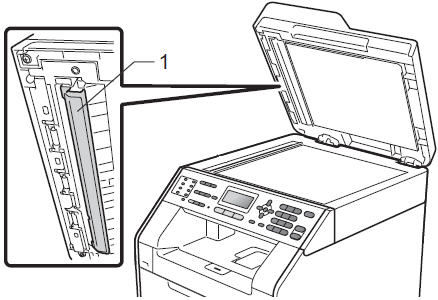

g.  Clean the white plastic pressure bar (1) located to the left of the white plastic pad.





h.  Close the document cover.



i.  Place the Test Print in the ADF (Automatic Document Feeder).



j.  Press COPY and press BLACK START.



-  If the copy comes out blank. Go to STEP 3.



-  If the copy comes out with black vertical line. Repeat STEPS f - j at least 3 times.



k.  If the line is getting lighter or smaller this will indicate there is something definitely stuck on the ADF glass, repeat STEPS f - j to the clean the ADF glass until the problem is resolved.



l.  If the problem continues after multiple cleanings and your machine is within warranty you can locate a Brother Authorized Service Center (ASC) in your area by clicking on the link below:

http://www.brother-usa.com/service/default.aspx or contact Brother Customer Service by calling 1-877-Brother (1-877-276-8437) Monday through Friday, excluding holidays.



If your machine is out of warranty, you can locate a Brother Authorized Service Center using the information listed above.



NOTE: If it is determined that the problem was strictly maintenance related and not a mechanical malfunction, the service will not be covered under the warranty and you will be responsible for all ASC charges.



3.  Duplex Copy Test.



a.  Place a Test Print in the ADF(Automatic Document Feeder) face up (writing facing up).





b.  Press COPY, then press Duplex Copy, press 2 sided -> sided, press BLACK START.



-  If the printed copy on both side does not have lines. Issues resolved.



-  If the printed side of the copy has vertical line. Go back to STEP 2e.



-  If the blank side of the copy has vertical line. Continue to next step.



c.  Open the ADF cover. Clean the white plastic bar and the scanner glass strip underneath it with a soft lint-free cloth moistened in non-flammable glass cleaner or isopropyl alcohol. Close the ADF cover.





d.  Place a Test Print in the ADF(Automatic Document Feeder) face up (writing facing up).



e.  Press COPY, then press Duplex Copy, press 2 sided -> sided, press BLACK START.



-  If the printed copy on both side does not have lines. Issues resolved.



-  If the printed side of the copy has vertical line. Go back to STEP 2e.



-  If the blank side of the copy has vertical line. Repeat STEPS c - e at least 3 more times.



f.  If the line is getting lighter or smaller this will indicate there is something definitely stuck on the ADF glass, repeat STEPS c - e to the clean the ADF glass until the problem is resolved.



g.  If the problem continues after multiple cleanings and your machine is within warranty you can locate a Brother Authorized Service Center (ASC) in your area by clicking on the link below:

http://www.brother-usa.com/service/default.aspx or contact Brother Customer Service by calling 1-877-Brother (1-877-276-8437) Monday through Friday, excluding holidays.



If your machine is out of warranty, you can locate a Brother Authorized Service Center using the information listed above.



NOTE: If it is determined that the problem was strictly maintenance related and not a mechanical malfunction, the service will not be covered under the warranty and you will be responsible for all ASC charges.



4.  If the problem continues and your machine is within warranty, you can locate a Brother Authorized Service Center (ASC) in your area by clicking on the link below:

http://www.brother-usa.com/service/default.aspx or contact Brother Customer Service by calling 1-877-Brother (1-877-276-8437) Monday through Friday, excluding holidays.



If your machine is out of warranty, you can locate a Brother Authorized Service Center using the information listed above.



NOTE: If it is determined that the problem was strictly maintenance related and not a mechanical malfunction, the service will not be covered under the warranty and you will be responsible for all ASC charges.
