1. Print a Print
Quality Check Sheet (PQCS).
the INK key.
b. Press OK to
select TEST PRINT.
OK to select PRINT QUALITY.
d. Press COLOR
machine will generate the Print Quality Check Sheet (PQCS). On the PQCS each of
the four colors is represented by a slanted square pattern made up of 96
individual blocks. The colors should appear in the following order from left to
right: Black - Yellow - Cyan - Magenta. Cyan is the light
blue color and Magenta is the pinkish color.
2. The LCD will
display IS QUALITY OK? 1. YES 2. NO. Do
NOT press 1 or 2. Press STOP/EXIT to return to the Date and
3. Evaluate the
Print Quality Check Sheet (PQCS) to determine the print quality
The document below
contains examples of Black Ink printing issues. A similar print issue can
occur in each of the colors C/M/Y.
all four colors printed with no missing dotted lines (example A),
the issue is resolved.
any of the colors (Y, C, M) only (not black) has any missing dotted
lines, go to solution - My
printed documents are missing colors (Y, C, M). What can I

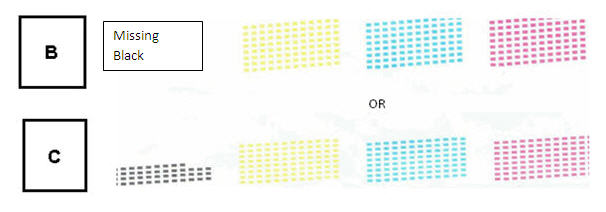

all the Black dotted lines are missing (example B) or a group
of Black dotted lines are missing (example C), click

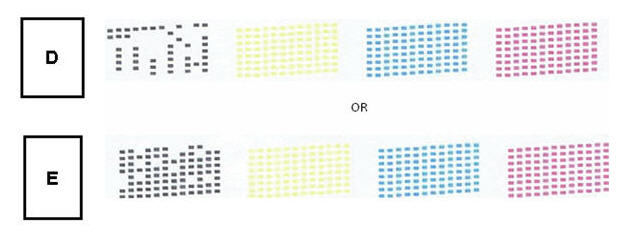

Black only or Black and a Color has random dotted lines
missing (examples D and E), continue to STEP
4. Do the following to
clean the print head:
Cleaning the print head consumes ink. Cleaning too often uses ink
the INK key on the control panel.
b. Press the DOWN
ARROW key until CLEANING appears on the LCD.
d. Press the DOWN
ARROW key to select BLACK, COLOR or ALL depending on what you want to
OK. The machine will clean the print head.
Print another Print Quality Check Sheet (PQCS).
INK. TEST PRINT will appear on the LCD.
OK. PRINT QUALITY will appear on the LCD.
COLOR START. The machine will generate another PQCS. Once
printing is complete, the LCD will display: IS QUALITY OK? 1. YES 2.
NO. Do NOT press 1 or 2.
e. Press STOP/EXIT
to return to the Date and Time display.
6. Review the new
PQCS and do the following based on the quality of the sheet:
all four colors printed correctly and the print quality is acceptable,
the issue is resolved.
Black only or Black AND any of the other colors is still missing
dotted lines, compare the 2nd PQCS to the 1st PQCS printed.
there IS improvement in the print quality of the second PQCS compared to
the first PQCS, go to STEP
there is NO improvement in the print quality of the 2nd PQCS
compared to the 1st PQCS, click here.
7. If there IS
improvement in the print quality of the second PQCS compared to the first
PQCS, complete at least 3 more cleanings by following STEP
4. The recommendation
is to complete the print head cleaning at least four (4) times total to
ensure the head is completely clean.
After completing 3 more cleanings, print the PQCS again (STEP
Compare the new PQCS to the previous PQCS and determine if there is any
there is no improvement and the print quality continues to be unacceptable,
contact Brother Customer Service and we will assist with a
cleaning process that will possibly resolve the issue. If repair is needed
Brother may extend the warranty.
Customer Service can be reached by calling
1-877-Brother (1-877-276-8437) Monday through Friday, excluding
