Description of Problem 100000025803

How do I configure the wireless printer and install the printer driver without a cable using the downloaded driver in Windows 2000, XP, Vista, 7, 8, Server 2003, 2008, 2008 R2, or 2012?


Description of Solution 200000033072

PART I: Gather the wireless network settings of your wireless access point or wireless router



Gather the following wireless network settings of your access point or router.  Refer to the access point's user guide for instructions on accessing the network settings information.



SSID or Network Name

The name of your Wireless Network or Access Point

Authentication Method

Open System, Shared Key, WPA-PSK/WPA2-PSK, LEAP

Encryption Mode

None, WEP, TKIP, AES, CKIP

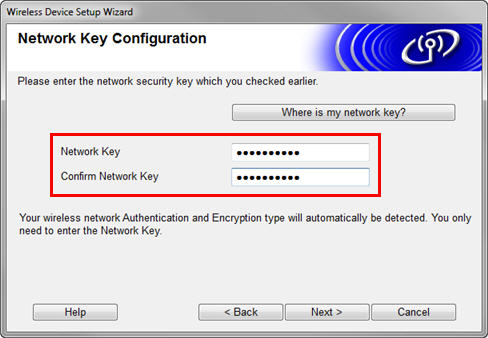

Network Key

Depending on the Encryption Mode of your wireless network, a network key or password may be required



If you are using MAC (Media Access Control) Filtering/MAC Address Access Control on your access point or router, add the printers MAC Address to the table.  The MAC Address is available on the Wireless Settings Page.  Press the GO button (control panel button) 3 times on the printer to print the Wireless Settings.  Make sure the Node Type is Brother NC-7800w.



IMPORTANT:  Some access points and routers have both a primary and guest network.  Guest networks allow access to the network Internet connection, but restricts direct access to the network.  The Brother machine should be setup on the primary network and not the guest network.



If you do not have the network settings information or cannot find this information, refer to the solution - How do I find the Wireless Security Information in Windows?



If you need to contact your router manufacturer for assistance gathering the required information, refer to the following link to obtain contact information for common router manufacturers:

http://www.brother-usa.com/support/wireless/wireless_router_information.htm





PART II: Perform a factory reset on the printer network card



1.    Turn off the power switch on the right side of the printer.



2.    Hold down the GO button as you turn on the power switch. Keep the GO button pressed down until the Toner, Drum, and Error LEDs light up.  The Ready LED will be off.



3.    Release the GO button. Make sure that all the LEDs turn off.



4.    Press the GO button 6 times. The printer network card is now reset.





PART III: Enable the Wireless Network Card

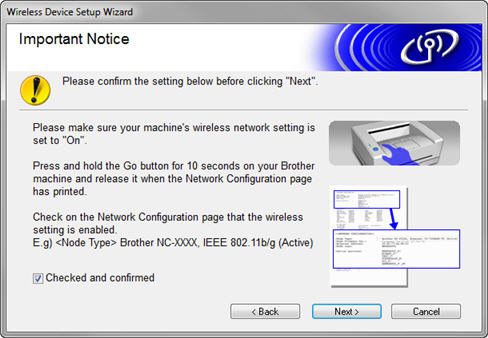

1.    Hold down the GO button for about 15 seconds.  Release the GO button when the printer prints the Network Configuration page.



2.    The text to the right of IEEE 802.11b/g in the Node Type section will indicate that the wireless network card is active or inactive.



-      Active means that the wireless setting is enabled.  Continue to PART IV.



-      Inactive means that the wireless setting is disabled.  Repeat STEP 1.







PART IV: Print out the Printer Settings pages to determine the IP Address



1.    Wait 1 minute. It is very important to wait 1 minute after the reset before continuing. If you do not wait at least 1 minute, the Brother machine may not have enough time to reset.



2.    Print the Network Configuration by pressing the GO button 3 times on the printer.  3 pages should print out.  If 4 pages print out, you will need to reset the printer network card and enable the wireless network card again, start again from STEP II.



3.    Locate the IP Address in the middle and the Comm. Mode and Name (SSID) near the bottom. Verify:



a.    IP Address of the printer is a 169.254.x.x number.





b.    Comm Mode is Ad-hoc.



c.    Name (SSID) is SETUP.





d.    If the IP Address is not a 169.254.x.x number, the Comm Modes is not Ad-hoc, and the Name (SSID) is not SETUP, you will need to reset the printer network card and enable the wireless network card again, start again from PART II.

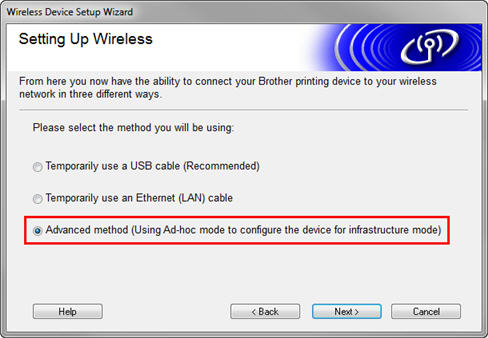

PART V: Communicate to the printer WITHOUT a network cable and configure the wireless settings

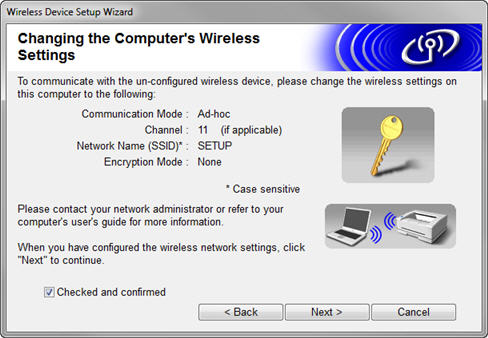

To communicate with the printer in Ad-hoc mode, the wireless computer needs to join the printer's SETUP network.



Refer to the following solution for instructions - How do I join my computer to the SETUP wireless network?



After connecting the computer to the SETUP network, continue to PART VI.





PART VI: Configure the Wireless Network Card



1.    Open a web browser.  An error message will appear informing you are not connected to the internet.



2.    Enter the IP Address of the printer into the web browser screen and press ENTER.  The Brother Web Management screen will appear.



NOTE: If the Brother Web Management screen does not appear, verify your computer is configured with the same network settings as the printer.





3.    Click on Network Configuration near the top of the screen.





4.    A login screen will appear.  Enter the following:



User name: admin

Password: access



Click OK.





5.    Click Configure Wireless.

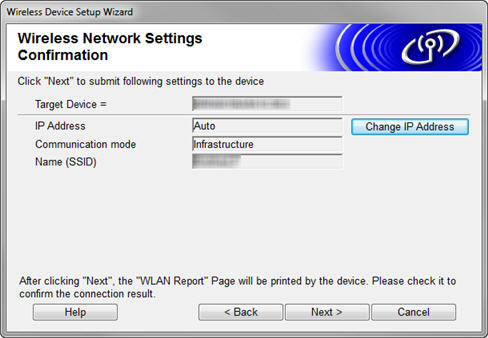

6.    Change the Communication Mode to Infrastructure.

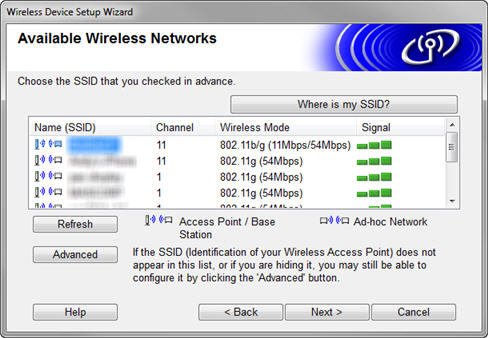

7.    Click BROWSE next to the Wireless Network Name (SSID). For the SSID, refer to the network settings information gathered in PART I.





8.    Select the appropriate Name (SSID) from the list and click OK. Refer to the network settings information gathered in PART I





9.    Leave the Channel setting as is.



10. Select the appropriate Authentication Method from the drop down list.  Refer to the network settings information gathered in PART I.





11. Select the appropriate Encryption Method.  Refer to the network settings information gathered in PART I.





NOTE: If WEP is selected as the Encryption Method, enter the hex code for the WEP Key 1.  There is no need to enter the Passphrase for WEP Encryption.



NOTE:  If an Authentication Method other than Open or Shared is selected, then a Passphrase must be entered on the Passphrase line.





12. Click Submit to update the printer with your wireless settings.





13. The computer will display a screen indicating the settings have been updated successfully.





14. The Wireless Network Card on the printer is now Active on the network.

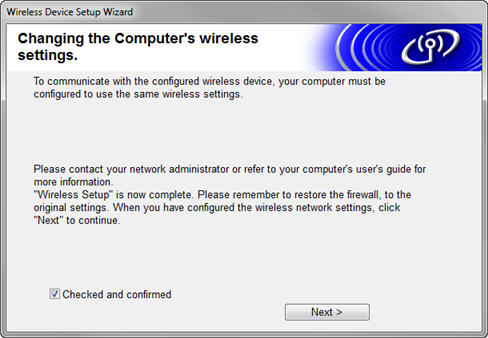

15. Switch your computer BACK to your wireless access point or wireless router, rather than the SETUP network. If you need assistance doing this, refer to the following solution, but you will select your original network instead of the SETUP network this time - How do I join my computer to the SETUP wireless network?



16. Verify the printer is now attached to the wireless access point or wireless router:



a.    Wait 1 minute. It is very important to wait 1 minute before continuing. If you do not wait at least 1 minute, the Brother machine may not have enough time to join the network and receive an IP address.



b.    Press the GO button 3 times to print the settings pages.



c.    Look at the last page printed. Locate the IP Address in the middle and confirm it is assigned via DHCP.



d.    Locate the Comm Mode near the bottom and confirm it is set to Infrastructure.



e.    Locate the Name (SSID) near the bottom and confirm it matches your access point or router.



f.     Locate the Wireless Link Status near the bottom and confirm it reads Link OK.



g.    The printer is now configured and is operating on your network.

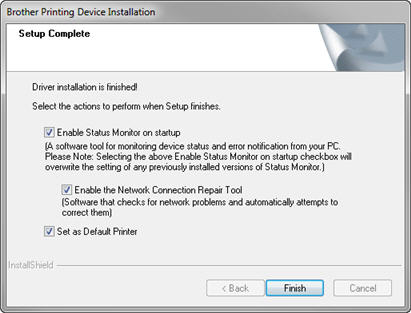

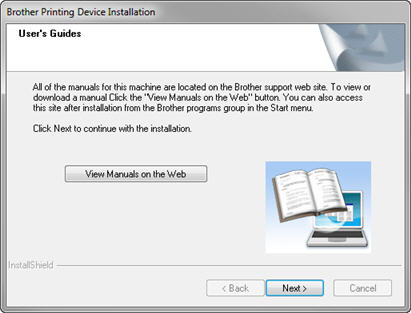

PART VII: Printer Driver Installation

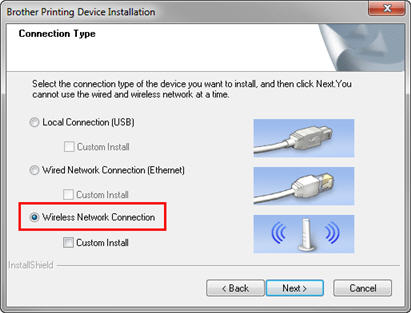

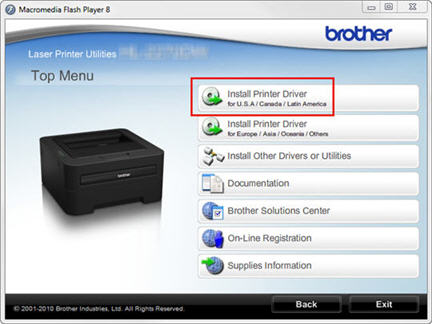

Refer to the following solution to install the printer driver.



The wired or wireless printer is connected to the network. How do I install the printer driver in Windows?
