Description of Problem 100000028300

How do I install the printer driver in Windows XP, Vista, 7, Server 2003, Server 2008, or Server 2008 R2 using the USB interface?


Description of Solution 200000036268

1.  Ensure that you are logged on to your computer with Administrator rights.



2.  Close any applications running before installing the printer driver.



3.  Turn off the Brother machine and make sure the USB interface cable is NOT connected before attempting to install. If you have already connected the cable, disconnect it.



4.  If you have the supplied CD-ROM, verify the CD-ROM lists the operating system installed on your computer.



-  If the operating system installed on your computer is listed on the CD-ROM, go to STEP 8.



-  If you do not have the supplied CD-ROM or the operating system installed on your computer is not listed on the CD-ROM, you will need to download the software from the Brother web site. Continue to STEP 5.



5.  For instructions on how to navigate the Brother website to download the software, please click here



6.  Open the temporary folder you save the downloaded file to and double click on the downloaded file.



7.  Choose your Country/Language and click OK.  Go to STEP 10.



WARNING:  US English speakers should select USA, not ENG.







8.  Put the supplied CD-ROM into your CD-ROM drive. If the model name screen appears, choose your machine. If the language screen appears, choose your language.



NOTE:  If the CD does not automatically run, browse to (My) Computer and then double click on the Brother icon to run the CD.

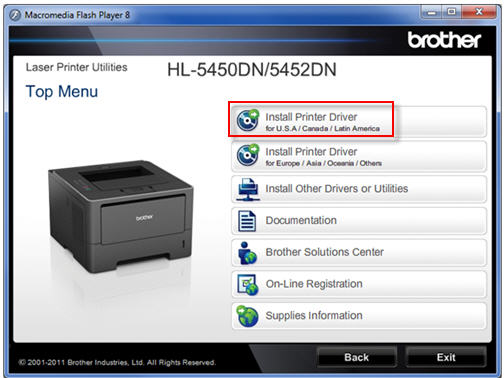

9.  The CD-ROM main menu will appear. Click Install Printer Driver (for U.S.A. / Canada / Latin America.







NOTE:  For Windows Vista and 7 users, when the User Account Control screen appears, click Allow or Yes.



10.  After reading and accepting the License Agreement, click Yes if you agree to the terms.

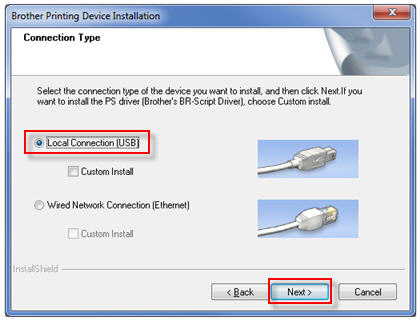

11.  Choose Local Connection (USB) and click NEXT.

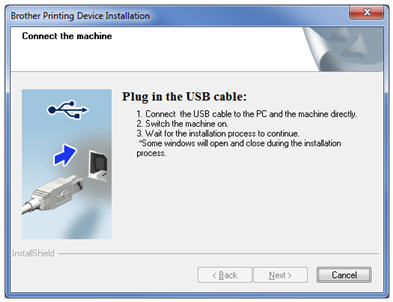

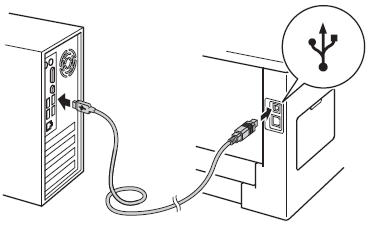

12.  When prompted, connect the USB cable to the USB port on the back of the Brother machine and then connect the cable to a USB port on your computer.





WARNING: Make sure you connect the cable to the USB port, not the LAN Ethernet port.



NOTE:  Brother recommends you use a type A/B USB cable that is no longer than 6 feet directly connected from the machine to your computer.  Other cable configurations may work, but connection loss is common.





13. Turn the Brother machine on.



14. The installation will continue automatically and the screens will appear one after another.  Please wait. It will take a few moments for all the screens to appear. Do not try to cancel any of the screens during this installation.

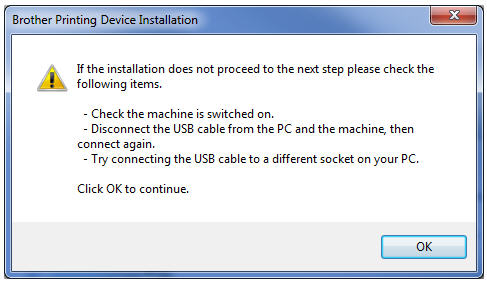

NOTE: If the installation does not automatically continue after connecting the USB cable, check the following and click OK.



- Check the Brother machine is powered on and there are no error indications on the LEDs.



- Disconnect the USB cable from the Brother machine and computer and reconnect the cable.



- Make sure you are connecting the USB cable to the USB port on the back of the Brother machine. The USB port is the top port. Do not connect the USB cable to the LAN/Ethernet port, which is the lower port.



- Try another USB port on the computer.



- Try another USB cable.

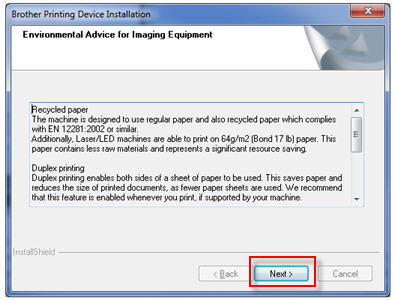

15.  The next window may take a few moments to appear. Environmental advice will be displayed, please read the information and click Next.

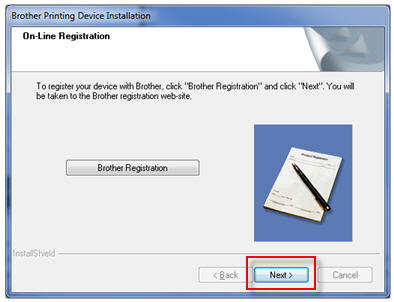

16.  When the On-Line Registration screen is displayed, you can click Brother Registration and follow the on-screen instructions.  Once you have completed the registration or if you have already registered your Brother machine, click Next.

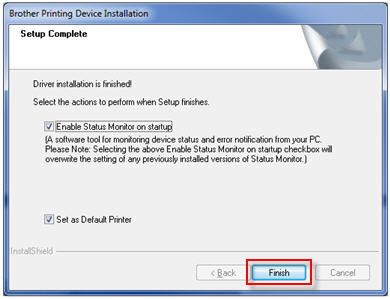

17.   When the "Setup Complete" window appears, make the following selections, and then click Finish:



-  You may select Enable Status Monitor on Startup, which is a software tool for monitoring device status and error notification from your PC.



-  You may select to Set as Default Printer.

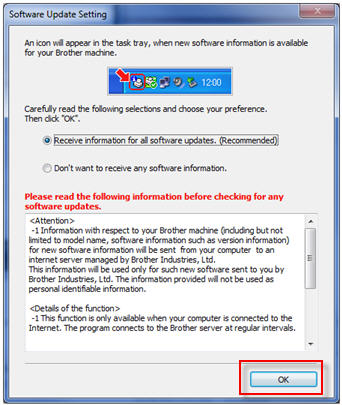

18.  You will be prompted to select an option for firmware update notification.  Make your selection and click OK.



NOTE: Internet access is required for any firmware upgrades.
