printing from your PC can occur for various reasons. The most common
reason a Brother machine may stop printing, is because the connection between
the computer and the Brother machine is lost. This can occur as a result
of wrong settings or configuration on the printer driver. There are
several basic troubleshooting steps you can take to resolve this
1: VERIFY THE STATUS OF THE BROTHER MACHINE
Make sure that the Brother machine is turned on.
Check the LCD screen for any error messages. An example would be "Paper
Jam" or "Ink/Toner Empty". If the LCD screen shows an error, troubleshoot
to clear the particular problem.
2: VERIFY THE CONNECTION OF THE BROTHER MACHINE AND COMPUTER
and then reconnect the USB cable from the computer and the Brother
machine. Make sure the interface cable has a secure connection to both the
Brother machine and your computer. If you are using a USB hub, remove it
and connect directly to the computer.
We recommend that the USB cable supports the following
A/B 1.1 or 2.0 that is 6 feet (2 meters) or less.
that the cable is connected to the USB port on the machine and not a Network
port, Line Jack, Ext Jack, PictBridge port, or any port other than the USB
Cycle the power to the Brother machine for about 15 seconds.
3: VERIFY THAT THE PRINTER DRIVER IS INSTALLED
1. Open the Printer
(Settings) => Control Panel => Printers (and Faxes)
Start => Control
Panel => Printers and Other Hardware => View Installed
=> Control Panel => Hardware and Sound => Printers.
Verify that the Brother printer in the list. If the Brother printer is
listed, continue to PART 4.
If the Brother printer is not listed, the driver may not be installed
properly. Refer to PART 8.
VERIFY THAT THE BROTHER PRINTER IS SET AS DEFAULT
that the Brother printer is set as default. This is especially important
if you use the print icon to print from within applications. If the
Brother printer is set as the default printer, it will have a check mark in
front of the icon.
set your Brother machine as the default printer, right click on the
Brother "Printer Driver" and select Set As Default
5: VERIFY THAT THE PRINTER STATUS IS READY AND THE PRINT QUEUE IS
While in the Printer's folder, locate the Brother printer in the list and hover
your mouse over the Brother printer icon. Below is an example of what you
Status: Ready (Could also state: OFFLINE or PAUSED)
0 (Could be any number)
there are any documents waiting in the queue, right-click on the Brother printer
and select Cancel All Documents. This should clear the
If the status states: Use Printer Offline, right-click on the Brother
printer and uncheck Use Printer Offline or select Use Printer
Online depending on your operating system.
If this is not an option, continue troubleshooting.
If the status states: Paused, right-click on the Brother printer and
uncheck Pause Printing or select Resume Printing. This
should allow the printer to resume printing.
6: ATTEMPT A TEST PRINT
Right-click on your Brother driver and select Properties.
the General Tab, click the PRINT TEST PAGE button.
the test page prints, then your issue is resolved.
the test page does not print, close the Printer Properties window and
delete the job from the queue by right-clicking on the printer and selecting
Cancel All Documents.
7: VERIFY PRINTER PORT SETTINGS
1. While in the
Printer's folder, right-click on your Brother "Printer Driver" and select

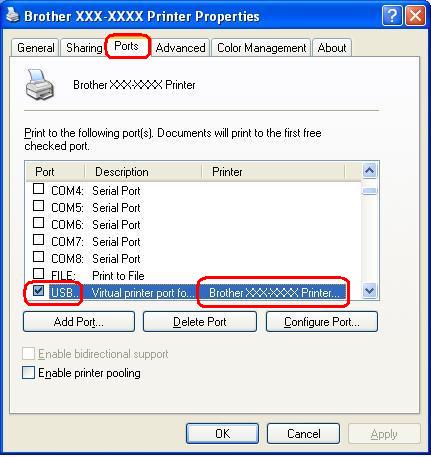

2. Click on the
Ports Tab and verify the port that is selected for your machine. If
it is not set for the correct port, change it to the correct port. The
port should be USB00x. (x is a number).
a. If there are
multiple USB Virtual Ports, you may have to test each one to determine which
will allow the machine to print. After any failed attempts, clear the
print queue and try a different port. If you still can't print, continue
b. If there are no
USB Virtual Ports to select, then either there is no communication between the
Brother Machine and the computer or there is a problem with the computer's
Verify the USB
cable is connected properly, try multiple ports on the computer, and try another
known working cable.
If you still do not
have a USB virtual port available, try connecting the machine to another
computer. If the machine works on a second computer, then the issue is
with the original computer's Operating System not properly loading the USB
controllers. Contact your computer manufacturer for further
Do not attempt to create a local port. The correct ports should be
automatically created by the Operating System.
REINSTALL THE BROTHER DRIVERS
Please close all applications before running
the Repair MFL-Pro Suite.
1. The machine must be turned ON and the
interface cable must be connected to run the repair. Turn on your computer
and log on with Administrator rights.
2. Insert the supplied CD for your Operating
System into your CD drive. If the language screen appears, select your
language. If you are not prompted with the language screen, go to
My Computer, then double click on the MFL-PRO icon.
The CD-ROM main menu will appear. Click Advanced => Repair MFL-Pro
When the software prompts to turn off machine and disconnect the USB connection,
do so, then click Yes.
Select Local Connection (USB), and then click NEXT. The
installation will continue.
When prompted to connect
the cable, connect the USB cable to the USB port on the back of the Brother
machine and to an available USB port on your computer
Brother recommends you use a type A/B USB cable that is no longer than 6 feet
directly connected from the machine to your computer. Other cable
configurations may work, but connection loss is common.
Turn the Brother machine on. The installation should automatically
installation will continue automatically and the screens will appear one after
another. Please wait. It will take a few moments for all the screens to
appear. Do not try to cancel any of the screens during this installation.
Windows Security screen appears, click the check box and click Install to
complete the installation correctly.
9. If you receive
the Environmental Advice for Imaging Equipment screen, click NEXT
to continue the installation.
10. When the
On-Line Registration screen is displayed, make your selection and follow the

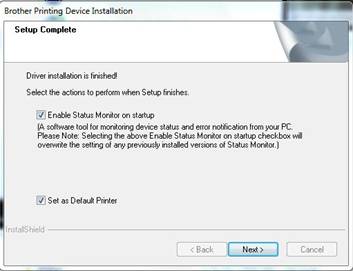

11. When the
Setup Complete window appears, you may enable (check) or disable
(uncheck) any of the following settings as desired and then click NEXT to
continue the installation:
Monitor on Startup.
Set as Default

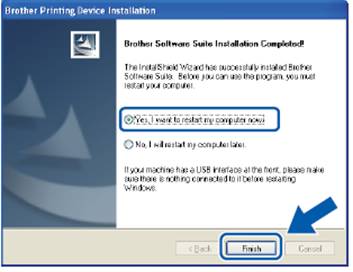

Select Yes, I want to restart my computer now. Click
Finish. After restarting the computer, you must log on with
13. When the
computer restarts, the following screens will appear:
Software Update Setting screen appears, choose the software update
setting you wan and click OK.
If the Brother
Product Research & Support Program starts up, follow the on-screen
instructions if you would like to participate.
access is required for the software update and the Brother Product Research
& Support Program.
Attempt to print again.
you can print, then the issue is resolved.
you are still unable to print, try a different USB cable within the recommended
specs or a different port on the computer to determine if the issue is with the
interface, or try connecting and printing from another computer to determine if
the issue is specific to this computer's operating system.
