Description of Problem 100000029043

How do I clear the message "No Paper Fed" from the display?


Description of Solution 200000037288

NOTE:  The images shown below are from the representative product. Your model may look different from the picture.

1. You will need to use letter size paper for troubleshooting purposes only.



- If you have letter size plain copy paper in the paper tray, go to STEP 3.



- If you have a size paper other than letter size in the paper tray, go to STEP 2.



2. Insert letter size paper in the paper tray by following the steps listed below:



a. Remove the paper tray (1) from the machine.

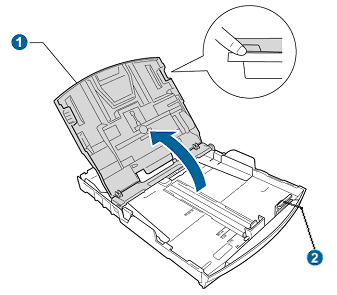

b. Lift the Output Paper Tray Cover (1) and remove the other size paper from the tray.  Press and hold the green universal guide release (2) and push the front of the paper tray towards the back of the tray.   This will collapse the tray.

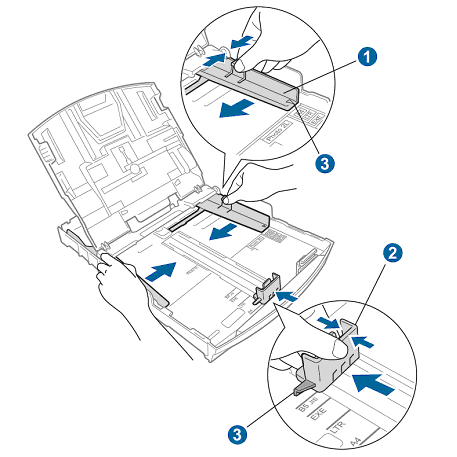

c. Adjust the paper width (1) and length (2) guides to fit letter size paper (LTR). The pointers (3) should line up with the indicator marks on the tray.

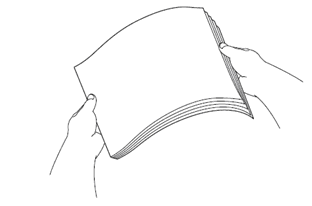

d. Fan the stack of paper well to avoid paper jams and miss-feeds.





-The paper must be uniformly stacked (same size, type and weight)



-Do not use paper that is damaged, curled, wrinkled, irregularly shaped, extremely shiny, highly textured, or paper that was previously printed by a printer.



-Be sure to follow the paper specifications and paper tray capacity information listed below.



Plain Copy Paper (17lb to 32lb) = Up to 100 sheets of letter size



- Be careful NOT to overfill the tray. Doing so may cause miss-feeds or paper jams and could damage your machine.



e. Gently insert the paper into the paper tray. Be careful not to push the paper too far into the tray.  The paper must be completely flat in the paper tray or feed problems may occur.





f. Close the output paper tray cover (1).





g. Reinstall the paper tray by slowly pushing the tray all the way in.  You should hear a slight snap or click once the tray is seated properly.

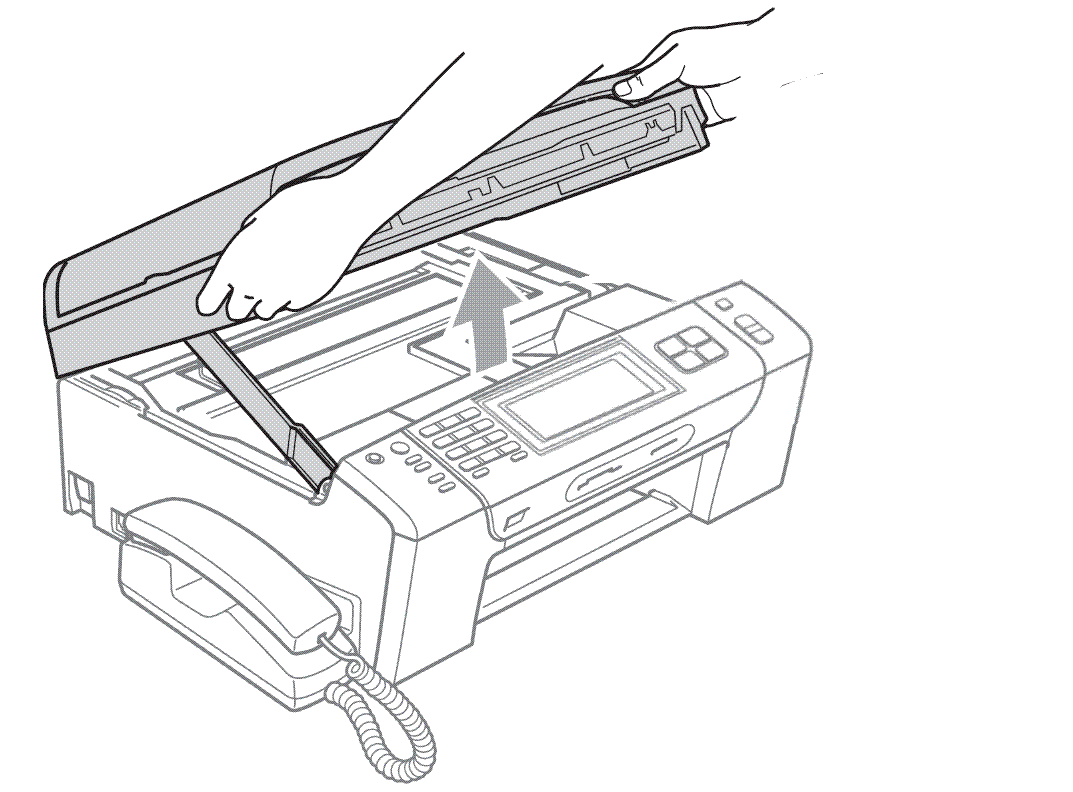

3. Raise the flatbed unit (1) until the LCD displays COVER IS OPEN. Close the flatbed to reset the machine.









4. Test the machine by printing the Print Quality Check Sheet (PQCS).



a. Press the MENU key.



b. Display will show 1.INK. Press OK.



c. Display will show 1. Test Print. Press OK.



d. Display will show  Print Quality. Press OK



e. Press COLOR START.  The machine will print out the Print Quality Check Sheet.



- If NO PAPER FED continues to appear on the display, continue to STEP 5.



- If a different message is displayed on the LCD, refer to the solution for the specific message being displayed.



- If the page prints correctly and ejects completely from the machine, the issue is resolved. Press the UP ARROW key and STOP/EXIT to return to the standby mode.



5. Verify the paper tray is installed correctly.



a. Apply a slight amount of force to the center of the paper tray and try to push it into the machine. The front corner edges of the paper tray should be even with the sides of the machine.



b. On the front right side of the machine is the ink cartridge cover.  Using the left side edge of the cover as a reference point, determine if the paper tray is installed correctly.  See the picture below.  The red line indicates the left side edge of the ink cartridge cover.









-  If the edge on the right side of the paper tray is sticking out further than the edge of the ink cartridge cover (see Photo 1 below) go to STEP 6.



- If the edge on the right side of the paper tray is pushed in past the edge of the ink cartridge cover (see Photo 2 below), continue to STEP 17.



NOTE:

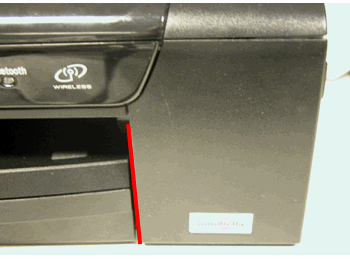

-  The red line indicates the left side edge of the ink cartridge cover.



-  The red arrow indicates the paper tray.

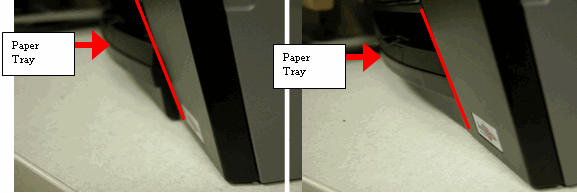

   Photo 1:                                                     Photo 2:

   Tray not in correct position                   Tray is in the correct position

   side view                                                   side view



6. Turn the Brother machine around and open the Jam Clear Cover (1) at the back of the machine by lifting the handle at the center.





7. After opening the jam clear cover, the paper should be visible, lying inside the tray.



Photo 1: Paper Visible in Tray



8. Check to see if the wire is caught on the PE actuator, if the wire is broken, if the PE actuator is dislodged or missing or if the rollers are touching the paper.



(NOTE:  The PE actuator is the plastic white piece between the two gray rollers.)

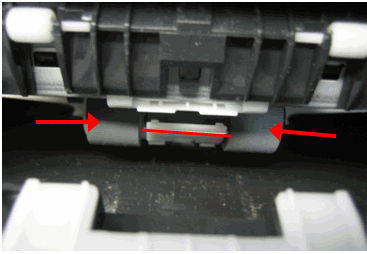

 Photo 1: Wire Caught on PE Actuator

-  The arrows are pointing to the gray rollers

-  The red line is the location of the wire when caught

-  The wire and PE actuator are stuck together

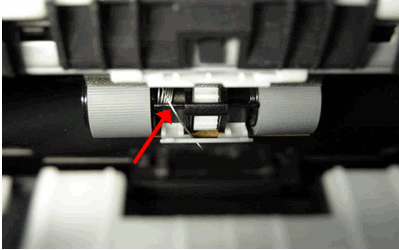

Photo 2: Wire Broken

- The arrow is pointing at the broken wire







Photo 3: Broken or missing white

PE actuator

-  The red arrow is pointing at the

broken white PE actuator

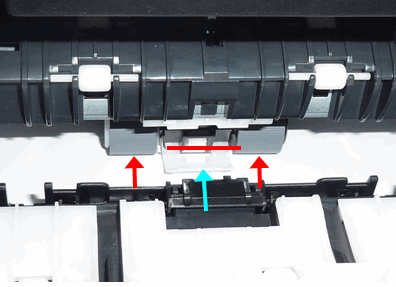

Photo 4: Wire and white PE actuator

In correct position

- The red arrow is showing the gray rollers

touching the paper.

- The red line is the wire in the correct

position not caught on the white PE actuator





-        If the machine matches Photo 1, 2 or 3, proceed to the WARRANTY AND SERVICE OPTIONS below.



-        If the wire, PE actuator and rollers match Photo 4, close the jam clear cover and continue to STEP 9.





9. Remove the paper tray (1) from the machine.

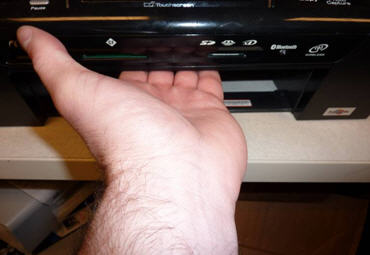

10. Place one of your hands under the LCD display and into the opening where the paper tray was installed.

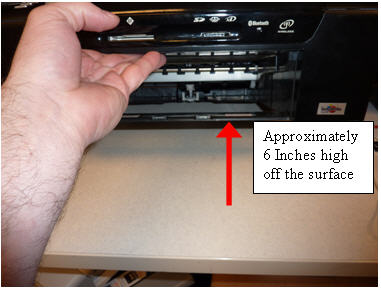

11. Using your hand, lift the front of the machine approximately 6 inches off the surface.





 12. Look inside the back of the machine and remove any debris (paper scrap, paper clip, pen cap etc.) that may be preventing the tray from being pushed in.  Also make sure the machine is on a flat smooth surface and not on top of a table cloth or wires.



NOTE:  If it is difficult to see inside the machine, use a light source, like a flash light, for better lighting.



-  If debris is found, remove the debris and continue to STEP 13.



-  If no debris is found, check to see if the PE Actuator is broken.  The PE actuator is the plastic white goal post object. See pictures below.







Photo 1: PE Actuator in Correct Position



Photo 2: PE Actuator Broken



-  If the PE actuator matches Photo 1 and is in the correct position, go to STEP 13.



-  If the PE actuator matches Photo 2 broken or dislodged, refer to WARRANTY AND SERVICE OPTIONS below.



13. Reinstall the paper tray by slowly pushing the tray all the way in, you should hear a slight snap or click once the tray is seated properly.  Check to see if the paper tray is all the way in.




















Photo 1:                                                           Photo 2:

Tray not in correct position side view      Tray is in the correct position side view



-  If the paper tray is now in all the way and matches Photo 2, go to STEP 14.



-  If the paper tray edge is still sticking out further than the ink door edge, then go to WARRANTY AND SERVICE OPTIONS below.



14. Clean the pickup rollers by doing the following:



NOTE: To clean the rollers you will need a dry cloth and a cloth dampened with water.



a. Remove the paper tray (1) from the machine.



b. Place one of your hands under the LCD display and into the opening where the paper tray was installed.





c. Using your hand, lift the machine approximately 6 inches off the surface.







d. While holding the machine in the air, slide your other hand under the machine to clean the 2 gray pickup rollers.



-        Using a damp cloth, clean one of the pickup rollers.  The rollers spin freely in one direction so be sure to clean the entire surface aggressively with damp cloth.



-        After cleaning the first roller, clean the other roller.  (See photos below.)



























e. Use the dry cloth to dry off both rollers to ensure the rollers are dry.



f. Gently lay the machine back onto the surface.



g. Put the paper tray back into the machine.





h. Raise the flatbed unit (1) until the LCD displays COVER IS OPEN.  Close the flatbed to reset the machine.





15. Test the machine by printing the Print Quality Check Sheet.



a. Press the MENU key.



b. Display will show 1.INK. Press OK.



c. Display will show 1. Test Print. Press OK.



d. Display will show Print Quality. Press OK



e. Press COLOR START.  The machine will print out the Print Quality Check Sheet.



- If the page prints, ejects completely from the machine and the print quality is good, the issue is resolved. Press UP ARROW key and STOP/EXIT to return to standby mode.



- If NO PAPER FED continues to appear on the LCD and you have NOT adjusted the paper in the paper tray, go to STEP 16.



- If NO PAPER FED continues to appear on the LCD and you fanned and inserted paper into the paper tray in STEP 2, go to STEP 18.



- If a different message is displayed on the LCD, refer to the solution for the specific message being displayed.



16. Verify the paper is installed correctly in the paper tray:



a. Remove the paper tray (1) from the machine.





b. Lift the Photo Bypass Tray Cover.





c. Adjust the paper width (1) and length (2) guides to fit letter size paper (LTR). The pointers (3) should line up with the indicator marks on the tray.





d. Fan the stack of paper well to avoid paper jams and miss-feeds.



-The paper must be uniformly stacked (same size, type and weight)



-Do not use paper that is damaged, curled, wrinkled, irregularly shaped, extremely shiny, highly textured, or paper that was previously printed by a printer.



-Be sure to follow the paper specifications and paper tray capacity information listed below.



Plain Copy Paper (17lb to 32lb) = Up to 100 sheets of letter size



- Be careful NOT to overfill the tray. Doing so may cause miss-feeds or paper jams and could damage your machine.



e. Gently insert the paper into the paper tray. The paper must be completely flat in the paper tray or feed issues may occur. Be careful not to push the paper too far into the tray.



f. Close the paper tray cover (1).





g. Reinstall the paper tray by slowly pushing the tray all the way into the machine. You should hear a slight snap or click once the tray is seated properly.



h. Raise the flatbed unit (1) until the LCD displays COVER IS OPEN. Close the flatbed to reset the machine.







17. Test the machine by printing the Print Quality Check Sheet.



a. Press the MENU key.



b. Display will show 1.INK. Press OK.



c. Display will show 1. Test Print. Press OK.



d. Display will show Print Quality. Press OK



e. Press COLOR START.  The machine will print out the Print Quality Check Sheet.



- If the page prints, ejects completely from the machine and the print quality is good, the issue is resolved. Press UP ARROW key and STOP/EXIT to return to standby mode.



- If you already replaced the paper into the paper tray and NO PAPER FED continues to appear, proceed to WARRANTY AND SERVICE OPTIONS below.



- If a different message is displayed on the LCD refer to the solution for the specific message being displayed.



- If NO PAPER FED continues to appear on the LCD and you have NOT replaced the paper in the paper tray, go to STEP 18.



18. The paper in the paper tray must be replaced with a new batch of letter size paper.  See STEP 16 for instructions on loading paper in the paper tray correctly. If the problem continues after replacing the paper refer to WARRANTY AND SERVICE OPTIONS below.







WARRANTY AND SERVICE OPTIONS:



If the problem continues and your machine is within warranty, you can locate a Brother Authorized Service Center (ASC) in your area by clicking on the link below:

http://www.brother-usa.com/service/default.aspx or contact Brother Customer Service by calling 1-877-Brother (1-877-276-8437) Monday through Friday, excluding holidays.



If your machine is out of warranty, you can locate a Brother Authorized Service Center using the information listed above.
