Description of Problem 100000029185
How do I install the Brother MFL-Pro suite from the CD in Windows XP, Vista
or 7 using the USB interface?Description of Solution 200000037511
connect your Brother machine to your computer using a USB interface follow the
steps listed below:
that you are logged on to your computer with Administrator rights.
2. Close any
applications running before installing the MFL-Pro Suite.
3. Ensure the
machine is powered off and the interface cable is disconnected before attempting
to install. For applicable models, ensure there is no USB flash drive
inserted in the machine.
4. Insert the
software CD that is compatible for your Operating System into your CD-ROM drive.
If the model name screen appears, choose your machine. If the language screen
appears, choose your language.
If the CD does not automatically run, double click on My Computer on your
desktop, or click Start => Computer. Then double click on the
Brother MFL-Pro Suite icon to run the CD.

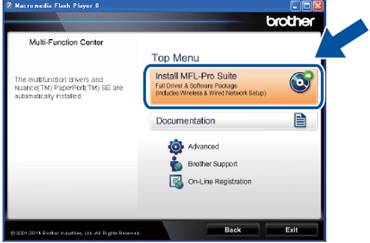

The CD-ROM main menu will appear. Click Install MFL-Pro Suite.
After reading the ScanSoft PaperPort SE License Agreement, click YES if
you agree to the terms.
The installation of PaperPort SE will automatically start and is followed by the
installation of MFL-Pro Suite.
When the Brother MFL-Pro Suite Software License Agreement window appears, click
YES if you agree to the Software License Agreement.
Choose Standard and then click NEXT.
When prompted to connect
the cable, connect the USB cable to the USB port on the back of the Brother
machine and to an available USB port on your computer
Brother recommends you use a type A/B USB cable that is no longer than 6 feet
directly connected from the machine to your computer. Other cable
configurations may work, but connection loss is common.
Turn the Brother machine on. The installation should automatically
installation will continue automatically and the screens will appear one after
another. Please wait. It will take a few moments for all the screens to
appear. Do not try to cancel any of the screens during this installation.
Windows Security screen appears, click the check box and click Install to
complete the installation correctly.
13. If you receive
the Environmental Advice for Imaging Equipment screen, click NEXT
to continue the installation.
14. When the
On-Line Registration screen is displayed, make your selection and follow the

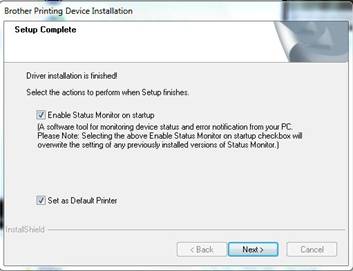

15. When the
Setup Complete window appears, you may enable (check) or disable
(uncheck) any of the following settings as desired and then click NEXT to
continue the installation:
Monitor on Startup.
Set as Default

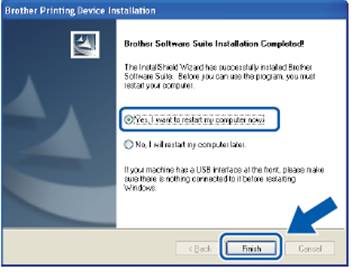

Select Yes, I want to restart my computer now. Click
Finish. After restarting the computer, you must log on with
17. When the
computer restarts, the following screens will appear:
Software Update Setting screen appears, choose the software update
setting you wan and click OK.
If the Brother
Product Research & Support Program starts up, follow the on-screen
instructions if you would like to participate.
access is required for the software update and the Brother Product Research
& Support Program.
