Description of Problem 100000029492
Why is the tape jamming inside the machine?Description of Solution 200000037900
1. Open the back
cover and remove the cassette tape from the machine. Ensure the end of the
tape is fed under the tape guide at cassette tape corner. If not, it will feed
out in the wrong direction and cause the tape to jam. You can attempt to
reinsert the tape under the tape guide. The clear and color ink ribbons
need to be in under a separate tape guide.
Normally the color ink ribbon (behind the clear film ribbon) goes back into the
cassette. If it attaches to the backing tape (went between the clear
and backing tapes), then the cassette tape needs to be replaced.
a label is printed, do not pull on the label; the label must be cut from
cassette tape. If not, the cassette tape can be damaged and cause the next
label to jam inside the machine.
cutter could cause the same problem. The label is not cut off completely
from the cassette tape and when pulled, it causes the color ink ribbon to attach
to the tape backing, causing the next label to jam inside the
2. Check the
area by the two black rollers and the tape exit area, remove any pieces of label
or foreign objects that may be stuck inside the machine.

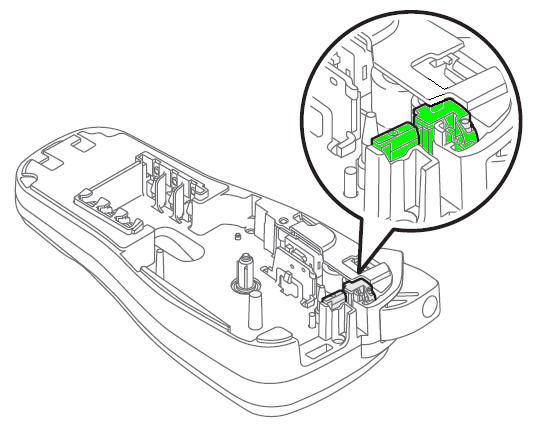

3. Ensure the
Cutter unit is in place. The Cutter unit consists of the two green plastic
parts by the tape exit slot; if missing, it could cause the tape to feed out in
the wrong direction and jam.
4. Reinstall the
cassette tape and close the back cover. Ensure the cutter lever is not jammed.
Press down on the cutter lever and then release the lever. The cutter
lever should move about a 3/4-inch. When the lever is released, it should spring
back up to the initial position.
cutter lever will not move if the back cover is not fully closed.
a. If the cutter
lever jams, try removing the Cutter unit and reinstalling it back into the
machine. The Cutter should go straight down into the machine, do not twist
the cutter when pushing it into the machine.
cassette tape, close the back cover, and check the movement of the lever
again. If the problem persists, your machine may require
b. If the cutter
lever moves freely, print out a test label.
5. Try another
cassette tape and print out a test label.
If the problem
persists, your machine may require service.
The machine has a
one year limited exchange warranty. If the machine is in warranty, call Brother
Customer Service at 1-877-Brother (1-877-276-8437) for warranty
If the machine is
out of warranty, contact a Brother Authorized Service Center for repair by
clicking on the link below:
