Description of Problem 100000029619

How do I clean the separation Pad?


Description of Solution 200000038072

Please follow the steps below to clean the Separation Pad.

  1. Unplug the machine from the AC power outlet (electrical socket).
  2. Open the Top Cover (1) by lifting the bottom edge of the cover and the Front Cover (2) by pulling the Cover Release Lever (3) toward you.



  1. Press the tab on each side of the Separation Pad cover toward the center of the cover (1) on the inside of the Front Cover and then pull the Separation Pad Cover (2) open.

Caution: DO NOT touch the metal part of the Separation Pad Cover. Doing this may cause injury to you and serious damage to the machine.





  1. Press the tab on each side of the Separation Pad toward the center of the pad assembly (1) and then pull the Separation Pad (2) upward.

  1. Clean the Separation Pad with a lint-free cloth moistened with a nonflammable glass cleaner.

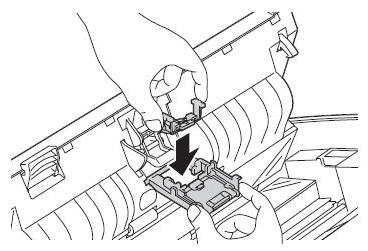

  1. Attach the cleaned Separation Pad into the Separation Pad Cover while supporting the cover.



  1. Close the Separation Pad Cover until it clicks.
  2. Close the Front Cover and the Top Cover.
  3. Plug the power cord back into the AC power outlet (electrical socket).
