Description of Problem 100000031102

The printed pages are faint, light, blurry or faded. How do I improve print quality?


Description of Solution 200000039981

If the colors on printed documents are too light, blurry, faint or not as bright as expected, there are many different things you can try to resolve the issue.  Follow the steps listed below:



1.  Verify toner save mode is turned OFF. When you set the toner save feature to On, print appears lighter.



a.  Press the UP or DOWN ARROW key to select General Setup. Press the OK key.



b.  Press the UP or DOWN ARROW key to select Ecology. Press the OK key.



c.  Press the UP or DOWN ARROW key to select Toner Save. Press the OK key.



d.  Press the UP or DOWN ARROW key to select Off. Press the OK key.



e.  Press the CANCEL key to exit the menu.



2.  Print a test print.



a. Press the UP OR DOWN ARROW key to select Machine Info. Press the OK key.



b. Press the UP OR DOWN ARROW key to select Test Print. Press the OK key to print the Test Print.



c. Press the CANCEL key to exit the menu.



-   If the print quality is acceptable, the issue is resolved.



-  If the print quality is still unacceptable, continue to the next step.



3.  The output density for each color may vary depending on the machine's environment, temperature, and humidity. Calibration and registration helps improve the color density and quality.



a.  Press the UP or DOWN ARROW key to select Color Correction. Press the OK key.



b.  Press the UP or DOWN ARROW key to select Color Calibration. Press the OK key.



c.  Press the OK key to select Calibrate.



d.  Press the UP ARROW key to select Yes.



e.  When the message "Please Wait" is no longer displayed, press the BACK key to return to the Color Calibration menu.



f.   Press the UP or DOWN ARROW key to select Auto Regist. Press the OK key.



g.  Press the OK key to select Registration.



h.  Press the UP ARROW key to select Yes.



i.  When the message "Please Wait" is no longer displayed, press the CANCEL key to exit the menu.



The machine is now calibrated internally to factory defaults and will print at its best color combination.



4.  Print a test print.



a. Press the UP OR DOWN ARROW key to select Machine Info. Press the OK key.



b. Press the UP OR DOWN ARROW key to select Test Print. Press the OK key to print the Test Print.



c. Press the CANCEL key to exit the menu.



-  If the print quality is acceptable, the issue is resolved.



-  If the print quality is still unacceptable, continue to the next step.



5.  Verify the toner cartridges are installed in correct slots.



a.  Fully open the top cover by lifting up on the handle.

NOTE: Failure to completely open the top cover when removing and installing consumables may cause severe damage to the machine. The top cover is completely open when the cover locks in place and does not require support from the user.

b. Verify the toner cartridge color matches the same color label on the left side of the drum unit. The first slot should contain Yellow (Y), the second slot should contain Magenta (M), the third slot should contain Cyan (C), and the fourth slot should contain Black (K).



c. If any of the toner cartridges are not in the correct slot, remove the toner cartridge by grasping the handle and pulling it straight up and re-install it in the correct slot.



d. Once the toner cartridges are in the correct slots, close the top cover.



6.  Print a test print.



a. Press the UP OR DOWN ARROW key to select Machine Info. Press the OK key.



b. Press the UP OR DOWN ARROW key to select Test Print. Press the OK key to print the Test Print.



c. Press the CANCEL key to exit the menu.



-  If the print quality is acceptable, the issue is resolved.



-  If the print quality is still unacceptable, continue to the next step.



7. Run color calibration in the printer driver. Follow the instructions for your operating system.



Windows

Macintosh





Windows



a. Open the Printers folder.



Windows 8 or Server 2012:



- Move your mouse to the lower left corner of the Desktop or Start screen => Right-click the screen and then left-click Control Panel => Hardware and Sound=> View Devices and Printers.



Windows 7 or Server 2008 R2:



- Click Start => Device and Printers

or

- Click Start => Control Panel => Hardware and Sound => Devices and Printers



Windows Vista or Server 2008:



-  Click Start => Control Panel => Hardware and Sound => Printers



Windows XP or Server 2003:



- Click Start => Printers and Faxes

or

- Click Start => (Settings) => Control Panel => Printers (and Faxes)

or

- Click Start => Control Panel => Printers and Other Hardware => View Installed Printers



b. Right mouse click on the Brother machine and select Printing Preferences from the list.

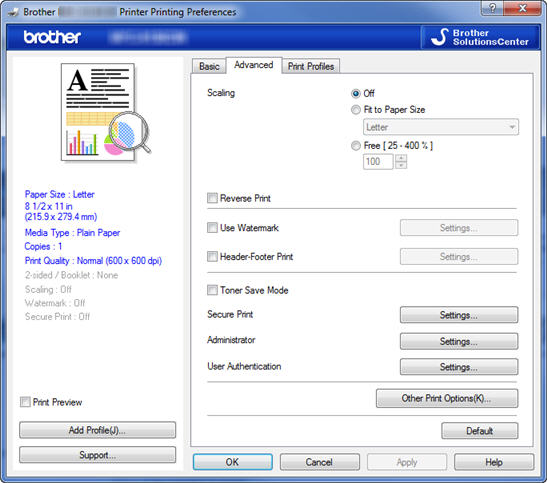

c. Click on the Advanced tab and make sure that Toner Save Mode box is unchecked.

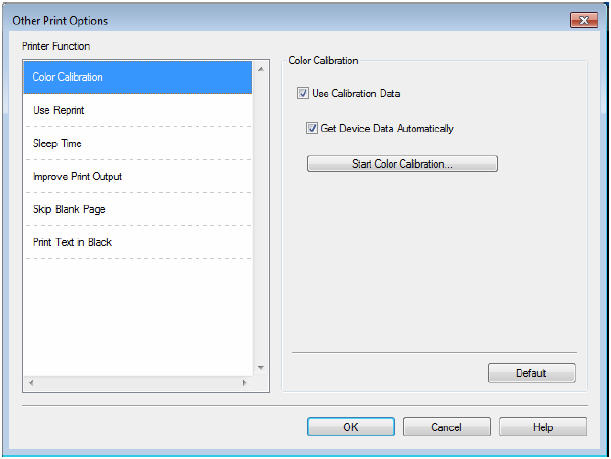

d. Click the Other Print Options button.





e. Make sure the Use Calibration Data checkbox and Get Device Data Automatically checkbox are checked.



NOTE: Only when the latest calibration data is available, the Use Calibration data checkbox will be checked.



f. Click the Start Color Calibration button.



g. The Color Calibration window appears. Read the message and click OK. The printer starts color calibration and then the printer driver attempt to get the calibration data from the printer.



h. Once calibration is completed, click OK and then click OK to close the Other print options window.



i. Click Apply and OK to close Printing Preferences window. Click OK to close printer driver Properties window. At this point the machine is printing at its best color combination possible.



k. Go to STEP 8.





Macintosh

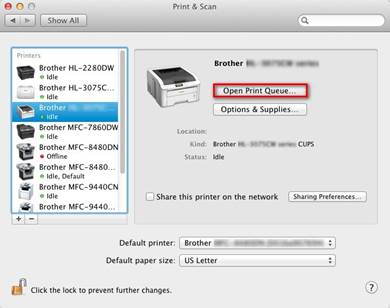

a. For Macintosh OS 10.7 - 10.8: Click on the Apple => System Preferences => Print & Scan.



For Macintosh OS 10.6.8: Click on the Apple => System Preferences => Print & Fax.



b. Select your machine model name. Make sure your model name is chosen in Selected Printer section.



c.  Click the Open Print Queue button.





d.  Click the Printer Setup icon => Utility tab => Open Printer Utility button. Now the status monitor is activated.



e.  From the menu bar, click Control => Color Calibration => OK.



f. The printer driver will collect the latest color calibration data from your Brother machine. After getting the data, the Status monitor will close automatically and the latest color calibration data is effective.



8. Print a document from your computer.



- If the print quality of the document that you printed from the computer is good, the issue is resolved.



- If the colors are still not printing correctly, continue to the next step.



9. Check the settings within the application you are using. It may have options to adjust the color. Certain programs have their own settings that could potentially override the machine settings, which will affect color matching. If the problem persists contact your program or software vendor for assistance.



10. Make adjustments to the printer driver. The printer driver provides a host of adjustments that can be made to resolution, hue, color, saturation, etc. This is usually accessed from the File => Print option when you are about to print a document. The printer driver usually has a properties, preferences, or setup button that provides access to these adjustments. The exact location varies with the application being used. You may need to consult your application documentation for details.



11. Change the color profile settings of the printer driver. The color profile is used by the operating system and the machine to create the best possible match between the image on the computer screen and the image that is printed. Again, the location varies with the operating system that is used. You may need to consult the operating system documentation for details.



12. For model HL3140CW, continue to the next step.



 - For model HL3170CDW, postscript drivers often do a better job at reproducing graphics and images. It does so, however, at the expense of speed. Postscript drivers take a significantly longer time to process images. You can install the BR-Script3 driver from the Brother CD-ROM or download from the Brother web site http://solutions.brother.com.



NOTE: While these adjustments may make a significant difference in color matching the effect will be general and will change the output of everything being printed. Please keep in mind that an exact match may not be possible.



13. Computer monitors display color as RGB (red, green and blue). A monitor can display millions of colors. The color laser machine uses a 4 color printing process of CMYK (cyan, magenta, yellow, and black). The machine uses these 4 colors to create as many colors as possible.



The color displayed on the computer monitor is light color and the printer output is pigment color.



Also, the quality of the print out is determined by the image quality. The machine will not enhance a poor image or a low resolution image. A low resolution image can look pixeled when printed, especially around the edges. Check the file size of the image, a small file size indicates a low resolution image.



14. Confirm you are using genuine Brother toner cartridges.  Brother strongly recommends that customers use only genuine Brother drum unit and/or toner cartridges. Each Brother laser printer is designed to work at pre-set temperatures that are matched exactly to each of our individual toner formulations. Each individual component is designed to work with the other to ensure quality and reliability. Using non-Brother supplies may affect the hardware performance, print quality, and machine reliability. The Brother limited warranty does not apply to any problem that is caused by the use of third party drum units, toner cartridges, or toner.
