Description of Problem 100000032369

When I attempt to scan using control center, I receive the error message: ADS-2000 cannot be found. Error CC4-202. What can I do?


Description of Solution 200000041538

Part 1 – Check Error State and Connections



1.  Verify that the machine is not in an error state, resolve any error indications.  Make sure the USB interface cable is securely connected.    Ensure the cable is 6 ft or less, directly connected between the computer and Brother Machine.





2.  Attempt to scan from the Brother Control Center to verify the issue.



a)    Insert the document into the scanner’s feeder.



b)    Double click on the ControlCenter icon and click IMAGE to activate the scanner.



c)    If the image scanned the issue is resolved if not, continue to Part 2.





PART 2 - TEST SCANNER DRIVER WITH ANOTHER APPLICATION



Ensure that you are able to scan into a different application such as PaperPort, Scanner and Camera Wizard, MS Paint or Windows Fax and Scan.  The available scan application will vary depending on the Operating System.



  • If you are able to scan with another application, continue to PART 3.



  • If you are not able to scan, this solution DOES NOT apply.  Please refer to a general solution for "unable to scan" based on the OS and connection type.



PART 3 - DOWNLOAD AND RUN THE CONTROLCENTER4 UPDATE TOOL



1.    Download the ControlCenter4 Update Tool from the Brother website

http://www.brother-usa.com/downloads.



Click here for instructions on how to navigate the Brother Website.



NOTE: If the ControlCenter4 update tool is not available as a download for your machine, continue to PART 4.



2. Locate the file you downloaded CC4Updater… and double-click on it.



3.  If prompted with a security warning, click RUN.



4.  Once the decompression is complete, click OK.



5. Locate and double-click on the decompressed file labeled ControlCenter4 Updater.exe.

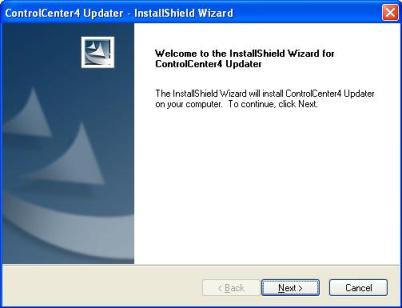

6. Click NEXT.

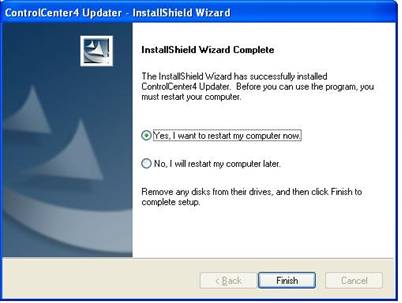

7. Once the installation is complete, choose Yes, I want to restart my computer now and click FINISH.  The computer will restart.





8.  Once the computer has restarted, open the ControlCenter again:



Windows 7 or earlier:



  1. Click Start => (All) Programs => Brother => XXX-XXXX => ControlCenter4. The ControlCenter4 application will be loaded in the Task Tray near the system clock.



  1. Right-click on the ControlCenter4 icon  located in the Task Tray and left-click on Open





Windows 8:

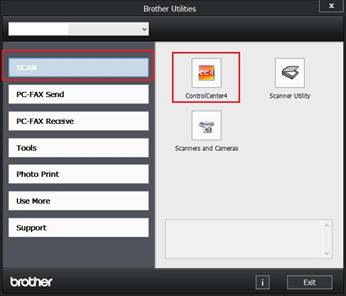

a.    Click   Brother Utilities

b.    Click the dropdown list to select your model if it is not already selected.

c.    Click Scan.

d.    Click ControlCenter4.





9. Attempt to scan again:



  • If the document scans successfully, then the issue is resolved.



  • If you still receive the error message, continue to PART 4.





PART 4 - DOWNLOAD AND RUN TWAIN_RESET PATCH



1.  While connected to the Internet go to the following address:



http://support.visioneer.com/utilities/twain_reset.exe



2. Click RUN.



NOTE: If you are not prompted to run the program, you may save it and run it from the save location.



3. If prompted, click OK to reset the default Twain Source.



4. Restart computer and attempt to scan:



  • If the document scans successfully, then the issue is resolved.



  • If you still receive the error message, continue to PART 5.





PART 5 - UNINSTALL AND REINSTALL THE SOFTWARE



Before you uninstall, ensure that you have the compatible driver disc or the ability to download the software to be reinstalled.



1. Uninstall the software:



Windows 7 or earlier:



a.    Click Start => All Programs => Brother => MFL-Pro or XXX-XXXX (Machine's Model) => Uninstall.



b.    You will be asked if you are sure you want to remove this software. Click YES.



c.    A Brother MFL-PRO Uninstaller will appear. Click OK. The un-installation will begin.



d.    Once the software has been uninstalled, choose YES I WANT TO RESTART MY COMPUTER NOW and click FINISH. Your computer will now restart and the MFL-Pro Suite has now been removed from your PC.  Continue to PART 5 STEP 2.







Windows 8:

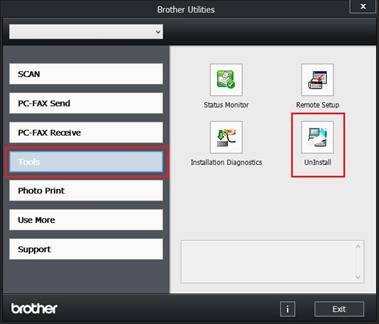

  1. Click   Brother Utilities
  2. Click the dropdown list to select your model if it is not already selected.
  3. Click Tools.
  4. Click Uninstall.





  1. The Brother MFL-Pro Uninstaller window will appear.  Click OK.



  1. The uninstall will continue.  You may be prompted to confirm the uninstall procedure. If so, click OK



  1. Once this is complete you will see a window stating: For successful uninstallation, you must restart Windows.  For USB cable users, disconnect the cable from the Brother machine.



h.    Select YES, I WANT TO RESTART MY COMPUTER NOW. And click FINISH.  Your computer will now restart and the MFL-Pro Suite has now been removed from your PC.  Continue to PART 5 STEP 2.





2. Now that the Brother software is uninstalled disable all anti-virus, spyware, and registry cleaning software and then reinstall the Brother MFL-Pro software using the disc (if compatible) or download (http://www.brother-usa.com/downloads).



3. Once the Brother software is installed test by scanning from the Brother ControlCenter.



·         If the image scanned the issue is resolved.



·         If the error continues to appear, there appears to be a problem related to your computer's registry settings. You may use a different method for scanning, such as PaperPort, as an alternative.  Please contact your computer manufacturer for further support.
