Answer to your Frequently Asked Question:


Printer Friendly
Description of Problem 100000033773

I am unable to print from my Windows 7 computer using the USB connection. What can I do?


Description of Solution 200000043283



Difficulty printing from your PC can occur for various reasons.  The most common reason a Brother machine may stop printing, is because the connection between the computer and the Brother machine is lost.  This can occur as a result of wrong settings or configuration on the printer driver.  There are several basic troubleshooting steps you can take to resolve this issue.



PART 1: VERIFY THE STATUS OF THE BROTHER MACHINE



1.  Make sure that the Brother machine is turned on.



2.  Check the LCD screen for any error messages.  An example would be "Paper Jam" or "Ink/Toner Empty".  If the LCD screen shows an error, troubleshoot to clear the particular problem.





PART 2: VERIFY THE CONNECTION OF THE BROTHER MACHINE AND COMPUTER



1.  Disconnect and then reconnect the USB cable from the computer and the Brother machine.  Make sure the interface cable has a secure connection to both the Brother machine and your computer.  If you are using a USB hub, remove it and connect directly to the computer.



NOTE:  We recommend that the USB cable supports the following specifications:



-       Type A/B 1.1 or 2.0 that is 6 feet (2 meters) or less.

-       Twisted pair

-       Shielded



WARNING:  Ensure that the cable is connected to the USB port on the machine and not a Network port, Line Jack, Ext Jack, PictBridge port, or any port other than the USB port.



2.  Cycle the power to the Brother machine for about 15 seconds.





PART 3:  VERIFY THAT THE PRINTER DRIVER IS INSTALLED



1. On the computer Click Start => Control Panel => Hardware and Sound => Devices and Printers.



2. Verify that the Brother printer in the list.  If the Brother printer is listed, continue to PART 4.  If the Brother printer is not listed, the driver may not be installed properly.  Refer to PART 8.



NOTE:  If you do not see the list of printer drivers, you may have to click on the Arrow next to Printers And Faxes to expand the field.





PART 4:  VERIFY THAT THE BROTHER PRINTER IS SET AS DEFAULT



Verify that the Brother printer is set as default.  This is especially important if you use the print icon to print from within applications.  If the Brother printer is set as the default printer, it will have a check mark in front of the icon.



To set your Brother machine as the default printer, right click on the Brother "Printer Driver" and select Set As Default Printer.









PART 5:  VERIFY THAT THE PRINTER STATUS IS READY AND THE PRINT QUEUE IS EMPTY



1.  While in the Printer folder, locate the Brother Printer in the list and hover your mouse over the icon.  Below is an example of what you may see:



Status: 0 document(s) in queue (It could be any number)

Status: Printer: Ready (It could also state: Offline, Paused, etc.)



2.  If the Status states: Paused or Offline:



  1. Right-click on the Brother "Printer Driver" and select See What's Printing.



  1. Select Printer.



c.    If there is a check next to Pause Printing, click it again to uncheck the selection.



d.    If there is a check next to Use Printer Offline, click it again to uncheck the selection.



e.    If there are documents waiting in the queue, and they begin to print, then the issue is resolved.  Otherwise, continue troubleshooting.



3. If there are any documents waiting in the queue:

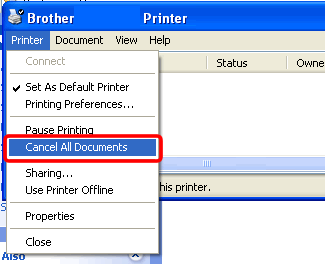

  1. Right-click on the Brother "Printer Driver" and select See What's Printing.



  1. Select Printer => Cancel All Documents



  1. Press Yes.  This should clear the queue.



NOTE:  You may have to make several attempts to completely clear the print queue.









PART 6: ATTEMPT A TEST PRINT



1. While in the Printer folder, right-click on the Brother "Printer Driver" and select Printer Properties.



2. On the General Tab, click the Print Test Page button.



  1. If the test page prints, then your issue is resolved.



  1. If the test page does not print, close the Printer Properties window



             i.        Right-click on the Brother "Printer Driver" and select See What's Printing.



           ii.        Select Printer => Cancel All Documents



          iii.        Press Yes.  This should clear the queue.  Continue troubleshooting.



NOTE:  You may have to make several attempts to completely clear the print queue.





PART 7: VERIFY PRINTER PORT SETTINGS

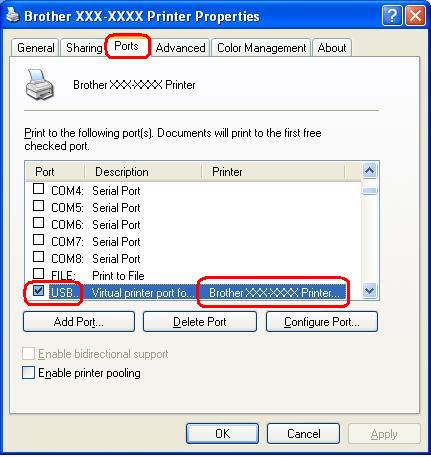

1. While in the Printer's folder, right-click on your Brother "Printer Driver" and select Properties.



2. Click on the Ports Tab and verify the port that is selected for your machine.  If it is not set for the correct port, change it to the correct port.  The port should be USB00x. (x is a number).









a. If there are multiple USB Virtual Ports, you may have to test each one to determine which will allow the machine to print.  After any failed attempts, clear the print queue and try a different port.  If you still can't print, continue to PART 8.



b. If there are no USB Virtual Ports to select, then either there is no communication between the Brother Machine and the computer or there is a problem with the computer's operating system.



-       Verify the USB cable is connected properly, try multiple ports on the computer, and try another known working cable.



-       If you still do not have a USB virtual port available, try connecting the machine to another computer.  If the machine works on a second computer, then the issue is with the original computer's Operating System not properly loading the USB controllers.  Contact your computer manufacturer for further support.



WARNING:  Do not attempt to create a local port.  The correct ports should be automatically created by the Operating System.



PART 8: REINSTALL THE BROTHER DRIVERS



1. Please close all applications before running the Repair MFL-Pro Suite.  Leave the Brother machine powered on and connected to the computer with the USB cable.



2. Insert the supplied CD-ROM for Windows into your CD-ROM drive. If the model screen appears, select your model.  If the language screen appears, select your language.



If the CD does not run, go to (My) Computer, then double click on the MFL-Pro or Brother CD icon.



You may also uninstall the reinstall the software using the download from the brother website:  http://www.brother-usa.com/

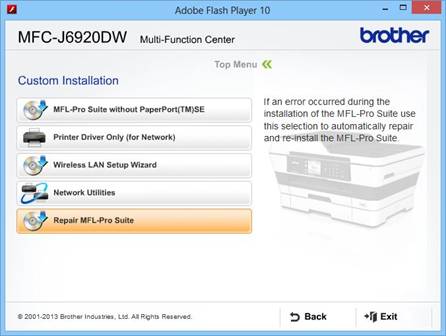

3. The CD-ROM main menu will appear.  Click Custom Installation => Repair MFL-Pro Suite.





4. When the software prompts to turn off machine and disconnect the USB connection, do so, then click Yes.



5. Choose Local Connection (USB) and then click NEXT.



6. When prompted to Plug in the USB cable, connect the USB cable to the USB port in the Brother machine and to an available USB port on your computer:



a. Lift the scanner cover until it locks securely into the open position.





b. Connect the USB cable to the USB port marked with a symbol.  You will find the USB port inside the machine as shown below.







c. Carefully guide the USB cable into the cable channel and out the back of the machine.  Connect the cable to your computer.  Make sure that the cable does not restrict the cover from closing, or an error may occur.







d. Gently close the scanner cover using the finger holds on each side.



Be careful not to pinch your fingers when the scanner cover closes.





NOTE:  Brother recommends you use a type A/B USB cable that is no longer than 6 feet directly connected from the machine to your computer.  Other cable configurations may work, but connection loss is common.



7. Turn the Brother machine on.  The installation should automatically continue.



8. The installation will continue automatically and the screens will appear one after another.  Please wait. It will take a few moments for all the screens to appear. Do not try to cancel any of the screens during this installation.



NOTE: If a Windows Security screen appears, click the check box and click Install to complete the installation correctly.



9. If you receive the Environmental Advice for Imaging Equipment screen, click NEXT to continue the installation.



10.  When the On-Line Registration screen is displayed, make your selection and follow the instructions.  Then click NEXT.



11.  When the first Setup Complete window appears, you may enable (check) or disable (uncheck) any of the following settings as desired and then click NEXT to continue the installation:



-      Enable Status Monitor on Startup – A software tool for monitoring device status and error notifications from your PC.



-      Set as Default Printer – Set this printer as the default printer for the current user.



12. When the second Setup Complete window appears, you may enable (check) or disable (uncheck) any of the following settings as desired and then click NEXT to continue the installation:



-      OmniJoin – Online Meetings from Brother.  Learn more about FREE web conferencing trial offer.



-      Brother Product Research and Support Program – Help us plan enhancements to our products.



13. Select Yes, I want to restart my computer now.  Click Finish.  After restarting the computer, you must log on with Administrator rights.



14. When the computer restarts, the following screens will appear:



-      When the Software Update Setting screen appears, choose the software update setting you wan and click OK.



-      If the Brother Product Research & Support Program starts up, follow the on-screen instructions if you would like to participate.



-      You may receive an option with a link to the Brother Help site where you can find answers to frequently asked questions.



NOTE: Internet access is required for the software update and the Brother Product Research & Support Program.



15.  Attempt to print again.



-       If you can print, then the issue is resolved.



-       If you are still unable to print, try a different USB cable within the recommended specs or a different port on the computer to determine if the issue is with the interface, or try connecting and printing from another computer to determine if the issue is specific to this computer's operating system.
