Description of Problem 100000034092

How do I clear the message "Unable to Init" (followed by a two character code) from the display?


Description of Solution 200000043703







The message "Unable to Init" (followed by a two character code) will appear on the display for one of the following reasons:



i.      Foreign object, such as a paper clip or ripped piece of paper, stuck in the machine

ii.     Mechanical malfunction



Verify the 2 character code displayed in the message and choose the correct option below:



a.    If the code displayed in the message is 3X, 7X, 50, 51, 52, 53, 5B, 5D or 5E, continue to STEP 1.

NOTE:  X = any character following the first number.  Ex: 35, 7A



b.    If a code other than those listed above is displayed, go to STEP 11.



c.    If the code displayed in the message is 46, refer to the solution: How do I clear the message "Ink Absorber Full" from the display?



CHECK FOR FOREIGN OBJECTS & PAPER JAMS

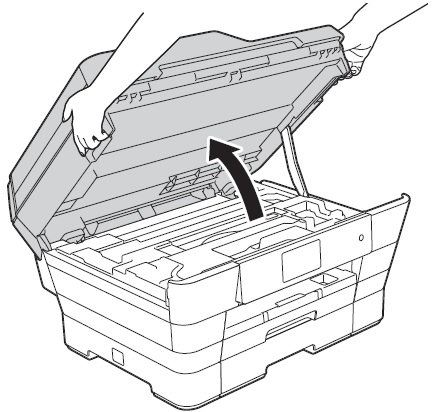

1.  Lift the Scanner Cover to the open position using the finger hold handles located on the right and left side of the cover.

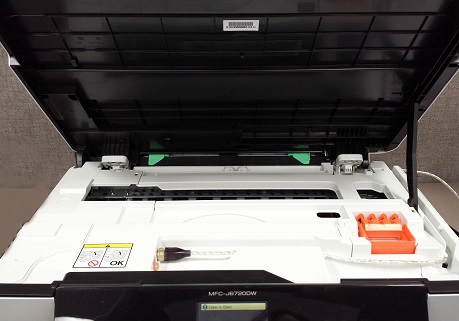

2. Do you see the black scanner cover support arm, located on the right side of the machine? See image below.



-        If yes, continue to STEP 3.

-        If no, verify you opened the scanner cover (see image above). If the document cover was opened you will not see the scanner cover support arm. Close the document cover and go back to STEP 1 to open the scanner cover.

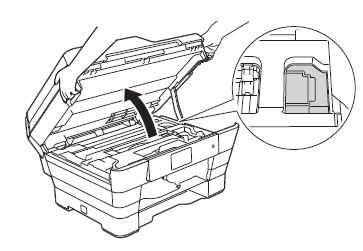

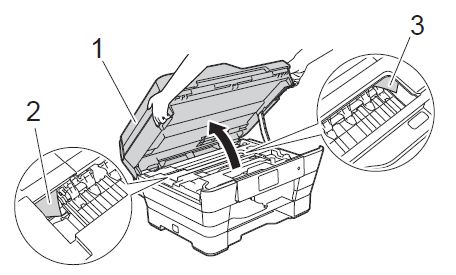

3. Carefully check the left (2) and right (3) hand corners and the center inside the machine and remove any paper scraps that may be jammed.





NOTE: If the print head is at the right corner as shown below, hold down the red X for at least 5 seconds until the print head moves to the middle so the right hand corner can be checked.









4.  Use your hand to move the print head left or right to make sure there are no paper scraps stuck under the print head.





5.  Leave the scanner OPEN and turn the machine around so you are looking at the back of the machine.



6. Open the Jam Clear Cover on the back of the machine.



NOTE: It may take some force to open the cover.







7. Open the green inside cover.

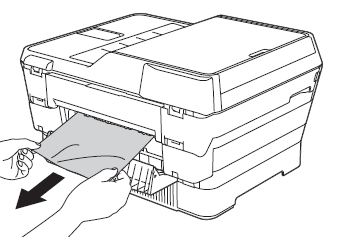

8. Look for and remove any jammed paper.







9. Close the Jam Clear Cover (1) and turn the machine back around to the front.

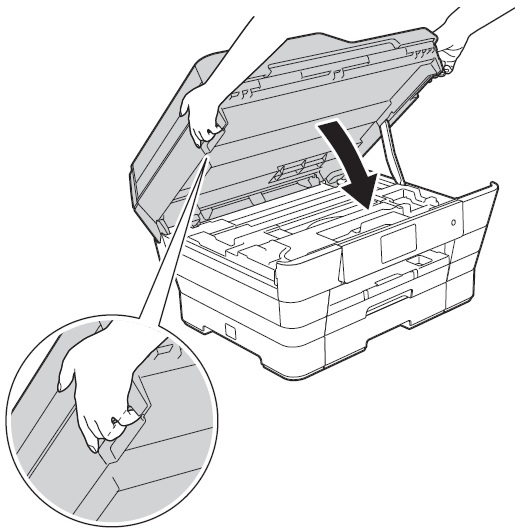

10. Lift the flat bed scanner cover to release the lock, gently push the scanner cover support down to close the scanner cover.





-        If the error message continues to appear on the display, go to STEP 11.



-        If the error message is cleared, continue to STEP 14.



11. Unplug the machine from the power outlet. If the Brother machine is plugged into a power strip or a wall switch controls the power outlet, power off the strip or wall outlet.



-        Wait approximately 2 seconds and then plug the machine back into the power outlet or turn the switch back on (power strip or wall outlet).  Continue to STEP 12.



NOTE:  If you are NOT able to remove the power from the machine (unplug from the power outlet or power off the power strip or wall outlet), go to STEP 13.



12. If the error message continues to appear on the display, go to STEP 15.  If the error message is cleared, continue to STEP 14.



13. Reset the machine:

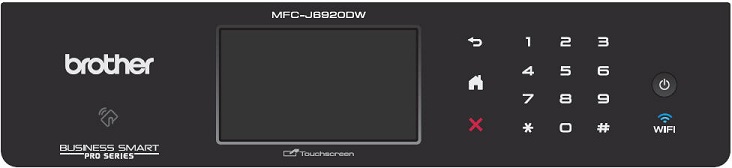

a.    Press FAX on the Touch Screen LCD to display the LEDs on the Touch Panel.

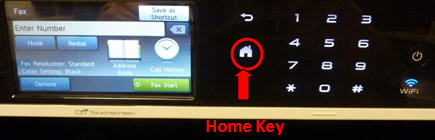

b.    Press and hold the HOME key   (approximately 7 to 10 seconds) on the Touch Panel until the display changes to show the Serial #, ROM Version and Pages printed.

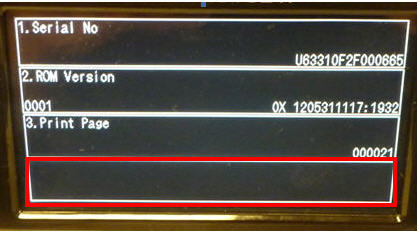

NOTE:  Some of the LED'S on the Touch Panel may turn off when you press the HOME key. This is normal. Continue to hold down the key until the display changes to show the Serial #, ROM Version and Pages printed (see image below).



c.    Press and hold the blank rectangle displayed under "3. Print Page" for approximately 2 seconds.

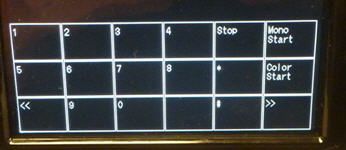

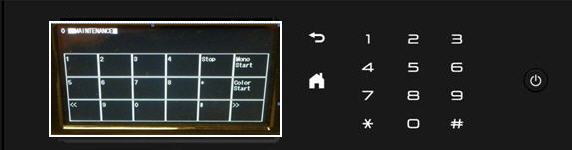

- The Touch Screen LCD will display a numerical, alphabetical or machine function chart. The example below is the numerical chart.





d.    Using the number keys on the Touch Panel press *, 0, # in that order.  The Touch Screen will display a message in the top left corner.  The message appearing may be "0 Maintenance", a status message (example "Ink Low") or an error message (example "No Cartridge").







e.    Press 9, 1 on the Touch Panel. The LCD will display "SELECT 91?"



f.     Press MONO START in the top right corner and the machine will briefly display "PARAMETER INIT" and will return to the home screen.



-         If the display returns to the Home screen with no error messages, continue to STEP 14



-         If the error message continues to appear on the display, go to STEP 15.



TEST THE MACHINE



14. Print a Print Quality Check Sheet (PQCS) to test the machine:





a. Press the 4 Color Column  on the touch screen.



b. Press Test Print



c. Press Print Quality



d. Press OK. A Print Quality Check Sheet will be printed.



-      If the PQCS successfully prints, the issue is resolved.



-      If the PQCS does not print because an error message reappeared AND you have NOT cycled the power, go back to STEP 11



-      If the PQCS does not print because an error message reappeared AND you HAVE cycled the power, continue to STEP 15.



15. Your machine may require service.  Any faxes received while the error message is on the display will automatically go into the machine's memory due to the product's inability to print.  If there are faxes in memory, you can transfer them to another fax machine so they are not lost.



- If you do not want to transfer faxes, go to WARRANTY AND SERVICE OPTIONS



- If you want to confirm and transfer received faxes in memory, follow the procedure below:





TRANSFER STORED FAXES TO ANOTHER MACHINE



NOTE: In order to transfer data from your fax machine to another fax machine, the Station ID must be programmed in the Brother machine. For instructions refer to solution:"How do I program the Station ID on my Brother machine?"

a.    Press red X to interrupt the error temporarily.



b.    Press  located in the top right corner of the display.



c.    Press   located at the bottom right of the display.



d.    Swipe the screen up and down, or press the up or down arrows on the screen to display SERVICE.



e.    Press SERVICE.



f.     Press DATA TRANSFER.



g.    Press FAX TRANSFER.



-         If NO DATA appears on the LCD, there are NO faxes in memory press and continue to WARRANTY AND SERVICE OPTIONS.



-         If the LCD prompts you to enter a fax number, there ARE faxes in memory.  If you want to transfer the faxes to another fax machine, enter the appropriate fax number to receive the faxes and continue to STEP h.



h.    Press BLACK START and continue to WARRANTY AND SERVICE OPTIONS listed below.



WARRANTY AND SERVICE OPTIONS



If the problem continues and your machine is within warranty, you can locate a Brother Authorized Service Center (ASC) in your area by clicking on the link below:

http://www.brother-usa.com/service/default.aspx or contact Brother Customer Service by calling 1-877-Brother (1-877-276-8437) Monday through Friday, excluding holidays.



If your machine is out of warranty, you can locate a Brother Authorized Service Center using the information listed above.
