QUICK SELECTION CHARTS

BF2 Shaft Mount Right-angle Mini Series Torque Table (in-lb)

Ratio RPM 1/50 Hp 1/30 Hp 1/20 Hp 1/15 Hp 1/10 Hp
X:1 Code Frame Torque Frame Torque Frame Torque Frame Torque Frame Torque
10 10 180 12 6 12 10 15 16 15 25 15 37
15 15 120 9 14 23 37 55
20 20 90 12 19 31 49 74
25 25 72 14 24 39 61 92
30 30 60 17 29 47 74 110
40 40 45 23 39 62 98 147
50 50 36 29 48 78 123 184
60 60 30 35 58 94 147 221
80 80 22.5 44 73 119 186 279
100 100 18 55 91 148 233 349
120 120 15 66 110 178 279 419
160 160 11.2 88 146 237 373 477
200 200 9 110 183 296 466 477
240 240 7.5 132 220 356 477 477

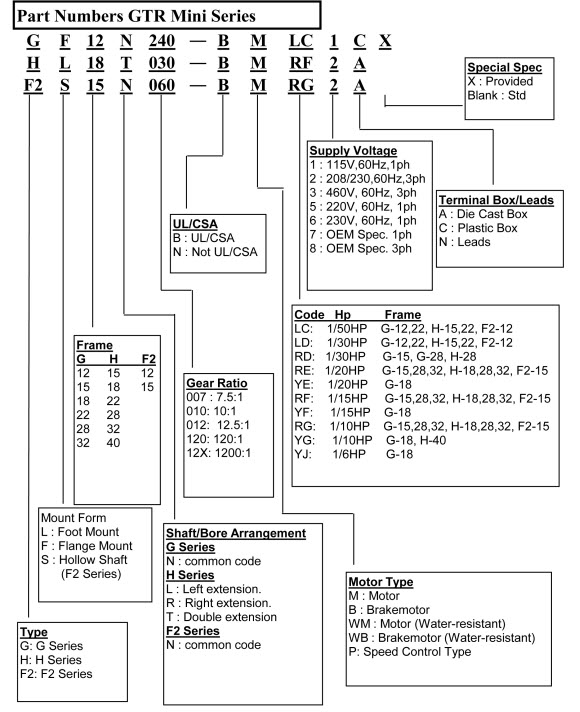

Mini Part Numbering
