QUICK SELECTION CHARTS

BH2 Right-angle Mid Series Torque Table (in-lb)

Ratio RPM 1/8 Hp 1/4 Hp 1/2 Hp 1 Hp 2 Hp 3 Hp
X:1 Code Frame Torque Frame Torque Frame Torque Frame Torque Frame Torque Frame Torque
5 005 360 22 21 22 42 28 85 32 159 40 321 50 468
10 010 180 42 85 169 317 633 928
15 015 120 63 127 254 476 954 1396
20 020 90 85 169 338 634 1266 1855
25 025 72 106 211 423 793 1587 2324
30 030 60 127 254 507 951 1899 2783
40 040 45 169 338 676 1268 2454 3563
50 050 36 211 423 845 1585 3061 4491
60 060 30 254 507 1014 1902 3676 5384
80 080 22.5 328 28 654 32 1308 40 2452 50 4899 7187
100 100 18 410 817 1634 3065 6121 9017
120 120 15 491 981 1961 3677 7343 10751
160 160 11.2 655 1308 2615 4903 9797
200 200 9 819 1634 3269 6129 10838
240 240 7.5 983 1961 3819 6770 10838
300 300 6 28 1069 32 2170 40 4227 50 7926
375 375 4.8 1336 2712 5284 9908
450 450 4 1603 3255 6341 10850
600 600 3 32 2113 40 4339 50 8455
750 750 2.4 2642 5424 10568
900 900 2 3170 6509 10850
1200 12X 1.5 3819 6770 10850
1500 15X 1.2 3819 6770 10850

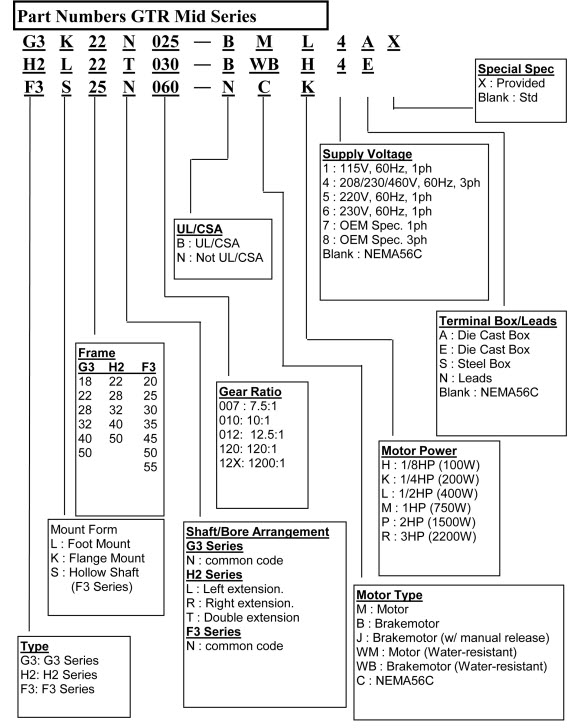

Mid Part Numbering
