TC-31B

TC-31B

  • TC-31B
  • TC-31B
  • TC-31B

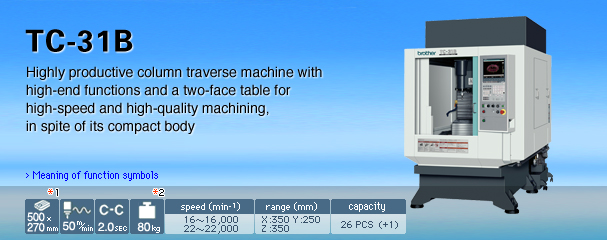

Highly productive column traverse machine with
high-end functions and a two-face table for
high-speed and high-quality machining,
in spite of its compact body

Recommended machining

  • Automobile
  • General
  • HDD
  • IT

Topics

What is a CNC Tapping Center?

31B function symbols

Meaning of function symbols

  • *1 The table size is the value of the one side.
  • *2 The maximum loading capacity is the value of the one side.

For machining industries in Information Technology parts, Automotive parts, General machine parts.

For machining industries in Information Technology
For machining industries in Information Technology
For machining industries in Motor cycle parts
For machining industries in Motor cycle parts
For machining industries in General machine parts

List of examples

List of movies

Machining performance

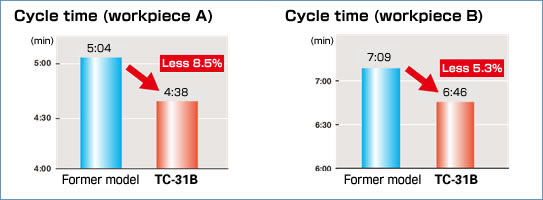

  • By using the B00 series NC to improve program processing speed and vibration control to improve acceleration, productivity has been improved by 3 to 10% compared to former model.
Machining performance

High quality machining

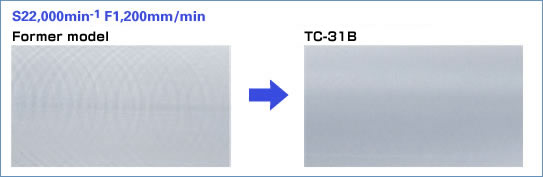

  • After reviewing the machine's structure and using a larger spindle diameter, etc., we have enhanced rigidity and improved machining quality.
    For example, machining quality of finished surface is superior to former model.
High quality machining

Usability

  • Equipped with the B00 series NC, a 12.1-inch color display, and a variety of functions, such as menu programming and high accuracy mode A, the operability and functional capabilities of the TC-31B are even more advanced. In addition, the machine is standard-equipped with practical new functions, such as USB memory interface and maintenance notice function.
12.1-inch color display
  • User-friendly screen configuration, including menu screens for graphic drawing and program creation, alarm recovery screens, etc.
USB memory interface
  • USB memory interface is available. Many data can be transferred at high speed. Tape operation is also possible from a USB memory device.

Note: USB memory interface cannnot be connected directly to the personal computer.

Maintenance notice function
  • Maintenance timing can be set or notified by an alarm.
High accuracy mode A
  • High accuracy mode A ensures accurate finishing of minute lines. Vibration control prevents the vibration generated during axis movement.
    (The figure shows an example when machined at F10,000 mm/min(F394 inch/min).)
