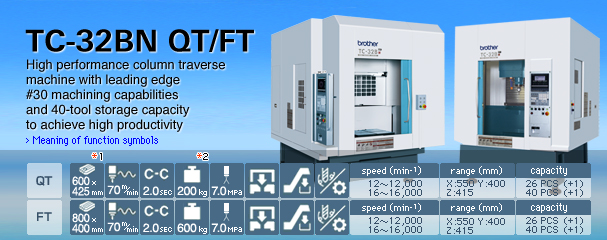

TC-32BN QT/FT

TC-32BN QT/FT

  • TC-32BN QT/FT
  • TC-32BN QT/FT
  • TC-32BN QT/FT
  • TC-32BN QT/FT

High-performance column traverse machine with
leading edge #30 machining capabilities and 40-tool
storage capacity to achieve high productivity

Recommended machining

  • Automobile
  • General

Topics

What is a CNC Tapping Center?

22B function symbols

22B function symbols

Meaning of function symbols

  • *1 The table size of the TC-32B QT is the value for one face of the table.
  • *2 The maximum loading capacity of the TC-32B QT is the value for one face of the table.

For machining industries in Automotive parts, Motor cycle parts.

For machining industries in Automotive parts
For machining industries in Automotive parts
For machining industries in Automotive parts
For machining industries in Motor cycle parts

List of examples

List of movies

Expansion of target workpieces

Expansion of target workpieces

  • A 40-tool magazine that features the largest tool storage capacity among TC models is available. This enables even one machine to support machining requiring multiple tools, such as multi-face machining, leading to process integration. In addition, tool replacement is not required even for machining of a variety products and frequent setup changes can be avoided.
Improved reliability

Enhanced productivity

  • Features a rapid traverse rate of 70 m/min, Z-axis acceleration of 1.5G, X-axis acceleration of 1.2G, ATC time of 2.0 seconds (C - C) to fully realize high productivity.
Improved reliability

Improved reliability

  • With the machining area and machine room completely separated, and using a center trough structure and chip conveyor to easily handle large amounts of chips, prevents any problems caused by chips.
Improved operability

Improved operability

  • Enhanced usability by providing the machine with a 12.1 inch color display, menu programming, USB interface, etc.
