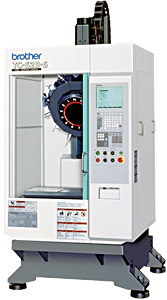

CNC Tapping Center TC-S2B-S

Ideal for machining small parts, automobile parts, and IT parts

Table size 600 x 300 mm Rapid feed rate X, Y, Z: 50m/min Spindle speed 10 - 10,000 min-1 (16 - 16,000 min-1)   Tool change time 1.8 sec Tool storage capacity 14 pcs Work area X: 300 mm Y: 360 mm Z: 270 mm Load weight 250 kg

• Rapid feed rate: 50 m/min (X,Y,Z-axis)
• BT Coolant Through Spindle (CTS 1.5 MPa) (optional)
• Tool washing system*
  * Coolant is Showered from the end face of the spindle while the tool is being changed to prevent chips adhering to the taper.
• More rigid spindle, column, and base
• High-torque energy saving spindle motor
• Max. loading weight: 250kg
