TC-S2DN

TC-S2DN-O / TC-S2DN-S

TC-S2DN

  • TC-S2DN
  • TC-S2DN
  • TC-S2DN
  • TC-S2DN

Constantly developing standard machine,
having helped improve the productivity of machining parts and the environmental measures.

Recommended machining

  • Automobile
  • General
  • IT

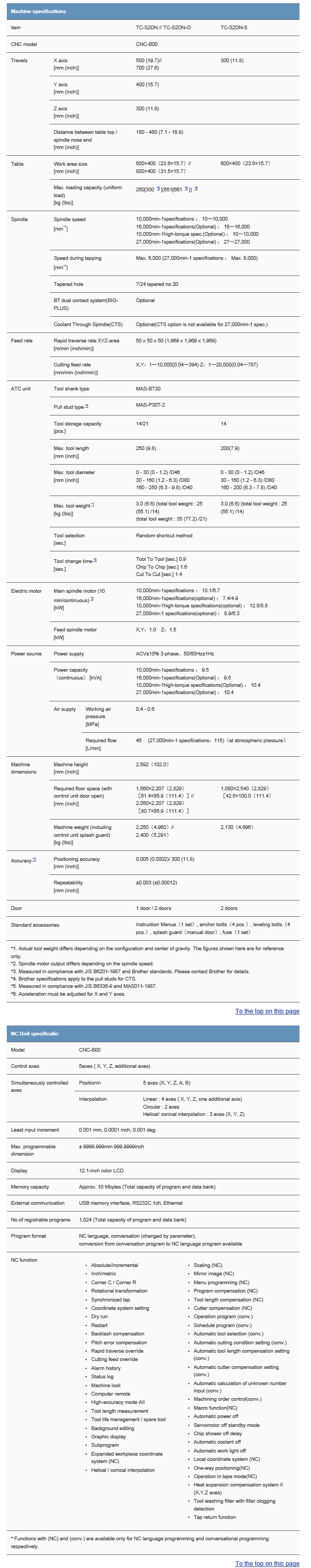

Machine specifications
item TC-S2DN // TC-S2DN-O TC-S2DN-S
CNC model CNC-B00
Travels X axis
[mm (inch)]
500 (19.7)//
700 (27.6)
300 (11.8)
Y axis
[mm (inch)]
400 (15.7)
Z axis
[mm (inch)]
300 (11.8)
Distance between table top / spindle nose end [mm (inch)] 180 - 480 (7.1 - 18.9)
Table Work area size
[mm (inch)]
600×400(23.6×15.7)//
800×400(31.5×15.7)
600×400(23.6×15.7)
Max. loading capacity (uniform load)
[kg (lbs)]
250[300 *6](551[661 *6]) *6
Spindle Spindle speed
[min-1]
10,000min-1specifications : 10~10,000
16,000min-1specifications(Optional) : 16~16,000
10,000min-1high-torque spec.(Optional) : 10~10,000
27,000min-1specifications(Optional) : 27~27,000
Speed during tapping
[min-1]
Max. 6,000 (27,000min-1 specifications : Max. 8,000)
Tapered hole 7/24 tapered no.30
BT dual contact system(BIG-PLUS) Optional
Coolant Through Spindle(CTS) Optional(CTS option is not available for 27,000min-1 spec.)
Feed rate Rapid traverse rate XYZ-area
[m/min (inch/min)]
50 x 50 x 50 (1,969 x 1,969 x 1,969)
Cutting feed rate
[mm/min (inch/min)]
X,Y:1~10,000(0.04~394) Z:1~20,000(0.04~787)
ATC unit Tool shank type MAS-BT30
Pull stud type*4 MAS-P30T-2
Tool storage capacity
[pcs.]
14/21 14
Max. tool length
[mm (inch)]
250 (9.8) 200(7.9)
Max. tool diameter
[mm (inch)]
0 - 30 (0 - 1.2) /D46
30 - 160 (1.2 - 6.3) /D80
160 - 250 (6.3 - 9.8) /D40
0 - 30 (0 - 1.2) /D46
30 - 160 (1.2 - 6.3) /D80
160 - 200 (6.3 - 7.8) /D40
Max. tool weight*1[kg (lbs)] 3.0 (6.6) (total tool weight : 25 (55.1) /14)
(total tool weight : 35 (77.2) /21)
3.0 (6.6) (total tool weight : 25 (55.1) /14)
Tool selection
[sec.]
Random shortcut method
Tool change time*5[sec.] Tool To Tool [sec.] 0.9
Chip To Chip [sec.] 1.6
Cut To Cut [sec.] 1.4
Electric motor Main spindle motor (10 min/continuous)*2[kW] 10,000min-1specifications : 10.1/6.7
16,000min-1specifications(optional) : 7.4/4.9
10,000min-1high-torque specifications(optional) : 12.8/8.8
27,000min-1 specifications(optional) : 8.9/6.3
Feed spindle motor[kW] X,Y:1.0 Z:1.5
Power source Power supply ACV10% 3-phase,50/60Hz1Hz
Power capacity
(continuous) [kVA]
10,000min-1specifications : 9.5
16,000min-1specifications(Optional) : 9.5
10,000min-1high-torque specifications(Optional) : 10.4
27,000min-1specifications(Optional) : 10.4
Air supply Working air pressure
[MPa]
0.4 - 0.6
Required flow
[L/min]
45(at atmospheric pressure)
Machine dimensions Machine height
[mm (inch)]
2,592(102.0)
Required floor space (with control unit door open)[mm (inch)] 1,560×2,207(2,829)[61.4×86.9(111.4)]//
2,050×2,207(2,829)[80.7×86.9(111.4)]
1,080×2,540(2,829)[42.5×100.0(111.4)
Machine weight (including control unit splash guard) [kg (lbs)] 2,250(4,960)//
2,400(5,291)
2,130(4,696)
Accuracy*3 Positioning accuracy
[mm (inch)]
0.005 (0.0002)/ 300 (11.8)
Repeatability
[mm (inch)]
0.003 (0.00012)
Door 1 door / 2 doors 2 doors
Standard accessories Instruction Manua(1 set), anchor bolts(4 pcs.), leveling bolts(4 pcs.), splash guard(manual door), fuse(1 set)
  • *1   Actual tool weight differs depending on the configuration and center of gravity. The figures shown here are for reference only.
  • *2   Spindle motor output differs depending on the spindle speed.
  • *3   Measured in compliance with JIS B6201-1987 and Brother standards. Please contact Brother for details.
  • *4   Brother specifications apply to the pull studs for CTS.
  • *5   Measured in compliance with JIS B6336-9 and MAS011-1987.
  • *6   Acceleration must be adjusted for X and Y axes.

To the top on this page

NC Unit specificatio
Model CNC-B00
Control axes 5axes ( X, Y, Z, additional axes)
Simultaneously controlled axes Positionin 5 axes (X, Y, Z, A, B)
Interpolation Linear : 4 axes ( X, Y, Z, one additional axis)
Circular : 2 axes
Helical/ conical interpolation : 3 axes (X, Y, Z)
Least input increment 0.001 mm, 0.0001 inch, 0.001 deg.
Max. programmable dimension 9999.999mm 999.9999inch
Display 12.1-inch color LCD
Memory capacity Approx. 10 Mbytes (Total capacity of program and data bank)
External communication USB memory interface, RS232C 1ch, Ethernet
No.of registrable programs 1,024 (Total capacity of program and data bank)
Program format NC language, conversation (changed by parameter), conversion from conversation program to NC language program available
NC function
  • Absolute/incremental
  • Inch/metric
  • Corner C / Corner R
  • Rotational transformation
  • Synchronized tap
  • Coordinate system setting
  • Dry run
  • Restart
  • Backlash compensation
  • Pitch error compensation
  • Rapid traverse override
  • Cutting feed override
  • Alarm history
  • Status log
  • Machine lock
  • Computer remote
  • High-accuracy mode AII
  • Tool length measurement
  • Tool life management / spare tool
  • Background editing
  • Graphic display
  • Subprogram
  • Expanded workpiece coordinate system (NC)
  • Helical / conical interpolation
  • Scaling (NC)
  • Mirror image (NC)
  • Menu programming (NC)
  • Program compensation (NC)
  • Tool length compensation (NC)
  • Cutter compensation (NC)
  • Operation program (conv.)
  • Schedule program (conv.)
  • Automatic tool selection (conv.)
  • Automatic cutting condition setting (conv.)
  • Automatic tool length compensation setting (conv.)
  • Automatic cutter compensation setting (conv.)
  • Automatic calculation of unknown number input (conv.)
  • Machining order control(conv.)
  • Macro function(NC)
  • Automatic power off
  • Servomotor off standby mode
  • Chip shower off delay
  • Automatic coolant off
  • Automatic work light off
  • Local coordinate system (NC)
  • One-way positioning(NC)
  • Operation in tape mode(NC)
  • Heat expansion compensation system II (X,Y,Z axes)
  • Tool washing filter with filter clogging detection
  • Tap return function
  • *  Functions with (NC) and (conv.) are available only for NC language programming and conversational programming respectively.
