Description of Problem 100000031522

How do I clear the message "No Paper Fed" from the display?


Description of Solution 200000040495







1. Are you setting the machine up for the first time?



-      If yes, go to STEP 3.



-      If no, continue to STEP 2.



2. Are you printing from the manual feed slot located on in the back of the machine?



-      If yes, go to STEP 4.



-      If no, go to STEP 5.



-

3.  There are two paper trays available with the Brother machine; Tray#1 and Tray#2;



-         Tray#1 is located directly below the control panel and Tray#2 is located below Tray#1.







When setting the machine up for the first time, the machine will print a test sheet after the ink cartridges have been installed. The test sheet will only print from Tray#1 and 8.5 x 11 letter size paper must be loaded in the tray.



-      If you have  8.5 x 11 letter size paper in Tray#1 continue to STEP 5.



-         If you do not have 8.5 x 11 letter size paper in Tray#1 or are not sure, continue to STEP 3a.

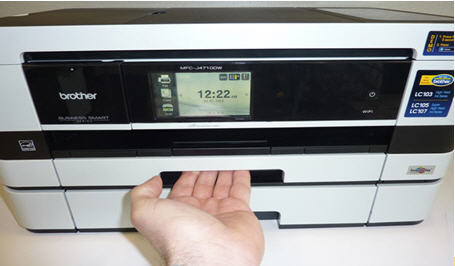

a.    Remove Tray#1 - Place your hand into the 5 inch rectangular opening slot located below the LCD display (control panel).

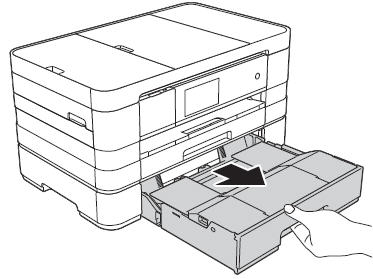

b.    Remove the paper tray from the machine. You may have to use a small amount of force to remove the tray.

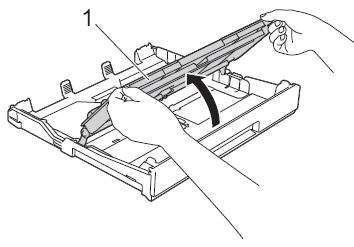

  1. Open the output paper tray cover (1).

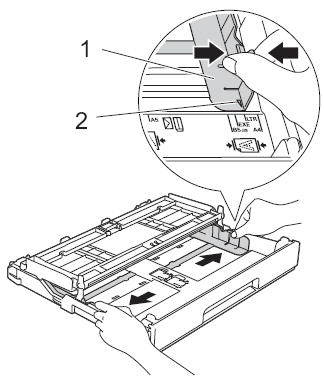

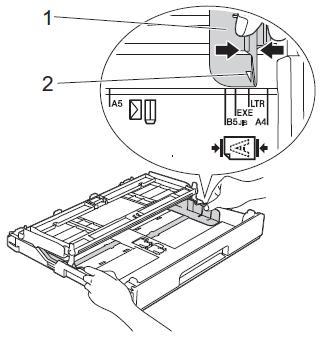

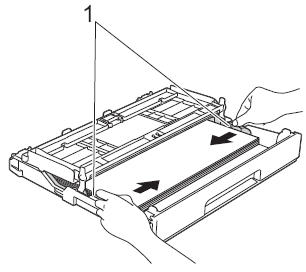

d. Gently press and slide the paper guides (1) to fit the paper you're loading.



- Make sure the triangular mark (2) on the paper guide (1) lines up with the mark for Letter size paper size (LTR).





e. Fan the stack of paper well to avoid jams and misfeeds.









NOTE:  Make sure the paper is not curled or wrinkled.

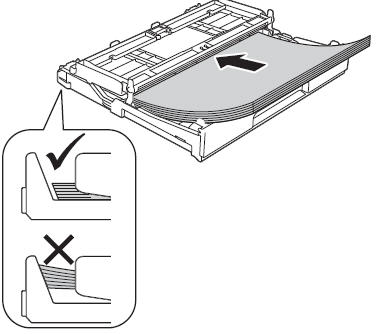

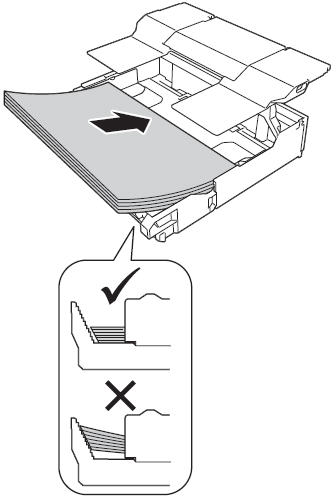

f. Gently place the letter size paper into the tray print side down and top edge first.



- Make sure the paper is in Landscape orientation (short ends of the paper on the left and right side of the tray).



- Do not push the paper too far into the tray.  If you do, the paper may lift at the back of the tray and cause feed problems.









g. Gently adjust the paper guides to fit the paper.



- Make sure the paper guides touch the edges of the paper.

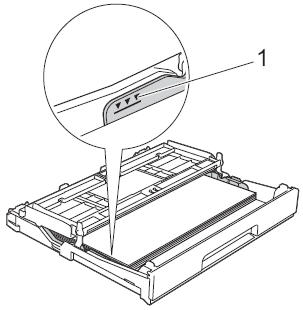

- Make sure the paper is flat in the tray and below the maximum paper mark (1).

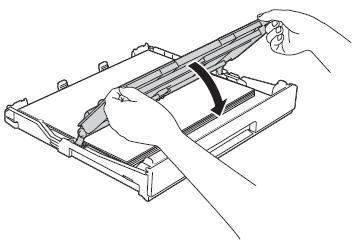

h. Close the output tray cover.

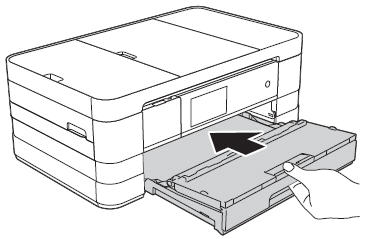

i. Slowly push the paper tray completely into the machine.

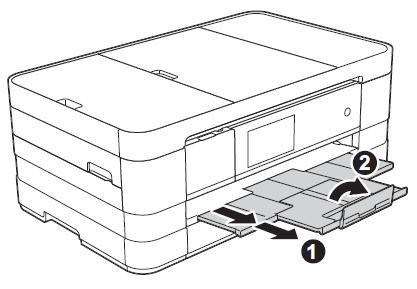

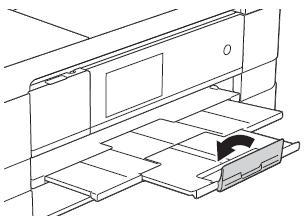

j. While holding the paper tray in place, pull out the paper support (1) until it clicks, then unfold the paper support flap (2).









k. Press OK. A Print Quality Check Sheet will print. The issue should be resolved. You can continue setting up the machine.

-         If the problem continues go to STEP 5.



4. Manual Feed: You can load special print media into your Brother machine's manual feed slot.  Use the manual feed slot to print or copy on Ledger, A3, Legal, Letter, A4, Executive, A5, A6, Photo (4 x 6 in.), Photo L (3.5 x 5 in.), and Photo 2L (5 x 7 in.) paper.  You can also use the manual feed slot to print or copy on envelopes and index cards.



- You must hold up the paper as it feeds into the manual feed slot.  The manual feed slot does not have a paper support.



- You can only load one sheet of media into the manual feed slot at one time.



- If you are printing on paper larger than Letter (8.5 x 11 in.) size, you must use the manual feed slot.



- If you are printing on 6.4 x 9 in. envelopes, you must use the manual feed slot.





NOTE:



- The machine automatically turns on Manual Feed Mode when you put paper in the manual feed slot.



- If you are using paper that is longer than Letter size or envelopes with the flap on the short edge, close the paper support flap located in the front of the machine. See image below.

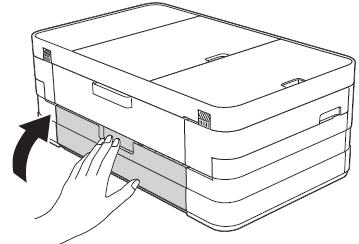

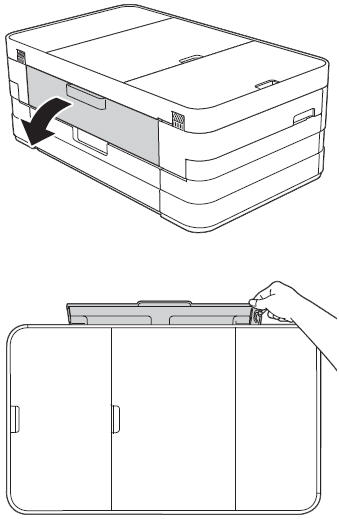

  1. Open the manual feed slot cover.

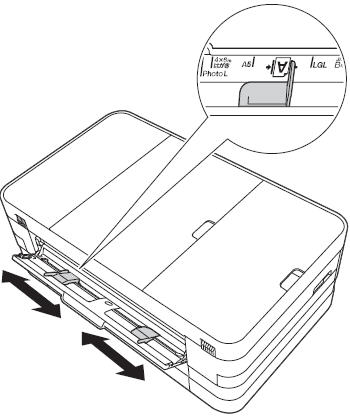

  1. Slide the manual feed slot paper guides to match the width of the paper you are going to use.



NOTE:



- The paper mark in portrait orientation (1) is on the right side of the manual feed slot.



The paper mark in landscape orientation (2) is on the left side of the manual feed slot.



When you slide the paper guides, confirm that they are in these positions.









  1. Put only one sheet of paper into the manual feed slot. Even if you are printing multiple pages, do not feed the next sheet of paper into the manual feed slot until the touchscreen instructs you to do so.













-      If you are using Letter, Executive, or A4 paper, you must insert the sheet in landscape orientation. (the two shorter edges of the sheet are on the left and right side) See image below.











-      If you are using Ledger, A3, Legal, A5, A6, Photo, Photo L, Photo 2L paper; envelopes; or index cards, insert the sheet in portrait orientation. (the two longer edges of the sheet are on the left and right side) See image below.









-      Make sure the side to be printed is face up.







IMPORTANT:



- Do not put more than one sheet of paper in the manual feed slot at any one time.



- Do not put paper in the manual feed slot when you are printing from the paper tray.  Doing this may cause a paper jam.

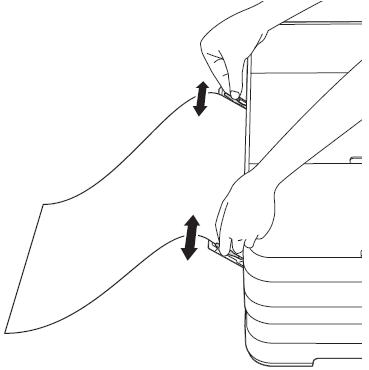

  1. Using both hands, gently adjust the manual feed slot paper guides to fit the paper.









IMPORTANT NOTE:



-      Do not press the paper guides too tightly against the paper.  Doing this may cause the paper to fold.



-      Place the paper in the center of the manual feed slot between the paper guides.  If the paper is not centered, pull it out and insert it again at the center position.

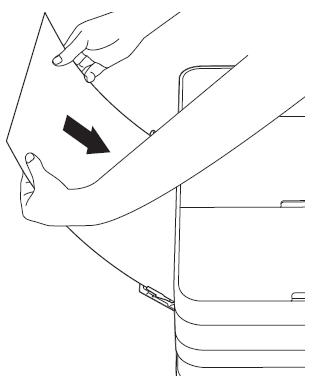

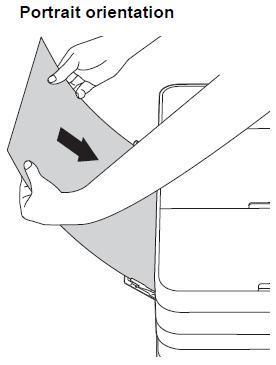

  1. Using both hands, put one sheet of paper into the manual feed slot until the front edge touches the paper feed roller.



-      Let go of the paper when you hear the machine pull it in a short distance.  The LCD will briefly read Manual Feed Slot ready.







NOTE:



When loading an envelope or sheet of thick paper, push the envelope into the manual feed slot until you feel the machine grab the envelope or paper.



When you are feeding Legal, Ledger, or A3 size paper into the manual feed slot, the machine holds the printed page after printing so that the page does not fall.  Once printing is complete, pull out the printed page and press OK.



f. The machine will print the page.



If the data does not print on one sheet, the LCD will prompt you to load another sheet of paper.  Follow these steps:



              i.Place another sheet of paper in the manual feed slot.



             ii.Press OK.



IMPORTANT NOTE: Make sure the machine has finished printing before you close the manual feed slot cover.





-      If the page printed successfully from the manual feed slot the issue is resolved.



-      If the page did not print go back to STEP 4a and try again.





5. Do blank sheets of paper feed out the back of the machine and the message "No Paper Fed Tray # 1 " or "No Paper Fed Tray # 2" is displayed when you try to print:



-      If no, continue to STEP 7.



-      If yes, remove the blank sheets of paper and close the jam clear cover located on the back of the Brother machine. Continue to STEP 6.













6.  Press OK to reset the machine.  If OK is not on the LCD, press DETAILS and then OK.



-       If the message displayed was "No paper Fed Tray #1" continue to STEP a.



-      If the message displayed was "No paper Fed Tray #2" go to STEP e

  1. Press on the touchscreen.



  1. Press Test Print



c.    Press Print Quality



d.    Press OK. A Print Quality Check Sheet will print.



-         If the page prints correctly and ejects completely from the machine, the issue is resolved. Press the red X to return to the standby mode. End the call

-         If the problem continues go to STEP 7.



e. Press COPY on the touchscreen.



f. Press 2 on the touchpanel.



g. Press OPTIONS on touchscreen.



h. Press TRAY SELECT.



i. Press TRAY #2.



j. Press OK.



k. Press BLACK START. The machine should print two blank copies.



-         If the page prints correctly and ejects completely from the machine, the issue is resolved. Press the red X to return to the standby mode. End the call

-         If the problem continues go to STEP 7.

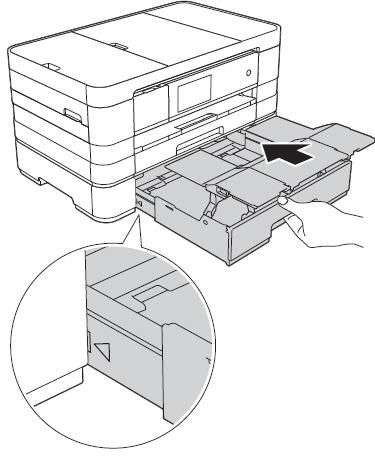

7.  Verify the paper tray is installed correctly.

a.    Apply a slight amount of force to the center of either Paper Tray # 1 or Paper Tray # 2 depending on your error message and try to push it into the machine. The front corner edges of the paper tray should be even with the sides of the machine.  The red line below in the picture shows where the 2 sides should meet evenly.

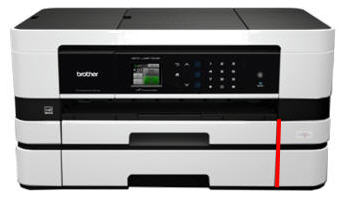

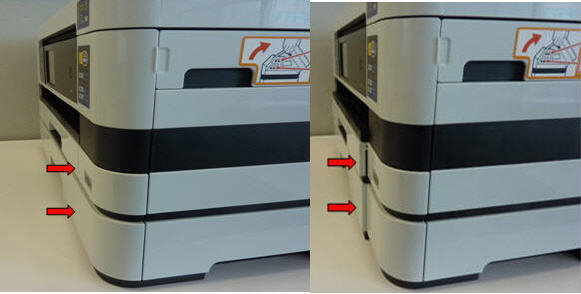

b.   Using the left edge of the cover as a reference point, verify the paper trays are even with the side of the machine. The red arrows in the image below are pointing to the areas of concern.









-        If the paper trays are even with the machine (not sticking out) as shown in the image on the left go to STEP 16.



-        If Tray#1 or Tray#2 are not even with the machine and are sticking out as shown in the image on the right continue to STEP 8.





8. Remove Paper Tray # 1 and Paper Tray # 2 from the machine.













9.  Place either your right or left thumb under the LCD display and your fingers on the top cover.

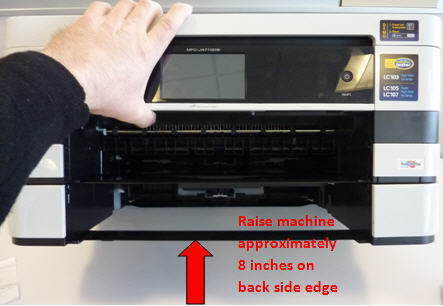

10.  Using your hand, lift the front of the machine approximately 8 inches off the surface.











11.  Look inside the back of the machine and remove any debris (paper scrap, paper clip, pen cap etc.) that may be preventing the paper tray(s) from being pushed in.



Also make sure the machine is on a flat smooth surface.  Not on top of a table cloth or wires.



NOTE:  If difficult to see, a flash light can be used for better lighting.



12. After looking for debris, gently lay the machine back down on the surface and reinstall both Paper Tray #1 and Paper Tray # 2 by slowly pushing the tray all the way in.  You should hear a slight snap or click once the tray is seated properly.













13.  Using the left edge of the ink cartridge cover as a reference point verify the paper trays are even with the side of the machine. The red arrows in the image below are pointing to the areas of concern.









-        If the paper trays are now even with the machine as shown in the image on the left continue to STEP 14.



-        If Tray#1 or Tray#2 are not even with the machine and are sticking out as shown in the image on the right continue to WARRANTY AND SERVICE OPTIONS



14. Press OK to reset the machine.



15. Test the machine:



-       If the message displayed was "No paper Fed Tray #1" continue to STEP a.



-      If the message displayed was "No paper Fed Tray #2" go to STEP e

  1. Press on the touchscreen.



  1. Press Test Print



c.    Press Print Quality



d.    Press OK. A Print Quality Check Sheet will print.



-         If the page prints correctly and ejects completely from the machine, the issue is resolved. Press the red X to return to the standby mode. End the call

-         If the problem continues go to STEP 16.



e. Press COPY on the touchscreen.



f. Press 2 on the touchpanel.



g. Press OPTIONS on touchscreen.



h. Press TRAY SELECT.



i. Press TRAY #2.



j. Press OK.



k. Press BLACK START. The machine should print two blank copies.



-         If the page prints correctly and ejects completely from the machine, the issue is resolved. Press the red X to return to the standby mode. End the call

-         If the problem continues go to STEP 16.



16.  Cleaning the pickup rollers.



-      To clean the rollers you will need a lint-free dry cloth and a lint-free cloth dampened with water.

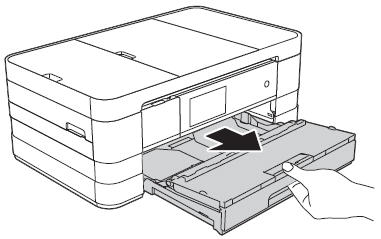

a.  Remove Paper Tray # 1 and Paper Tray # 2 from the machine.

















-         If the message "No Paper Fed Tray #1" was displayed on the LCD, continue to STEP 16b.



-         If the message "No Paper Fed Tray #2" was displayed on the LCD, go to STEP 16g.

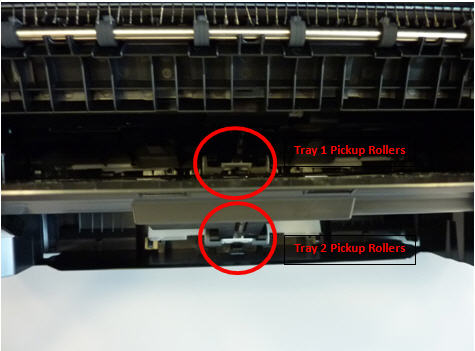

b.  Look inside the machine in the area where Tray #1 was installed and locate a set of UPPER gray rollers.  They will centered in the back of the machine. Refer to "Tray 1 Pickup Rollers" in the image below.

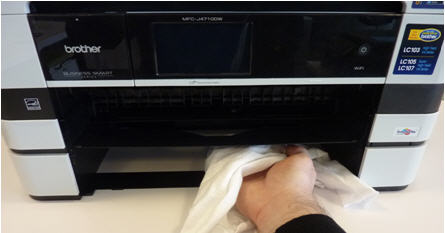

c.  Clean the gray rollers by placing the damp cloth on the palm of your hand and then slide you hand into the area of the machine where Tray #1  was installed. Using the damp cloth to clean the gray rollers (aggressively). The rollers will spin freely.









Although the area where the gray rollers is narrow and tight, the machine cannot be damaged when cleaning the rollers.  The rollers are on a movable plate and will move up and down.





d. Use the dry cloth to dry off both rollers.  Make sure both rollers are dry.



e.  Place Paper Tray #1 and Paper Tray #2 back into the machine.















f. Press OK to reset the machine and go to STEP 17.



g. Look inside the machine in the area where Tray#2 was installed and locate a set of lower gray rollers.  They will be centered in the back of the machine. Refer to "Tray 2 Pickup Rollers" in the image below.

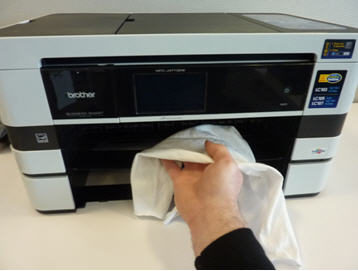

h. Clean the gray rollers by placing the damp cloth on the palm of your hand and then slide you hand into the area of the machine where Tray#2 was installed. Using the damp cloth to clean the gray rollers (aggressively). The rollers will spin freely.









i. Use the dry cloth to dry off both rollers.  Make sure both rollers are dry.



j. Place Paper Tray #1 and Paper Tray #2 back into the machine.















k. Press OK to reset the machine and continue to STEP 17.



17. Test the machine:



-         If the message displayed on the LCD was "No Paper Fed Tray #1" continue to STEP 17a.



-        If the message displayed on the LCD was "No Paper Fed Tray #2" go to STEP 17e.



  1. Press on the touch screen.



  1. Press Test Print.



c.    Press Print Quality.



  1. Press OK. A Print Quality Check Sheet (PQCS) will print.

-         If the message "No Paper Fed Tray #1" continues to appear on the LCD, go to STEP 18.



-         If a different message is displayed on the LCD refer to the solution for the message being displayed.



-      If the page prints, ejects completely from the machine and the print quality is good, the problem is resolved. Press the red X to return to standby mode.



e. Press COPY on the left side of the touch screen.



f. Press 2 on the touchpanel.



g. Press OPTIONS on the touchscreen.



h. Press TRAY SELECT.



i. Press TRAY #2.



j. Press OK.



k. Press BLACK START. The machine should print 2 blank copies.





-        If the message "No Paper Fed Tray #2" continues to appear on the LCD, go to STEP 18.



-         If a different message is displayed on the LCD refer to the solution for the displayed message.



-        If the copies print, ejects completely from the machine, then the problem is resolved.





18.  Verify the paper is installed correctly in the paper tray:



  1. Remove Paper Tray #1 or Paper Tray #2 depending on the error message displayed on the machine.

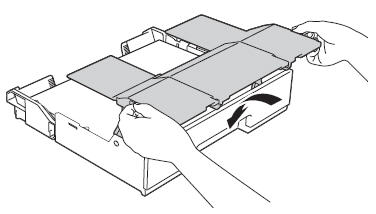

b. Lift the Tray Cover (1) and remove the paper.







TRAY#1











 TRAY#2

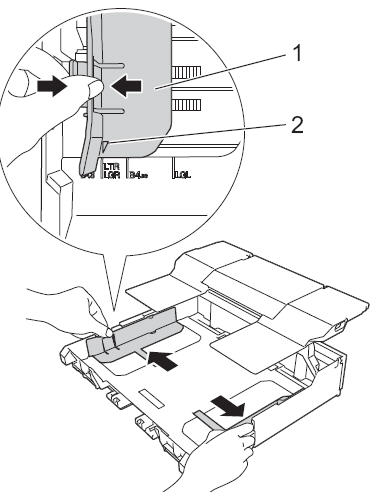

c. Adjust the paper width (1) and length (2) guides to fit letter size paper (LTR). The pointers (3) should line up with the indicator marks on the tray.





TRAY#1





TRAY#2



d. Fan the stack of paper well to avoid paper jams and miss-feeds.









-      The paper must be uniformly stacked (same size, type and weight)



-      Do not use paper that is damaged, curled, wrinkled, irregularly shaped, extremely shiny, highly textured, or paper that was previously printed by a printer.

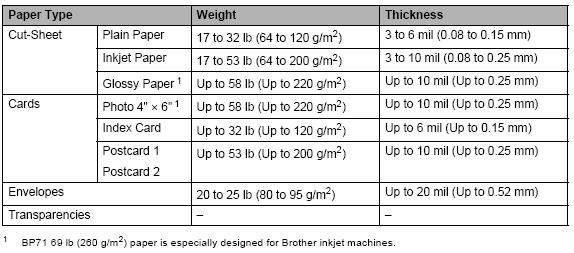

-      Be sure to follow the paper specifications and paper tray capacity information listed below.









-        Be careful NOT to overfill the tray. Doing so may cause miss-feeds or paper jams and could damage your machine.



e. Gently insert the paper into the paper tray. Be careful not to push the paper too far into the tray.  The paper must be completely flat in the paper tray or feed problems may occur.







f. Close the paper tray cover.







    TRAY#1





   TRAY#2





g. Reinstall Paper tray #1 or Paper Tray #2 by slowly pushing the tray all the way in.  You should hear a slight snap or click once the tray is seated properly.



h. Press OK to reset the machine.



19. Test the machine by printing the Print Quality Check Sheet.



-         If the message displayed on the LCD was "No Paper Fed Tray #1" continue to STEP 19a.



-        If the message displayed on the LCD was "No Paper Fed Tray #2" go to STEP 19e.



  1. Press on the touch screen.



  1. Press Test Print.



c.    Press Print Quality.



  1. Press OK. A Print Quality Check Sheet (PQCS) will print.



-         If the message "No Paper Fed Tray #1" continues to appear on the LCD, go to STEP 20.



-        If a different message is displayed on the LCD refer to the solution for the message being displayed.



-        If the page prints, ejects completely from the machine and the print quality is good, the problem is resolved. Press the red X to return to standby mode.





            e. Press COPY on the touchscreen.



          f. Press 2 on the touchpanel.



          g. Press OPTIONS on touchscreen.



          h. Press TRAY SELECT.



          i. Press TRAY #2.



            j. Press OK.



          k. Press BLACK START. The machine should print two blank copies.



-         If the message "No Paper Fed Tray #2" continues to appear on the LCD, go to STEP 20.

-
If a different message is displayed on the LCD refer to the solution for the message being displayed.

-
If the page prints, ejects completely from the machine, then the problem is resolved.



20.  Replace the Paper



-         The paper in the paper tray must be replaced with a new batch of letter size paper. Using new paper ensures the paper installed in the tray is not damaged or dirty (paper dust). See STEP 18 and STEP 19 for instructions on loading paper in the paper tray correctly and testing the machine.



-        If you do not have extra paper at this time, we highly recommend you try new, fresh paper before referring the warranty and service options.


-        If the message "No Paper Fed Tray #1" or "No Paper Fed Tray #2" continues to be displayed on the LCD, after replacing the paper refer to WARRANTY AND SERVICE OPTIONS.



-         If a different message is displayed on the LCD refer to the solution for the displayed message.



WARRANTY AND SERVICE OPTIONS:



If the problem continues and your machine is within warranty, you can locate a Brother Authorized Service Center (ASC) in your area by clicking on the link below:

http://www.brother-usa.com/service/default.aspx or contact Brother Customer Service by calling 1-877-Brother (1-877-276-8437) Monday through Friday, excluding holidays.



If your machine is out of warranty, you can locate a Brother Authorized Service Center using the information listed above.



Was this helpful?
Please help us to improve our services by letting us know if this information was helpful:
