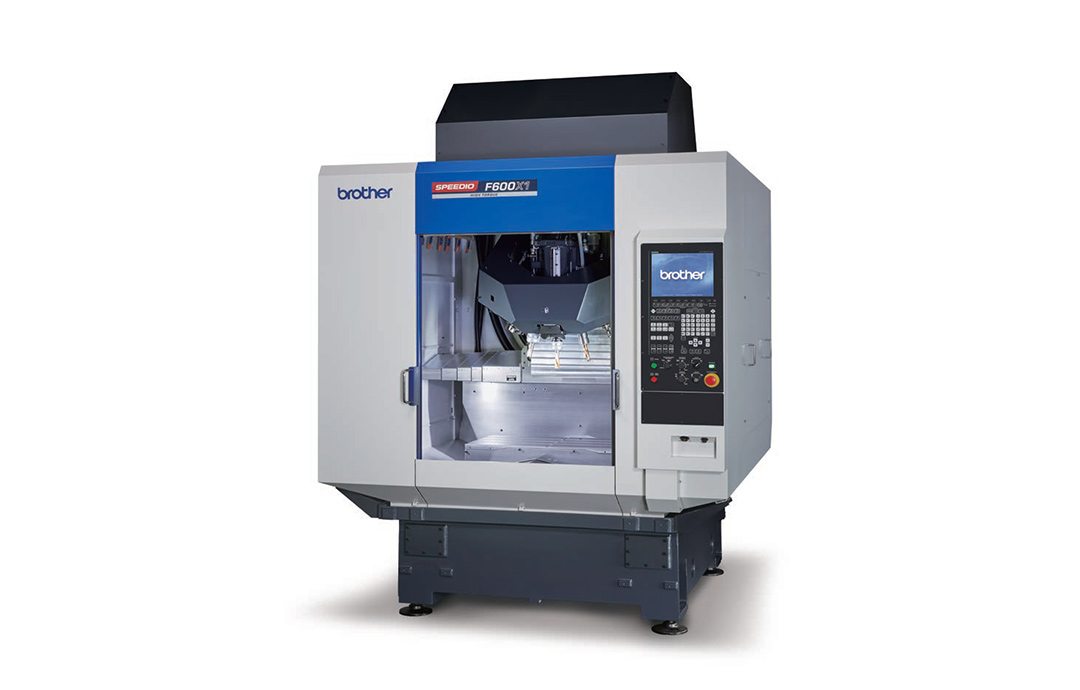

New SPEEDIO Model

High machining capabilities and stable machining have been achieved.

Recommended machining

  • Automobile
  • General
Machine specifications
item F600X1 *9
CNC unit CNC-C00
Travels X axis
[mm (inch)]
600 (23.6)
Y axis
[mm (inch)]
400 (15.7)
Z axis
[mm (inch)]
350 (13.7)
Distance between table top and spindle nose end [mm (inch)] 200 - 550 (7.8 - 21.6)

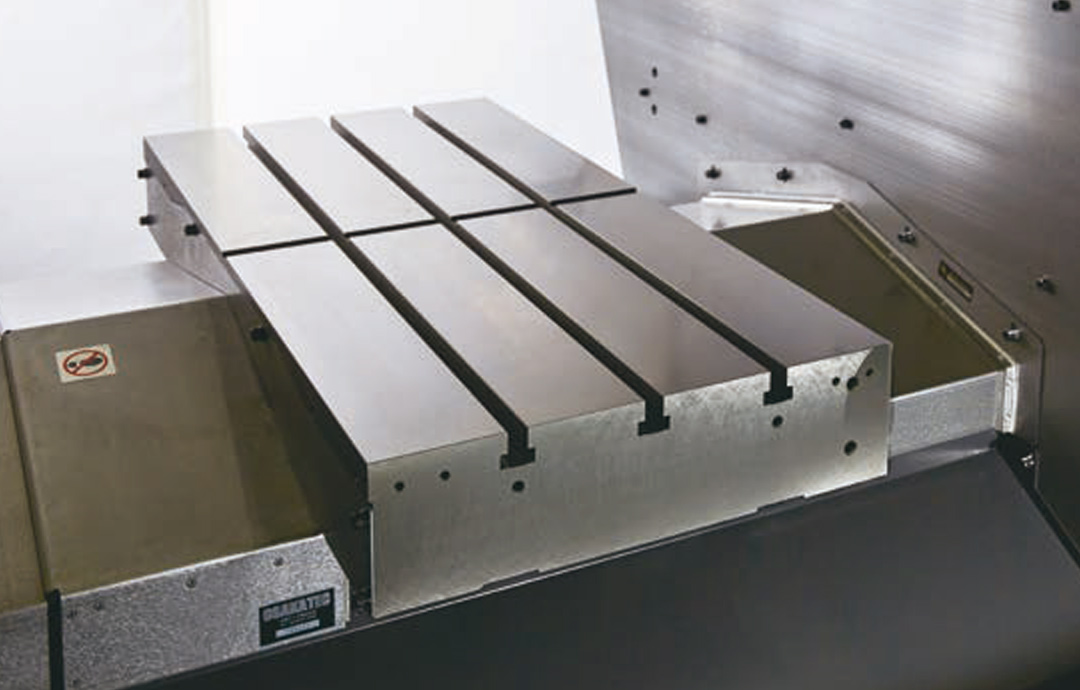

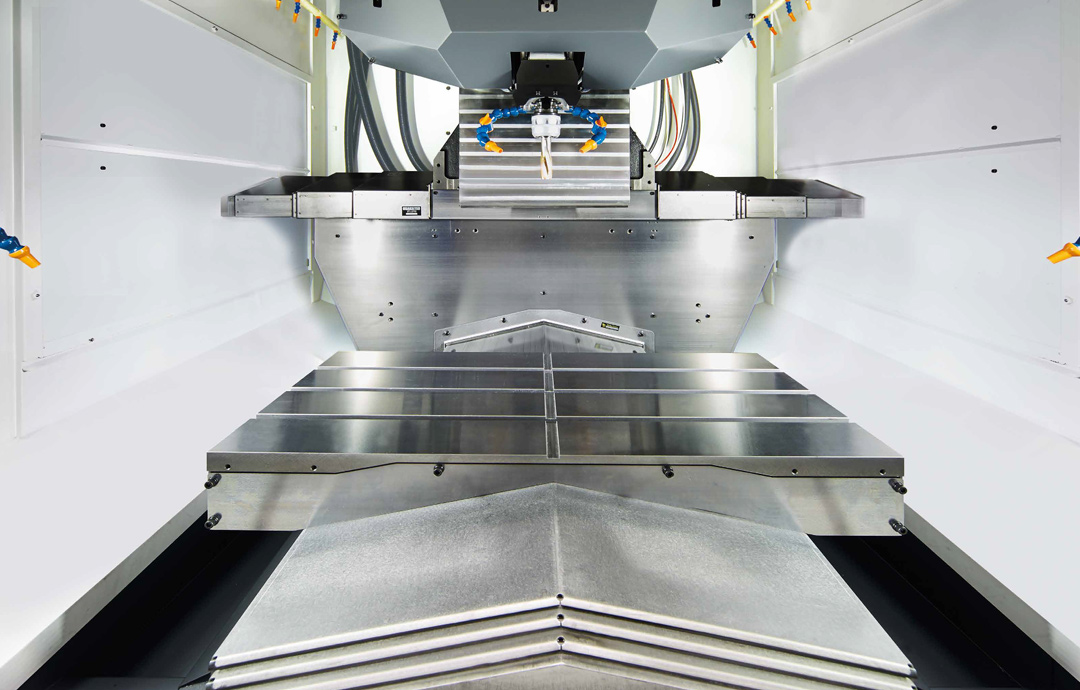

Table Work area size
[mm (inch)]
800 x 400 (31.4 x 15.7)
Max.loading capacity
(uniform load)
[kg (lbs)]
400[881] (500[1,102]) *6

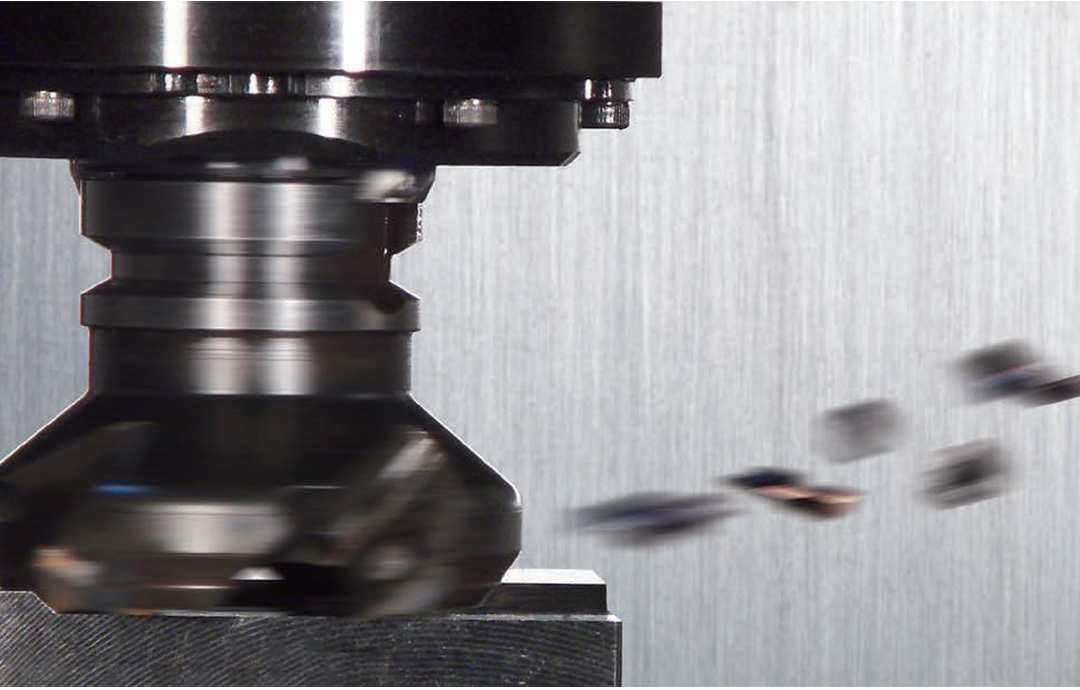

Spindle Spindle speed
[min-1]
10,000min-1 high-torque specifications : 1 - 10,000
Speed during tapping
[min-1]
MAX. 6,000
Tapered hole 7/24 tapered No.30
BT dual contact system(BIG-PLUS) Optional
Coolant Through Spindle(CTS) Optional
Feed rate Rapid traverse rate
(XYZ-area)
[m/min (inch/min)]
50 x 50 x 50 (1,969 x 1,969 x 1,969)
Cutting feed rate
[mm/min (inch/min)]
X, Y, Z : 1 - 30,000 (0.04 - 1,181) *7
ATC unit Tool shank type MAS-BT30
Pull stad type*3 MAS-P30T-2
Tool storage capacity
[pcs.]
14/22
Max. tool length
[mm (inch)]
250 (9.8)
Max. tool diameter
[mm (inch)]
110(4.3)/ 125(4.9) No adjacent tool
Max. tool weight*4
[kg (lbs)]
3.0 (6.6) (Total tool weight : 25 (55.1) for 14 tools, 40 (88.1) for 22 tools)
Tool selection method Random shortcut method
Tool change time*5 Tool To Tool [sec.] 0.7sec (14 tools), 0.8sec (22 tools)
Chip To Chip [sec.] 1.6sec (14 tools), 1.7sec (22 tools)
Electric motor Main spindle motor (10 min/continuous) *6 [kW] 10,000min-1 high-torque specifications : 12.8/9.2
Axis feed motor [kW] X,Y : 1.0 / Z : 1.8
Power source Power supply AC 200V ±10%, 50/60Hz ±1Hz
Power capacity (continuous) [kVA] 10,000min-1 high-torque specifications : 10.4
Air supply Regular air pressure [MPa] 0.4 - 0.6 (recommended value : 0.5MPa)*7
Required flow [L/min] 45
Machine dimensions Height
[mm (inch)]
2,750 (108.2)
Required floor space (with control unit door open) [mm (inch)] 1,800 x 2,465 [3,162] (70.9 x 97.0 [124.5])
Weight
(including control unit, machine cover)
[kg (lbs)]
3,600 (7,937)
Accuracy*8 Accuracy of bidirectional axis positioning (ISO230-2:2006)
[mm (inch)]
0.006 - 0.020 (0.00024 - 0.00079)
Repeatability of bidirectional axis positioning (ISO230-2:2006)
[mm (inch)]
Less than 0.004 (0.00016)
Front door | 2 doors
Standard accessories Instruction Manual (1 set), anchor bolts (4 pcs.), leveling bolts (4 pcs.), machine cover (manual door)
  • *1   Actual tool weight differs depending on the configuration and center of gravity.The figures shown here are for reference only.
  • *2   Spindle motor output differs depending on the spindle speed.
  • *3   Measured in compliance with ISO standards and Brother standards.
  • *4   Brother specifications apply to the pull studs for CTS.
  • *5   Measured in compliance with JIS B6336-9 and MAS011-1987.
  • *6   Acceleration must be adjusted for Y axis.
  • *7   When high accuracy mode B is used (When not used, 1 - 10,000 mm/min for X/Y axes and 1 - 20,000 mm/min for Z axis).
  • *8   Regular air pressure varies depending on the machine specifications, machining program details, or use of peripheral equipment.Set the pressure higher than the recommended value.
  • *9   The machine needs to be equipped with a relocation detection device depending on the destination. Machines equipped with a relocation detection device come with “RD” at the end of the model name.

To the top on this page

NC Unit specifications
CNC model CNC-C00
Control axes 5axes ( X, Y, Z, additional axes)
Simultaneously controlled axes Positioning 5 axes (X, Y, Z, A, B)
Interpolation Linear : 4 axes ( X, Y, Z, one additional axis)
Circular : 2 axes Helical / conical : 3 axes (X, Y, Z)
Least input increment 0.001 mm, 0.0001 inch, 0.001 deg.
Max.programmable dimension 9999.999mm,999.9999inch
Display 12.1-inch color LCD
Memory capacity Approx.100 Mbytes (Total capacity of program and data bank)
External communication USB memory interface, Ethernet, RS232C 1ch
No.of registrable programs 4,000 (Total capacity of program and data bank)
Program format NC language, conversation (changed by parameter)
conversion from conversation program to NC language program available
Standard NC functions
  • Absolute/incremental
  • Inch/metric
  • Corner C/Corner R
  • Rotational transformation
  • Synchronized tap
  • Coordinate system setting
  • Dry run
  • Restart
  • Backlash compensation
  • Pitch error compensation
  • Raid traverse override
  • Cutting feed override
  • Alarm history(1,000 pieces)
  • Startus log
  • Machine lock
  • Computer remote
  • Built-in PLC
  • Motor insulation resistance measurement
  • Operation log
  • High accuracy mode B I
    (look-ahead 30blocks)
  • High-accuracy mode A III
  • Tool length measurement
  • Tool life management / spare tool
  • Background editing
  • Graphic display
  • Subprogram
  • Herical/conical interpolation
  • Tool washing lter with lter clogging detection
  • Automatic power off
    (energy saving function)
  • Servomotor off standby mode
    (energy saving function)
  • Chip shower off delay
  • Automatic coolant off
    (energy saving function)
  • Automatic work light off
    (energy saving function)
  • Heat expansion compensation system II (X,Y,Z axes)
  • Tap return function
  • Automatic workpiece measurement*1
  • Waveform display
  • Operation level
  • External input signal key
  • Expanded workpice coordinate system(NC)
  • Scaling(NC)
  • Mirror image(NC)
  • Menu programming(NC)
  • Program compensation(NC)
  • Tool length compensation(NC)
  • Cutter compensation(NC)
  • Macro function(NC)
  • Local coordinate system(NC)
  • One-way positioning(NC)
  • Opeation in tape mode(NC)
  • Operation program(Conv.)
  • Schedule program(Conv.)
  • Automatic tool selection(Conv.)
  • Automatic cutting condition setting(Conv.)
  • Autmatic tool length compensation setting(Conv.)
  • Autmatic cutter compensation setting(Conv.)
  • Autmatic calculation of unknown number input(Conv.)
  • Machining order control(Conv.)
Optional NC functions
  • Memory expansion
    (Approx. 500 Mbytes)
  • High accuracy mode B II
    (look-ahead 200 blocks, smooth path offset)
  • Spindle override
  • Submicron command*2(NC)
  • Interrupt type macro(NC)
  • *1  Measuring instrument needs to be prepared by users.
  • *2  Minute block processing time can be changed. As there are some restrictions, please contact your local distributor for details.
  • *3  When the submicron command is used, changing to the conversation program is disabled.
  • *  "Control axes" and "Simultaneously controlled axes" indicate the maximum number of axes. These are different depending on the destination or specifications.
  • *  Ethernet is a trademark or registered trademark of XEROX in the United States.
  • *  Functions listed under (NC) and (Conversation) are available only for NC programs and conversation programs respectively.
