Discontinued

ADS2800W

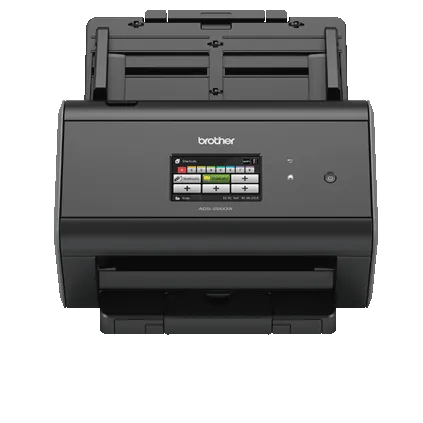

Brother ADS2800W Wireless Desktop Document Scanner with Touchscreen

Name: Brother ADS2800W Wireless Desktop Document Scanner with Touchscreen
Brand: Brother
SKU: ADS2800W
Price: 449.99 USD

$449.99

Single and double-sided scanning up to 40ppm‡

3.7" color Touchscreen display

50-page capacity auto document feeder‡

About the Product

In the Box

Additional Information

Main Features

Fast Scan Speeds.

Scans single and double-sided materials in a single pass, in both color and black/white, at up to 40ppm‡.

Flexible Connectivity.

Built-in wireless and Gigabit Ethernet networking and USB 2.0 interface for local connectivity.

3.7" Color Touchscreen Display.

Features 48 programmable shortcuts for one-touch scanning to common destinations. Enables direct scanning to a variety of cloud applications including GOOGLE DRIVE™, EVERNOTE®, BOX and more‡.

Advanced Security Features.

Enterprise Security (802.1x), network user authentication and corporate email address lookup via Active Directory (including LDAP).

Integrated Image Optimization Feature.

Including hole punch removal, background removal, blank page removal, deskew support, and more.

Advanced Scanning Features.

Such as 2-in-1 Mode for capturing 11" x 17" documents, and Continuous Scan Mode for scanning unlimited pages into a single file.

Awards & Recognition

Detailed technical specs to help you understand performance, compatibility, and requirements.

Cerner Validated certification seal with green banner and checkmark icon

Specifications

Detailed technical specs to help you understand performance, compatibility, and requirements.

Connectivity

Dimensions

General

Paper Handling

Power

Scan

Document Handling

Features

Security Features

What’s Included

Feature	Value
Carton Content	ImageCenter ADS-2800W Scanner, AC Adapter, USB Cable, Carrier Sheet, Quick Setup Guide, Installation DVD, User's Guide (accessible from DVD), Warranty Sheet, and Product Registration Sheet
Warranty	1 Year Limited

Feature	Value
Standard Interface	Wireless 802.11 b/g/n, Gigabit Ethernet, 10/100 Base-TX Ethernet, Wi Fi Direct, Hi-Speed USB 2.0
Mobile Device Compatibility‡	BrotheriPrintandScan
Industry Specific Certifications	Cerner Certified, Citrix Ready
Brother Cloud Apps‡	Scan to Mobile, Scan to Searchable PDF, Scan To PowerPoint, Scan To Excel, Scan to Word, Easy Scan to E-mail
Supported Network Protocols IPv4	ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS/NetBIOS Name Resolution, DNS Resolver, mDNS, LLMNR Responder, Custom Raw Port/Port 9100, IPP, SMTP Client, FTP Client and Server, LDAP, CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS Server, TFTP Client and Server, ICMP, Web Services (Print/Scan), SNTP Client
One Push Wireless Setup	Wi-Fi Protected Setup™
Kofax VAR Elite™ / Kofax Express™ Compatibility‡	Yes

Feature	Value
Unit Weight	10
Unit Dimensions	12.1" x 10.2" x 9.8 "
Carton Dimensions	15" x 10" x 13"

Feature	Value
ENERGY STAR Certified	Yes
Power Source	AC Adapter
Product Power Consumption Power Off Ready Scanning Sleep	0.12W / 3.0W / 27W / 1.9W
Operating Environment Humidity	20% - 80%
Operating Environment Temperature	41°F - 95°F (5°C - 35°C)

Feature	Value
Scan Drivers Included‡	TWAIN, WIA, ICA, ISIS, SANE
Duplex Scanning	Yes
"Scan To" Feature‡	Email, Image‡, Print, Easy Scan to Email‡, OCR‡, File‡, FTP, USB Memory Stick, Network Folder (CIFS - Windows only), E-mail Server‡, SharePoint, SSH Server (SFTP), Cloud Services‡ (Web Connect)
Advanced Scanning Features	Continuous Scan, ADF Auto Deskew, Blank Page Skip, ID Scan‡, Scan Profiles
Image Sensor	Dual CIS
Scan File Formats	Windows Bitmap (BMP), Microsoft Office Word (DOCX), JPEG (JPG), PDF Single-page/Multi-page (PDF/A, High Compression PDF, XML Paper Specification (XPS), Portable Network Graphics (PNG), Microsoft Office PowerPoint (PPTX), TIFF Single-page/Multi-page (TIF), Text (TXT)
Duplex Scan Speeds (black & color) (max ipm)‡	80
Optical Scan Resolution	Up to 600 x 600 dpi
Paper Jam Sensor	No
Barcode Types Supported	UPC-A, UPC-E, JAN8, JAN13, Code39, Code93, ITF, Code128, Codabar, GS1_128, PDF417, QR Code, Data Matrix
Color Dropout	Red, Blue, Green, Custom
Interpolated Scan Resolution‡ (max. dpi)	Up to 1200 x 1200 dpi
Scan Driver OS Compatibility‡	Windows, Mac OS®, Linux
Scanner Type	Sheetfed
Scanning Capability	Black and White, Color
Scanning Modes	24BitColor;8bitgrayscale;1BitMono

Feature	Value
Plastic Card Thickness	Embossed: up to 1.4mm (55 mil)
Daily Duty Cycle (max. pages)‡	6000
Media Types	Plain, Receipts (carrier sheet recommended), Photos (carrier sheet required), Business Cards, Plastic/Laminated Cards (including embossed), Bond

Feature	Value
Security Functions	TLS/SSL, IPSec, Setting Lock, Active Directory (LDAP), Secure Function Lock
Wireless Network Security‡	802.1x, LEAP(CKIP), EAP-FAST(TKIP/AES), PEAP, EAP-TLS, EAP-TTLS, EAP (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
Security Protocols (Wireless)	SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP3, IMAP4), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPSec
Security Protocols (Wired)	SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP3, IMAP4), SNMP v3, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPSec

Daily Duty Cycle ‡	Maximum number of scanned pages per day can be used to compare designed durability between like Brother products. For maximum product life, it is best to choose a scanner with a daily duty cycle that exceeds your requirements.
Direct Scanning Destinations ‡	Direct-to-cloud scanning requires Internet connectivity and account with desired service; additional purchase may be required. Evernote® is a trademark of Evernote Corporation and used under license.
Mobile Device Compatibility‡	Requires connection to a wireless network.
Scan Drivers Included ‡	ISIS driver not available for Windows® XP. SANE driver available for download from Brother Solutions Center. Visit http://solutions.brother.com.
Web Connect‡	Requires Internet connectivity and account with desired service; additional purchase may be required. Evernote® is a trademark of Evernote Corporation and used under license.
Duplex Scan Speed ‡ (ipm)	Scan speed with all advanced features turned off, LTR at 300dpi.
Max. Paper Size‡ (single sheet)	Single sheet, single-sided, 14-29lb bond.
USB Direct Interface‡	USB flash memory drive not included.
Kofax VRS®‡	Certified with Kofax VRS® versions Elite 5.1 and Express 3.2. Windows® only. Additional purchase required.
Scanning Speed ‡ (ppm)	Scan speed with all advanced features turned off, LTR at 300dpi.
Media Weights	For best performance, carrier sheet use is recommended for media weights under 39 g/m2.
Operating System Compatibility ‡	For complete OS compatibility visit http://support.brother.com.
Scan to Features	When connected to a PC with applicable software.
