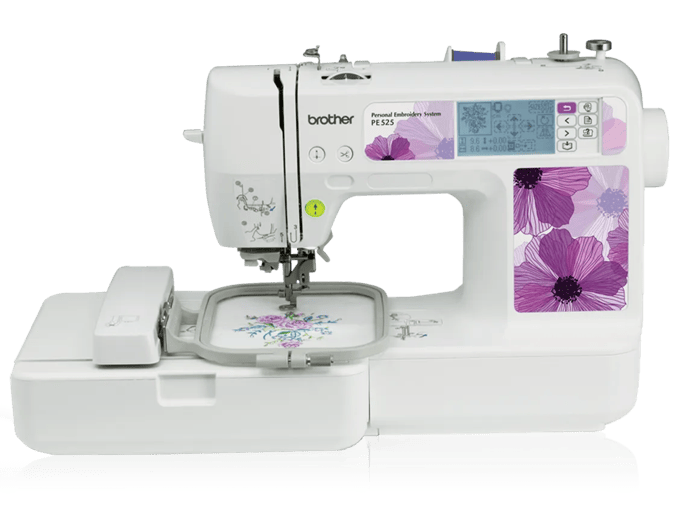

Brother PE525 Embroidery Machine
70 Built-in Embroidery Designs and 5 Fonts
4” x 4” Maximum Embroidery Area
400spm Maximum EmbroiderySpeed
Explore the creative possibilities of custom embroidery with the affordable, reliable, and feature-rich PE525 embroidery machine. The PE525 comes with features that help make embroidery fun and easy. Add new, fashionable embellishments to clothing in your closet, personalize a child's belongings with custom designs and lettering, or turn everyday pillows and blankets into customized gifts for friends and family. With the PE525, the options are virtually limitless. The PE525 features a 4"x4" embroidery area, 70 built-in designs, 120 frame patterns, and 5 font styles for lettering and monogramming. Included with this machine is a 25-year limited warranty and free customer phone and online technical support for the life of the product.
Feature | Value |
|---|---|
| USB Cable | Included |
| Warranty | 1/2/25 Year Limited Warranty |
Specifications
Detailed technical specs to help you understand performance, compatibility, and requirements.
Feature | Value |
|---|---|
| Unit Weight | 18.078 |
| Carton Dimensions | 19" x 15" x 15" |
Feature | Value |
|---|---|
| Accessory Storage | No |
| Mouse Capability by USB | No |
| Adjustable Presser Foot Pressure | No |
| UL/CSA Listed Voltage | 110v |
| Adjustable Screen Brightness | Yes |
| Thread Tension | Manual |
| USB | No |
| Thread Sensor On/Off | No |
| Realistic Preview | No |
| UL/CSA Listed | Yes |
| Screensaver | No |
| Included Accessory Feet | Embroidery Foot |
| Stitch Selector Type | Touch Panel |
| Lighting Type | LED |
| Quick Set Bobbin | Yes |
| Automatic Thread Cutter | Yes |
| Memory Card Reader | Yes |
| Thread Sensor | Upper Thread Sensor, Bobbin Sensor |
| Needle Stop Position Up/Down | Yes |
| Built-in Memory | No |
| LCD Display Size | 2.7" x 1.4" |
| Needle Threading System | Advanced |
| Built-in Languages | Yes |
Feature | Value |
|---|---|
| Frame Designs Shapes | 10 |
| Included Embroidery Hoops | 4" x 4" |
| Pattern Rotating Increments | 1 Degree, 10 Degrees, 90 Degrees |
| On-Screen Help | Yes |
| Built-in Alphabet Fonts | 5 |
| Thread Anchor | No |
| Curved Text on Screen Editing | No |
| Link Multiple Machines | N/A |
| Built-in Designs | 70 |
| My Custom Design Feature | No |
| Print and Stitch Technology | No |
| Embroidery Position Marker | No |
| Adjustable Design Icon Size Setting | No |
| Programmable Monochrome Embroidery | No |
| Maximum Embroidery Area | 4" x 4" |
| Eyelet Threading System | No |
| Trial Position Layout Function | Yes |
| Color Shuffling Function | No |
| Space Reduction among Embroidery Alphabets | No |
| Computer Connectivity | Yes |
| On-Screen Automatic Density Adjustment | No |
| Automatic Feed Thread Cutting | No |
| Sewing Decorative Stitches with Embroidery Arm Attached | No |
| Drag and Drop Editing | No |
| Built-in Embroidery Lettering Alphabet Fonts | 5 |
| Cap Frame Capability | NA |
| Light and Audio Cue to Alert Thread Breakage | No |
| Built-in Border Function | No |
| Resume Function | No |
| Light and Audio Cue to Alert Finished Designs | No |
| Monogramming Font Styles | No |
| Speed Adjustment | No |
| Light and Audio Cues with On/Off Modes | No |
| Thread Wiper | No |
| Adjustable Embroidery Speed Settings | No |
| On-Screen Editing | No |
| Light and Audio Cue to Alert Thread Change | No |
Feature | Value |
|---|---|
| USB Cable | Included |
| Warranty | 1/2/25 Year Limited Warranty |
