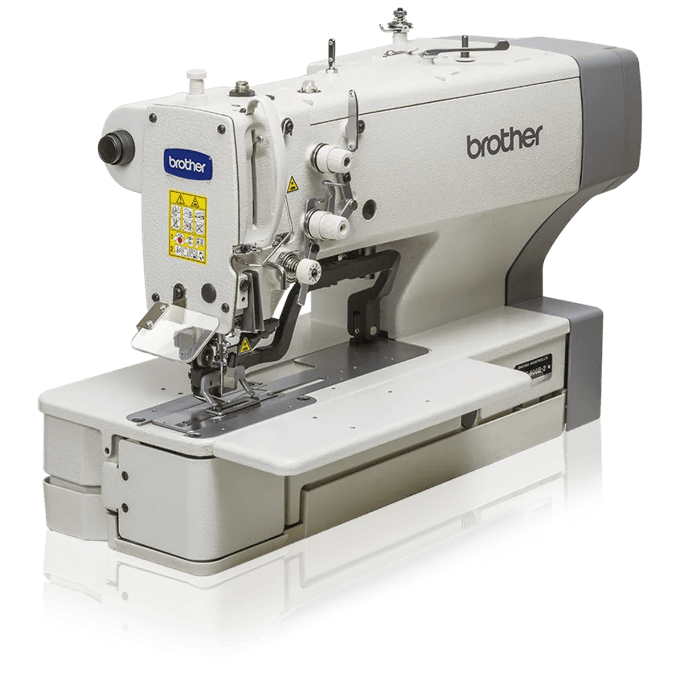

BHE800B22TH420V104
Electronic Direct Drive Lockstitch Button Holer for Woven Applications
21 pre-programmed patterns
Direct Drive, Electonic control (knit spec)
Sewing Speeds up to 4,000spm
Main Features
Beautiful Sewing Finishes Even on Fine Patterns
Minimum resolution of needle zigzag is reduced to 0.5mm, preventing the fuzz caused by the cutter.
Easy for Difficult to Sew Materials with Underlay
With the underlay functionality, it prevents stretchy materials from stretching.
Easy & Operator-Intuitive Operation Panel
LCD display indicates display items with icons and letters. Setting and checking of sewing patterns as well as changing sewing modes are easy to understand and carry out. It also supports multiple languages.
Top Class Energy Savings
Thanks to the direct drive system, it keeps the power transmission loss of the motor to a minimum helping yield high energy savings. The power consumption of this machine is approximately 50% less than that of the previous model.
Comfortable Sewing with Less Noise
V-belt sound has been deleted by the direct drive system. Both less noise and comfortable environment help reduce stress and fatigue of the operators who operate it for long hours.
Easy Positioning
The presser foot lifter is driven by a pulse motor so that the height can be adjusted as desired. This makes insertion and removal of the material easier and reduces working fatigue.
Specifications
Detailed technical specs to help you understand performance, compatibility, and requirements.
