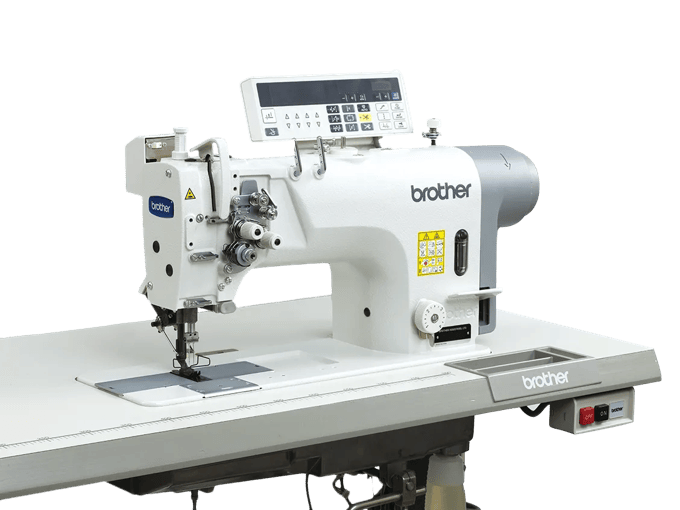

BT8422C403N64XD402
Twin Needle Direct Drive Lock Stitcher with Thread Trimmer
Twin needle, needle feed w/thread trimmer
Medium weight materials
Sewing Speeds up to 4,000spm
Main Features
High Energy Saving
The power consumption of the machine is approximately 61% less than that with the V-belt driven system (with an AC servo motor) and approximately 12% less than that of T-8421B.
Better Response and More Comfortable Sewing
A better response to the pedal operation at both the start and stopping of sewing with the motor and control box. The time required to reach the maximum sewing speed is approximately 25% less compared to those driven by the V-belt driven system (with an AC servo motor), or approximately 7% less to T-8421B. The needle up stop and needle down stop positions can be set to enhance productivity.
Efficiency Improvement
A downsized and flat control box provides a larger leg space allowing to help alleviate a sense of fatigue of operators who have to sit in front of the machines in a fixed position for hours.
Prevents Bird's Nests
Stabilized motor stop position at the time of thread trimming reduces the bobbin racing, preventing bird's nests, which is great when sewing light materials.
User-Friendly Operation Panel
The operation panel is easy to see and use. The size of the panel keys and pictograms are double those of the conventional models.
Clean Sewing with No Oil Staining
Included is a sealed oil tank. Oil is only supplied in the minimum quantities needed to the parts that require it so that high-speed sewing can be carried out without staining.
Specifications
Detailed technical specs to help you understand performance, compatibility, and requirements.
