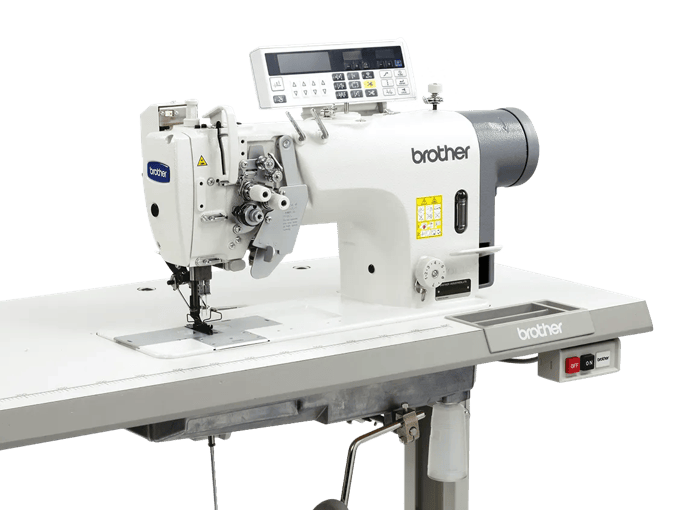

BT8752C405N64XDC12
Twin Needle Direct Drive Split Needle Bar Lock stitcher with Large Hook and Thread Trimmer
Twin needle, needle feed w/TT, split ndl. bar
Heavy weight (denim) materials
Sewing Speeds up to 3,000spm
Main Features
User-Friendly Operation Panel
The operation panel is easy to see and use. The size of the panel keys and pictograms are double those of the conventional models.
Clean Sewing with No Oil Staining
Included is a sealed oil tank. Oil is only supplied in the minimum quantities needed to the parts that require it so that high-speed sewing can be carried out without staining.
Feed Method Can Be Switched to Suit the Sewing Application
There is a function to switch between needle feed and lower feed, the needle feed is effective in preventing uneven material feeding, and lower feed prevents puckering and is ideal for making quick and frequent turns. The operator can select the optimum feed method according to the material and the process for superior sewing quality.
Excellent Material Compatibility
The angle of the feed dog can be adjusted and the height as well making sewing easier. The thread take-up amount can be adjusted as well so that a wide range of different materials can be sewn.
Easy Gauge Part Replacement
Cam adopted in the lateral position adjustment mechanism for the rotary hook base allows for easy fine adjustments so that the clearance between the needle and rotary hook point can be easily made, increasing the efficiency of replacing gauge parts.
Enhanced Sewing Quality
Optimized floating presser foot for long pile materials prevents damage to the material and eases sewing curves.
Specifications
Detailed technical specs to help you understand performance, compatibility, and requirements.
