BZ8550AA3101812612

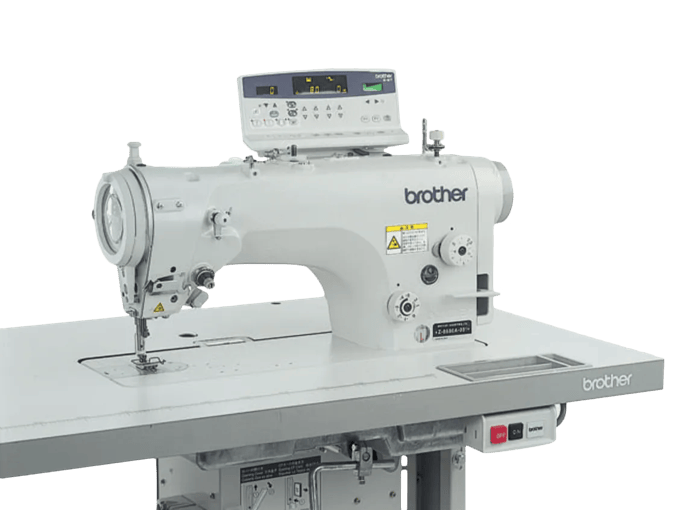

Electronic Direct Drive Zigzag Lock Stitcher with Back Tacker
Electronic, direct drive, w/condensed stitch
14 built in pre-programmed stitch patterns
Sewing speeds up to 5,000spm
Main Features
Clean Sewing.
The Z-8550A is equipped with a sealed oil tank, supplying constant clean oil only to the rotary hook. There is no oil around the needle bar and thread take-up mechanism, prevent oil staining.
Efficient Energy Savings.
Electrical power consumption has been lowered to approximately 50% of that of our conventional V-belt driven system (AC servo motor).
Comfortable Sewing.
The direct drive system responds to the operator's control with ease.
No needle deflection or position slippage, even at high-speed sewing.
The needle moves perpendicular to the material so that needle deflection does not occur even at high-speed sewing. And the pulse motor with servo control, adopted fro the zigzag mechanism, prevents position slippage.
Low noise and vibration allow for stress-free operation.
The high-rigidity frame and well-balanced parts details realized by computer analysis have reduced the noise and vibration to the minimum, freeing operators from fatigue and stress.
Plain zigzag, 3-step zigzag, scallop patterns, and T-stitches are provided
The basic 8 types, 14 sewing patterns are built-in. Users do not need to have multiple cams for each sewing pattern, which allows excellent cost savings.
