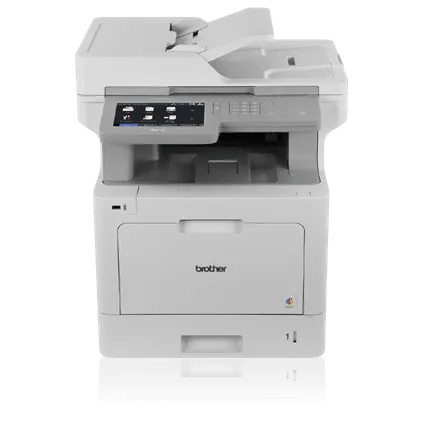

Brother MFC-L9570CDW Business Color Laser All-in-One Printer

Name: Brother MFC-L9570CDW Business Color Laser All-in-One Printer
Brand: Brother
SKU: MFCL9570CDW
Price: 899.99 USD

$899.99

current price $899.99

Low total cost of ownership

6,500-page cartridges included‡

Advanced security features

About the Product

In the Box

Additional Information

Main Features

Fast, high-quality business printing and copying.

With print speeds up to 33 pages per minute in both color and black‡, you no longer have to wait for high-impact business documents.

Low total cost of ownership.

Includes Brother Genuine super high-yield 6,500-page cartridges for built-in value. For even lower cost printing, use Brother Genuine ultra high-yield 9,000-page replacement cartridges‡.

Advanced security features.

Includes an integrated NFC card reader for easy badge authentication and Active Directory support for network user authentication. Advanced features help protect against unauthorized device access and help control costs by restricting printing on a per user or group basis.

7" color Touchscreen display.

Offers easy menu navigation and creation of up to 64 customized shortcuts. Plus, scan to popular business cloud services directly from the Touchscreen including: EVERNOTE®, DROPBOX, GOOGLE DRIVE™, ONENOTE, and more‡.

Scalable paper handling‡.

A 250-sheet capacity paper tray is adjustable for letter or legal size paper along with a 50-sheet capacity multi-purpose tray for printing letterhead and alternative media. For additional capacity, optional paper trays are available in 250-sheet or 500-sheet capacities – up to 1,300 sheets total capacity. Alternatively, a tower tray with stabilizer option includes four 520-sheet trays for a total input capacity of 2,380 sheets.

High-speed scanning to a wide variety of destinations.

Fast scan speeds‡ via an 80-page capacity auto document feeder for single-sided pages up to 52ipm, and double-sided pages up to 104ipm. Scan to multiple destinations including E-mail, SharePoint, popular business cloud services, SSH Server (SFTP) and more.

Awards & Recognition

Detailed technical specs to help you understand performance, compatibility, and requirements.

Specifications

Detailed technical specs to help you understand performance, compatibility, and requirements.

Connectivity

Dimensions

General

Paper Handling

Power

Scan

Copy

Fax

Media

Security Features

What’s Included

Disclaimers

Toner Cartridge Yields	Approximate toner cartridge yield in accordance with ISO/IEC 19798 (letter/A4).
PC Fax Capability (send/receive)†	Black/White only. PC Fax Receive not supported for Mac OS®.
Automatic Document Feeder Capacity (max. pages)‡	Maximum capacity based on using 20 lb (bond) paper.
"Scan To" Feature†	Scan to E-mail Server requires SMTP/POP3 mail server support. Scan to Network Folder (CIFS) not available for Mac OS®.
Advanced Scanning Features	Feature available from Brother Control Center
Best Transmission Speed (approx. sec./page)‡‡	Based on ITU-T test chart at standard resolution with JBIG compression.
Brother Cloud Apps‡	Requires an Internet connection.
Carton Contents‡	Approximate toner cartridge yield in accordance with ISO/IEC 19798 (letter/A4). Drum yield is approximately 50,000 pages based on 3 pages per job and 30,000 pages based on 1 page per job and [letter/A4 simplex pages]. The number of pages may be affected due to a variety of factors including but not limited to media type and media size. Belt Unit yield is approximately 50,000 pages based on 1 page per job and 130,000 pages based on 3 pages per job [letter/A4 simplex pages]. The number of pages may be affected due to a variety of factors including but not limited to media type and media size. Waste Toner Box yield is approximate and based on A4 or Letter size single-sided pages. For more information see www.brother.com/pageyield.
Cloud Services (Web Connect)‡	Requires an Internet connection and an account with desired service. All referenced trademarks and registered trademarks are the property of their respective companies. ©2018 Google LLC All rights reserved. Google Drive is a trademark of Google LLC. EVERNOTE is a trademark of Evernote Corporation and used under a license.
Emulation(s)‡	BR-Script3 is PostScript®3™ compatible.
Fax Page Memory (max. pages)‡	Using ITU-T Test Chart #1 with JBIG coding and standard resolution.
First Time to Print	From Ready Mode and standard tray.
Images	Images are for illustrative purposes only.
Maximum Monthly Duty Cycle‡	Maximum number of printed pages per month and can be used to compare designed durability between like Brother products. For maximum printer life, it is best to choose a printer with a duty cycle that far exceeds your print requirements.
Media Type	Single-sheet via multi-purpose tray for glossy paper.
Black Print Speed (max. ppm)	Based on one-sided printing. Change from default setting required.
Color Print Speed (max. ppm)	Based on one-sided printing. Change from default setting required.
Optional Paper Trays (capacity)	Additional purchase required.
Quick Scan/Memory Transmission (approx. sec/page)‡	Using ITU-T Test Chart #1 with JBIG coding and standard resolution.
Recommended Monthly Print Volume‡	The recommended range of monthly printed pages to achieve the best possible performance and printer life. Printers are intended to handle occasional usage beyond this range with little or no effect. Consistently printing above the recommended print volume, however, may adversely affect the print quality or life of the machine. It is always best to choose a printer with an appropriate recommended print volume to allow for any anticipated increase in printing needs.
Scan Drivers Included‡	SANE and ISIS drivers are available for download from Brother Solutions Center. Visit http://solutions.brother.com.
Scan Speeds (maximum)‡	Scan speed claim based on data published in BLI's bliQ service on 2/6/18 for scan speeds for color laser all-in-one models under $2,000. Scan speed measured with all advanced features turned off using LTR size test documents at 300dpi.
Standard Input Paper Capacity (sheets)‡	Maximum capacity based on using 20 lb (bond) paper.
USB Host Location(s)	USB Host Front: Print/Scan: PDF (up to ver. 1.7), JPEG, XPS and Secure PDF files via your USB flash memory drive Scan: PDF/A, Signed PDF, TIFF (mono) USB 2.0 Standard. USB Mass Storage standard from 16MB to 8GB. Support format: FAT12/FAT16/FAT32 USB Host Back: Supports single function HID card readers.

Feature	Value
Carton Contents	(1) Super High Yield Black Toner Cartridge (6,500 pages), (1) Super High Yield Color Toner Cartridges (6,500 pgs each), (1) DR433CL Drum Unit (50,000 pgs), (1) BU330CL Belt Unit (50,000 pgs), (1) WT320CL Waste Toner Box (50,000 pgs), CD-ROM – Includes User's Manual and Printer Drivers, AC Power Cord, Telephone Line Cord, Quick Setup Guide
Warranty	1 Year Limited

Feature	Value
Standard Interface	Wireless 802.11 b/g/n, Gigabit Ethernet, Hi-Speed USB 2.0
USB Host Location	Front: Print from and scan to USB memory stick; external card reader‡, Back: External card reader‡
Standard Network Features	Printing, Scanning, PC Fax Send/Receive, I-Fax, Corporate Address Book
Mobile Device Compatibility	AirPrint, GoogleCloudPrint2, BrotheriPrintandScan, Mopria, CortadoWorkplace, WiFiDirect, NFC
Industry Specific Certifications	Cerner Certified, Citrix Ready
Supported Network Protocols IPv4	APIPA (Auto IP), ARP, BOOTP, CIFS Client, Custom Raw Port/Port 9100, DHCP, DNS Resolver, FTP Client and Server, HTTP/HTTPS Server, ICMP, IMAP4, IPP/IPPS, LDAP, LLMNR Responder, LPR/LPD, mDNS, POP3, RARP, SMTP Client, SNMPv1/v2c/v3, SNTP Client, TELNET Server, TFTP Client and Server, Web Services (Print/Scan), WINS/NetBIOS Name Resolution
Brother Cloud Apps	Scan to Searchable PDF, Attach, Email and Print, Scan to Mobile, Fax Forward to Cloud / Email, Scan to Word, Scan To PowerPoint, Scan To Excel, Cloud Secure Print, Easy Scan to E-mail
Supported Network Protocols IPv6	NDP, RA, DNS Resolver, mDNS, LLMNR Responder, LPR/LPD, Custom Raw Port/Port 9100, IPP/IPPS, POP3, SMTP Client, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c, HTTP/HTTPS Server, TFTP Client and Server, ICMPv6, SNTP Client, LDAP, Web Services (Print/Scan), IMAP4
One Push Wireless Setup	Wi-Fi Protected Setup™
System Requirement	Download System Requirement

Feature	Value
Unit Weight	65.4
Carton Dimensions	27" x 26" x 29"

Feature	Value
Standard Memory	1024
Maximum Monthly Duty Cycle	80,000 printed pages
Recommended Monthly Print Volume	Up to 6,000 pages
LCD Backlit	Yes
Toner Save Mode	Yes

Feature	Value
Output Paper Capacity	150
Duplex Printing Capability	Yes
Optional Paper Capacity	LT-330CL‡ (250 sheets x3) or LT-340CL‡ (500 sheets x2) TT-4000 and TC-4000‡ (Tower Tray with Stabilizer and Connector, includes 520 sheets x 4)
Minimum Input for ADF	4.1"/5.8"
Paper Handling Size for Duplex Printing	Letter, Legal, Folio (8" x 13")
Maximum Input for ADF	8.5"/14"
Sheet Weight (ADF)	17-24 lbs.
Multipurpose Tray Capacity	50
Sheet Weight (Multipurpose Tray)	16-43 lbs. (bond)
Sheet Weight (Paper Tray)	16-28 lbs. (bond)
Media Type	Plain, Glossy Paper‡, Envelopes (#10), Bond, Labels, Recycled Paper, Colored Paper, Letterhead
Paper Handling Size Multi Purpose Tray	Letter, Envelope, Custom Sizes (3.0-8.5" (w), 5.0-14” (l)), Legal, Executive, A4, A5, A6
Paper Handling Size Paper Tray	Letter, Legal, Executive, A4, A5, A6
Recommended Paper Brands	Xerox Vitality Multipurpose Printer Paper 20 lb., Avery Laser Label #5160, Hammermill Laser Paper 24 lb., NewPage Futura Laser Gloss 80 lb. Text/32 lb. Bond

Feature	Value
Machine Noise Ready Printing	Inaudible / 49dB
Power Consumption Power Off Deep Sleep Sleep Ready Printing	0.02W / 1.7W / 9.5W / 75W / 600W
EPA ENERGY STAR TEC Value	1.8
Power Source	AC 120V 50/60Hz
Operating Environment Humidity	20-80% (w/out condensation)
Operating Environment Temperature	50-90°F

Feature	Value
Emulation	BR-Script3‡, PCL5c, PCL5e, PCL6 (PCL XL Class 3.0), PDF Version 1.7, XPS Version 1.0
First Page Out Time	15 (Black) / 15 (Color)
Automatic Duplex Printing	Yes (default)
Print Resolution	2400 x 600 dpi class
Cloud Services Print	Box/Box for Business, OneNote, SharePoint Online, Google Drive™/Google Drive for Business, Evernote®/Evernote Business, OneDrive/OneDrive for Business, Dropbox/Dropbox for Business
CPU Speed	800
Consumable Type	4 Toner Cartridges and Drum
Copy Resolution	1200 x 600 dpi
PANTONE Calibrated	Yes
Printer Driver Compatibility	Windows, macOS®, Linux

Feature	Value
Scan Drivers Included	TWAIN, WIA, ICA, ISIS, SANE
Duplex Scanning	Yes
Advanced Scanning Features	Continuous Scan, ADF Auto Deskew, Blank Page Skip, ID Scan‡, Scan Profiles
Scan File Formats	PDF Single-page/Multi-page (Secure PDF, Searchable PDF, PDF/A), WordPerfect 9/10 (WPD), Microsoft Office Excel (XLSX), Windows Bitmap (BMP), Microsoft Office Word (DOCX), HTML 3.2/4.0 (HTM), JPEG (JPG), XML Paper Specification (XPS), Portable Network Graphics (PNG), Microsoft Office PowerPoint (PPTX), RTF Word 2000/WordPad (RTF), TIFF Single-page/Multi-page (TIF), Text (TXT), Microsoft Excel 2003 XP (XLS)
Duplex Scan Speeds	104ipm / 104ipm
Included Software	Kofax PaperPort™ SE with OCR for Windows, Brother ControlCenter2 with OCR for Mac®
Interpolated Scan Resolution	19200 x 19200 dpi
Mobile Device Scanning	Brother iPrint&Scan
Scan Driver OS Compatibility	Windows, Mac OS®, Linux
Scanning Capability	B/W and Color
Simplex Scan Speeds Black Color	52ipm / 52ipm

Feature	Value
Duplex Copying	Yes
Sorting Function	Yes
Standalone Copying	Yes
Design Style	Flatbed
ID Copy	Yes
N-in-1 Functions	2in1 / 4in1
Poster Function	No
Reduction Enlargement	25%-400%
Copy Capability	BW;Color
