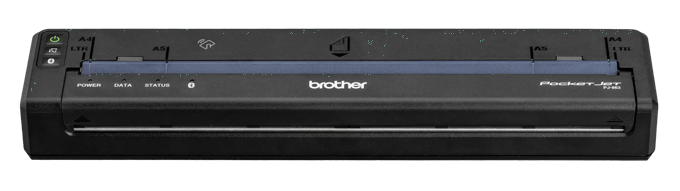

Brother PJ-863-L 300dpi Mobile Printer with Bluetooth®, USB-C® and Battery
$720.00
current price $720.00Compact and Fast 8.5" Wide Mobile Printing
Bluetooth, MFI, USB C Communications/Charging, Windows Drivers, SDKs, & Emulations
Kitted with Battery Included
PocketJet 8, 300dpi, 8.5" Width, Thermal Printer with USB C Connectivity/Charging, Bluetooth, Li-Ion Battery, 2 Year Premier Warranty (Requires DC power or USB cable w/power for charging, and printing supplies)
Feature | Value |
|---|---|
| Warranty | 2 Year Premier Limited Warranty |
| Warranty Type | Select Service |
Specifications
Detailed technical specs to help you understand performance, compatibility, and requirements.
Feature | Value |
|---|---|
| Apps | Print Service Plugin, Support Center, iPrint&Scan, PJ-673 Print, Print SDK Demo, RJ-4040 Print, Mobile Transfer Express, Mobile Deploy |
| Communications Interfaces | USB-C Ver 2.0, Bluetooth® Ver 5.2, MFi, NFC |
| OS Support Link | https://support.brother.com/g/b/oslist.aspx?c=us&lang=en&prod=pj863eus |
| Print Driver Compatibility | Windows®, Mac®, Linux For the most up-to-date compatibility, visit our Support Page |
| Print Driver Support Link | https://support.brother.com/g/b/downloadtop.aspx?c=us&lang=en&prod=pj863eus |
Feature | Value |
|---|---|
| OS Compatibility | Windows®, Mac®, Linux, Mobile Android™, Mobile iOS® For the most up-to-date compatibility, visit our Support Page |
| OS Printing | Windows Mobile®, Android™, iOS®, Apple Airprint®, Google Cloud Print™, Mopria™ |
| Support Software | Software / Document Installer, P-Touch Editor, P-Touch Transfer, Printer Setting Tool, P-touch Transfer Express, Driver Deployment Wizard, Firmware Update Tool, Firmware for Network Connection, BRAdmin Light / Agent / Professional |
Feature | Value |
|---|---|
| Carton Dimensions | 4" x 11" x 2" |
Feature | Value |
|---|---|
| Weight | Without battery: 0.95lbs (430g) With battery: 1.34lbs (610g) |
| Available Color | Black |
| Flash Memory | 32MB |
| RAM | 32MB |
| Channel Protected | Yes |
Feature | Value |
|---|---|
| Media Type | Paper and synthetic: cut sheet, continuous roll, perforated roll, fan-fold Labels: Cut sheet, fan-fold |
Feature | Value |
|---|---|
| Battery | Rechargeable Li-ion battery, replaceable, 10.8V |
| Battery Charging Options | AC adapter, DC car adapter, USB-C |
| Battery Charging Time | With AC adapter: 2hrs With car adapter: 2hrs With USB-C: 2hrs |
| Battery Yield | 600 pages per charge |
| Power | Input: 15V DC 4.0A |
| Battery Charge Time | 3 Hours |
| Battery Requirements | Rechargeable Li-ion Battery (PA-BT-002) |
| Power Management | Auto Power On/Off |
| Battery Life | 300 Cycles |
| Power Source Options | AutoRanging Power Supply, Replaceable Rechargeable Battery, Vehicle Power Adapter, Forklift Power Adapter |
Feature | Value |
|---|---|
| Print Resolution | 300dpi |
| Max Print Speed | Up to 3ips |
| Borderless Printing | Yes |
| Printer Type | Portable |
Feature | Value |
|---|---|
| Emulations | Raster_P, P-touch Template, ZPL II |
| Linear Barcodes | CODE39, ITF (I-2/5), EAN-8( JAN8), EAN-13 (JAN13), UPC-A, UPC-E, CODABAR (NW-7), CODE128, GS1-128 (UCC/EAN-128), POSTNET, GS1 DataBar (RSS), UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode, Industrial 2-of-5, Standard 2-of-5 Downloadable barcodes available |
| Stored Templates | Up to 256 templates |
| Bitmap Fonts | Helsinki Brussels Letter Gothic |
| Outline Fonts | Helsinki Brussels Letter Gothic |
| Print Commands | Raster_P ESC/P_P ESC/P_B P-touch Template |
| 2D Barcodes | QR Code, PDF417, MaxiCode, Aztec, Micro QR Code, MicroPDF417, DataMatrix, GS1 Databar Composite Downloadable barcodes available |
| Energy Conservation Certifications | Energy Star certified |
Feature | Value |
|---|---|
| Consumable Roll Core ID Size | Full Page Documents |
| Media Width Max | 8.5" (215.9mm) |
| Consumable Format | Extended Cut Sheet, Fanfold Media, Roll with Continuous Media, Roll with Perforated Media, Roll with Die Cut Media |
Feature | Value |
|---|---|
| Print Speed | 8ppm 13,5 ppm 8ppm |
Feature | Value |
|---|---|
| Operating Environment | 14°F - 122°F (-10°C - 50°C) |
| Storage Environment | -4°F - 140°F (-20°C - 60°C) |
Feature | Value |
|---|---|
| In the Box | Printer, Li-ion battery |
| Memory | 256MB DRAM, 64MB flash (30MB available) |
| Operating Temperature / Humidity | Printing with battery/car adapter: 14° F to 122° F (-10° C to 50° C)Printing with AC adapter: 14° F to 104° F (-10° C to 40° C)Charging: 32° F to 104° F (0° C to 40° C)20% to 80% non-condensing |
| Safety | UL, CSA |
| Sealing Certification | IP54 with case |
| Storage Temperature / Humidity | -4° F to 140° F (-20° C to 60° C), 20% to 80% non-condensing |
Feature | Value |
|---|---|
| Media Loading | Auto grip |
| Media Sensors | Reflective (black bar), out of paper |
| Media Sizes | Letter, legal, A4, A5 continuous, custom sizes and pre-printed media are available upon request |
| Media Type | Paper and synthetic: cut sheet, continuous roll, perforated roll, fan-fold Labels: Cut sheet, fan-fold |
| Media Width | 8.5" |
Feature | Value |
|---|---|
| Printer Languages | ESC/P_P, ESC/P_B |
Feature | Value |
|---|---|
| Warranty | 2 Year Premier Limited Warranty |
| Warranty Type | Select Service |
