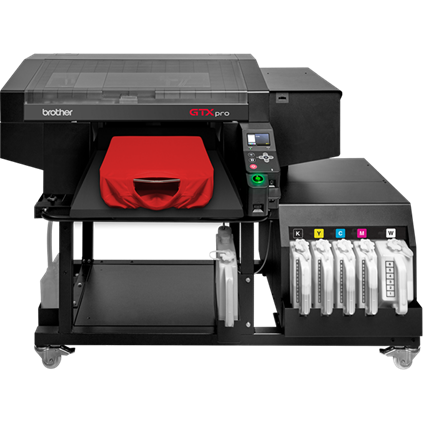

GTXpro B Dark Garment Printer feature Advanced Bulk Ink System



GTXpro B Dark Garment Printer feature Advanced Bulk Ink System

About the Product

The GTXpro B is the next generation decorating technology for high volume printing. Take advantage of efficiencies in ink systems, maintenance components and operation cost to maximize your ROI. The GTXpro B is a scalable system that grows with your business. industrial grade construction, user friendly operation and brilliant color reproduction make the GTX Pro an amazing performance printer. The GTXpro B features an internal ink agitation and circulation system, built in filtering and degassing system and extra-large sub tanks. Other features include automated maintenance for greater consistency and reliability and dual platen height sensors ensuring optimal platen height for crisp printing. Performance is key to the GTXpro B with a print area up to 16”x21” and a variety of platens to allow you to print on almost anything. Also using GTXpro B prints up to 42 dark garment prints* or 57** light garment prints can be produced in an hour making this printer production ready and operator friendly.

GTX Tutorials:


GTX Downloads:

GTX Videos:

GTX Support Ticket:,9236

Main Features

  • Upgraded Design Features include complete ink circulation system with redesigned print heads that circulate ink inside the print head
  • Maximize Your Print Area Offer oversized prints up to a 16” x 21” area
  • High Speed Print Mode Generates an increase in print speed of up to 20% compared to standard print mode***
  • Exceptional Print Quality Crisp high-resolution prints up to 1200 x 1200 dpi
  • Interchangeable Platens Interchangeable platens available for printing on tees, caps, hoodies, over zippers, and more
  • Certified Washability Our printers, when used properly with genuine Brother GTX Pro inks, provide a high washing colorfast AATCC rating of 4
  • ECO-Friendly Inks Our printing process using genuine inks and/or pre-treatment is CPSIA compliant, reducing environmental waste. Available in 1.8L and 18L sizes
  • Printing Made Easy Print from either your own graphic design software or our included easy-to-use Graphics Lab software (compatible with both Mac & PC)
  • USB/LAN Connectivity Connect and send files quickly with a LAN/Ethernet connection


Standard Interface(s) USB Memory Stick, Hi-Speed USB 2.0, 10/100 Base-TX Ethernet
Carton Dimensions (W" x D" x H") 48.0" x 60.0" x 29.0"
Carton Weight (lbs) 478.0
Unit Dimensions (W" x D" x H") 70" x 51" x 48"
Unit Weight (lbs) 364
Power Consumption 0.8A (Average) (Reference: 0.3A(during circulation))
Ink Color CMYK + 4 White
Maximum Printing Area‡ 16" x 21" (406.4mm x533.4mm)
Number of Print Heads 2
Pre-Treatment Before printing, apply pre-treat manually or use an automatic device. Cure using a heat press machine according to manufacturer's instruction. Pre-treatment is necessary for printing with white ink.
Print Mode CMYK+White (white ink underbase and highlight; single or double pass for CMYK)
Printer Technology Direct Inkjet Garment Printer
Condition *** When compared to first generation GTX printer (GTX-422)
