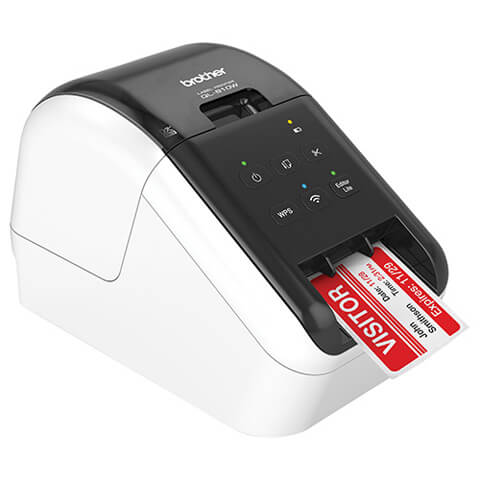

Brother QL-810W

Ultra-fast Label Printer with Wireless Networking

Mobile Printers & Labelers; Label Makers & Printers
  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getAggregateRating, 16ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Dimensions

Unit Dimensions (W" x D" x H")
5.0" x 9.2" x 5.7"
Unit Weight (lbs)
2.4
Carton Width
7.25"
Carton Height
9.75"
Carton Length
11.5"
Carton Weight
5.8 lbs

Hardware Features

Cutter Life
up to 300,000 (die-cut labels) 150,000 (continuous labels)
Cutter Type
Automatic
Housing Color
White / Black
LCD Display
None
Maximum Label Length
3 feet
Maximum Label Width (in.)
2.4
Maximum Print Resolution (DPI)
300 x 600
Maximum Print Speed‡ (labels per min.)
110
Maximum Print Width (in.)
2.3
Memory for Transferred Data (MB)
7
Network Compatibility
Built-In
Operation Modes
PC Connected
Printer Emulation
Raster
Printer Memory (MB)
7
Printer Technology
Direct Thermal
Standard Interfaces‡
Wireless 802.11 b/g/n, Wi Fi Direct, Hi-Speed USB 2.0
Standard Memory (MB)
7
Tape Sizes
Die-Cut, Continuous

Power

ENERGY STAR® Certified
Yes
Power Source
100-240V - 50/60Hz 1.5A

Software Features

Bar Code Types: PC Connected
CODE39, IMb, CODE128, UCC/EAN128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13, EAN8, ISBN-2(EAN13 AddOn2), ISBN-5(EAN13 AddOn5), Laser Barcode, POSTNET, RSS(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked), PDF417(Standard, Truncate, Micro), QR code(Model1, Model2, Micro), Data Matrix(ECC Square, ECC Rectangular), MaxiCode(Model2, Model3, Model4, Model5), GS1 Databar Composite, Aztec Barcode
Bar Code Types: Stand Alone
CODE39, CODE93, UPCEETENTION, CODE128, UCC/EAN128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13, EAN8, RSS(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked), PDF417(Standard, Truncate, Micro), Data Matrix(ECC Square, ECC Rectangular), MaxiCode(Model2, Model3, Model4, Model5)
Database File Compatibility
CSV, TXT, MDB, XLS
Font Style
True Type
Labeler Features
Date/Time Stamp, Rotate Printing, Vertical Printing, Mirror Printing
Maximum Number of Print Copies
9999
Microsoft Word/Outlook/Excel Add-ins
Yes
Mobile Device Compatibility‡
AirPrint®, Brother iPrint&Label
Mobile Device Printing App‡
Yes
Operating System Compatibility
Mac OS X 10.11.x, Mac OS X 10.10.5 , Mac OS X 10.12.x, Mac OS X 10.13.x, Windows Vista®, Windows® 7, Windows® 8/8.1, Windows® 10, Windows® Server 2008
Postage Ready‡
Yes

System Requirements

SDK Support
Yes
Security Functions
Enterprise Security (802.1x)
Security Protocols (Wired)
802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
Security Protocols (Wireless)
802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
Software Included
P-touch Editor (Windows & Mac®), P-touch Address Book (Windows), P-touch Update Software (Windows & Mac®), P-touch Editor Lite LAN (Windows only)
Wireless Network Security
WEP 64/128 bit, 802.1x, LEAP(CKIP), EAP-FAST(TKIP/AES), PEAP, EAP-TLS, EAP-TTLS, WPA/PSK (TKIP/AES), WPA2-PSK (AES), EAP (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)

What's Included

Carton Contents‡
Software, USB Cable, AC Adapter, Quick Setup Guide, Documentation, Starter rolls: DK-1201 Die-cut Standard Address Labels (100 labels), plus DK-2251 2.4" (62mm) Continuous Length Black/Red on White Paper Tape 16.4 ft. (5m)
Warranty
2 Year Limited Warranty & Replacement Service
DK1208

1.4 in x 3.5 in (38 mm x 90.3 mm) Large Address labels (400 White Paper Labels)

Our large address labels are perfectly sized for mailing purposes but have other applications as well including product identification, warning labeling and more. This roll of 400 die-cut white paper adhesive labels is designed especially for use with select Brother QL label printers.
DK1218

0.94 in diameter (24 mm diameter) White Round Paper Adhesive Labels (1,000 Labels)

Create custom labels and stickers quickly and easily with Brother White Round Paper Adhesive Labels. Compatible with QL direct thermal printers, these die-cut labels can be used as mailer sealers, warning or certification labels, and more.

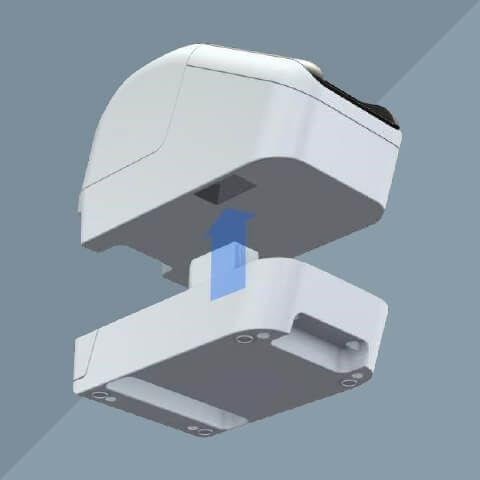

Rechargeable Battery (Li-ion)

14.4V 1750mAh 26Wh Provides printing of over 2,000 Black on White labels during continuous printing on a full battery charge Recharge time less than 2.5 hours For Brother QL-810W and QL-820NWB label printers
