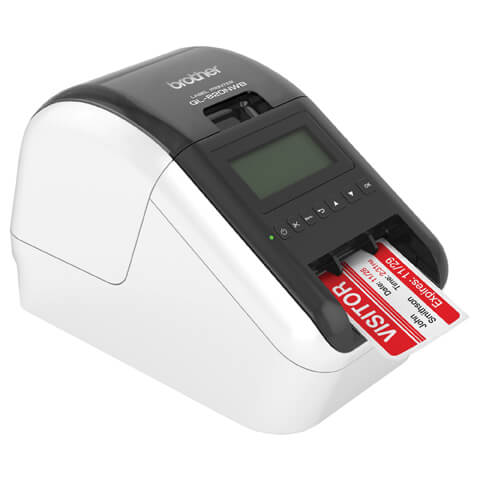

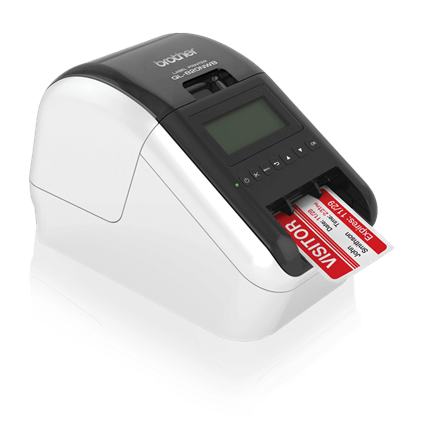

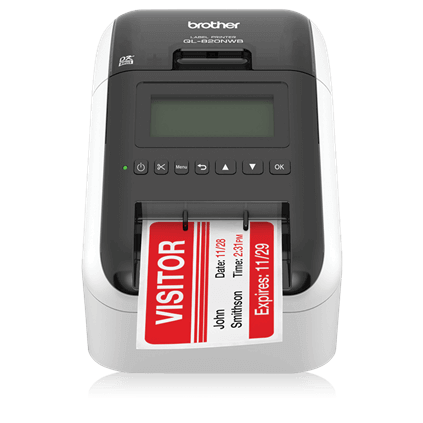

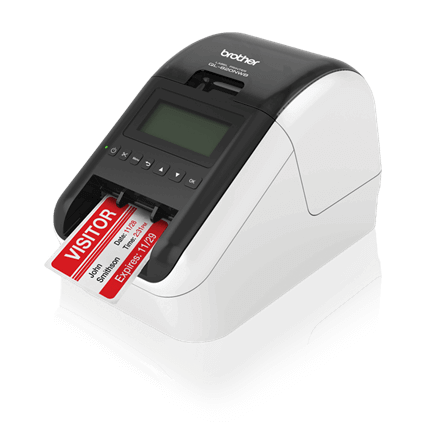

Brother QL-820NWB

Professional, Ultra Flexible Label Printer with Multiple Connectivity options

Mobile Printers & Labelers; Label Makers & Printers
  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getAggregateRating, 31ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
  • Connect via wireless, Ethernet & Bluetooth®.
  • Easy to read Monochrome LCD screen allows for standalone use.
  • Ultra-fast print speed! Print up to 110 labels per minute.‡
  • See More
$199.99
Available for Auto-Fulfillment

The Brother QL-820NWB offers flexible connectivity – Bluetooth® wireless technology, Ethernet and Wireless (802.11b/g/n) interfaces. Also equipped with a USB Host interface, the Brother QL-820NWB is well-suited for use with a peripheral such as a scanner. Create amazing Black/Red labels using DK-2251 or cost-effective, paper labels for packages, name badges, postage and more. Ultra-fast, printing up to 110 standard address labels per minute with black text at 300dpi. Create and print labels from your mobile device when connected to a wireless network via AirPrint® and Brother iPrint&Label. Using the free, Brother iPrint&Label app‡ with your Apple® iPhone®, iPad®, and iPod touch® or Android™ smartphones you can quickly access and print label templates - or create your own custom labels with graphics or photos. Easy to read Backlit Monochrome LCD screen allows for standalone use. Add an optional Li-ion battery for a complete mobile solution. Easy to integrate with free software development kits. Uses convenient, Brother genuine DK drop in labeling supplies. Needs no ink or toner. Windows and Mac® compatible.

Main Features
  • Flexible connectivity – The Brother QL-820NWB network label printer features Bluetooth® wireless technology, Ethernet, Wireless (802.11b/g/n) and Wireless Direct interfaces
  • Print amazing Black/Red labels using DK-2251
  • Create cost-effective paper labels for packages, envelopes, file folders, name badges, postage and more
  • Ultra-fast, printing up to 110 labels per minute‡
  • Print labels wirelessly using AirPrint® and Brother iPrint&Label app download‡
  • Easy to read Backlit Monochrome LCD screen allows for standalone use
  • Optional Li-ion battery for a complete mobile solution
  • Easy to integrate and manage on a network using Brother's network management tools and free software development kits. SDKs are available for Windows, iOS and Android operating systems.
  • High-resolution (up to 300 x 600 dpi) printing, for crisp text and graphics
  • Convenient, drop in tape rolls. No ink or toner needed
  • Prints pre-sized, easy-peel, rounded-corner labels. This high-speed label printer also prints on continuous-length paper and film tapes for banners and signs up to 3 ft. long
  • Use the automatic cutter for precise cuts after each label is printed or to create custom-sized labels
  • Windows and Mac® compatible

Dimensions

Unit Dimensions (W" x D" x H")
5.0" x 9.2" x 5.7"
Unit Weight (lbs)
2.5
Carton Width
7.25"
Carton Height
9.0"
Carton Length
11.75"
Carton Weight
5.6 lbs

Hardware Features

Cutter Life
up to 300,000 (die-cut labels) 150,000 (continuous labels)
Cutter Type
Automatic
Housing Color
White / Black
Interface Types
Bluetooth® wireless technology (Ver.2.1+EDR SPP, BIP,OPP, HCRP and iAP/MFIsupported) interfaces, USB Host, Wireless (b/g/n), Ethernet, WirelessDirect
LCD Display
None
Maximum Label Length
3 feet
Maximum Label Width (in.)
2.4
Maximum Print Resolution (DPI)
300 x 600
Maximum Print Speed‡ (labels per min.)
110
Maximum Print Width (in.)
2.3
Memory for Transferred Data (MB)
7
Network Compatibility
Built-In
Operation Modes
PC Connected
Printer Emulation
Raster
Printer Memory (MB)
7
Printer Technology
Direct Thermal
Standard Interfaces‡
Wireless 802.11 b/g/n, Ethernet, Wi Fi Direct, Hi-Speed USB 2.0
Standard Memory (MB)
7
Tape Sizes
Die-Cut, Continuous

Power

ENERGY STAR® Certified
Yes
Power Source
100-240V - 50/60Hz 1.5A

Software Features

Bar Code Types: PC Connected
CODE39, IMb, CODE128, UCC/EAN128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13, EAN8, ISBN-2(EAN13 AddOn2), ISBN-5(EAN13 AddOn5), Laser Barcode, POSTNET, RSS(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked), PDF417(Standard, Truncate, Micro), QR code(Model1, Model2, Micro), Data Matrix(ECC Square, ECC Rectangular), MaxiCode(Model2, Model3, Model4, Model5), GS1 Databar Composite, Aztec Barcode
Bar Code Types: Stand Alone
CODE39, CODE93, UPCEETENTION, CODE128, UCC/EAN128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13, EAN8, RSS(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked), PDF417(Standard, Truncate, Micro), Data Matrix(ECC Square, ECC Rectangular), MaxiCode(Model2, Model3, Model4, Model5)
Database File Compatibility
CSV, TXT, MDB, XLS
Font Style
True Type
Labeler Features
Date/Time Stamp, Rotate Printing, Vertical Printing, Mirror Printing
Maximum Number of Print Copies
9999
Microsoft Word/Outlook/Excel Add-ins
Yes
Mobile Device Compatibility‡
AirPrint®, Brother iPrint&Label
Mobile Device Printing App‡
Yes
Operating System Compatibility
Windows Vista®, Windows® 7, Windows® 8/8.1, Windows® 10, Windows® Server 2003, Windows® Server 2008
Postage Ready‡
Yes

System Requirements

SDK Support
Yes
Security Functions
Enterprise Security (802.1x)
Security Protocols (Wired)
802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
Security Protocols (Wireless)
802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
Software Included
P-touch Editor 5.2 for Windows, P-touch Address Book 1.2 for Windows, P-touch Editor 5.1 for Mac®, P-touch Update Software (Windows & Mac®)
Wireless Network Security
WEP 64/128 bit, 802.1x, LEAP(CKIP), EAP-FAST(TKIP/AES), PEAP, EAP-TLS, EAP-TTLS, WPA/PSK (TKIP/AES), WPA2-PSK (AES), EAP (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)

What's Included

Carton Contents‡
Software, USB Cable, AC Adapter, Quick Setup Guide, Documentation, Starter rolls: DK-1201 Die-cut Standard Address Labels (100 labels), plus DK-2251 2.4" (62mm) Continuous Length Black/Red on White Paper Tape 16.4 ft. (5m)
Warranty
2 Year Limited Warranty & Replacement Service
DK1208

1.4 in x 3.5 in (38 mm x 90.3 mm) Large Address labels (400 White Paper Labels)

Our large address labels are perfectly sized for mailing purposes but have other applications as well including product identification, warning labeling and more. This roll of 400 die-cut white paper adhesive labels is designed especially for use with select Brother QL label printers.

Rechargeable Battery (Li-ion)

14.4V 1750mAh 26Wh Provides printing of over 2,000 Black on White labels during continuous printing on a full battery charge Recharge time less than 2.5 hours For Brother QL-810W and QL-820NWB label printers
