About the Product
Make ‘The’ Moment with ScanNCut DX!

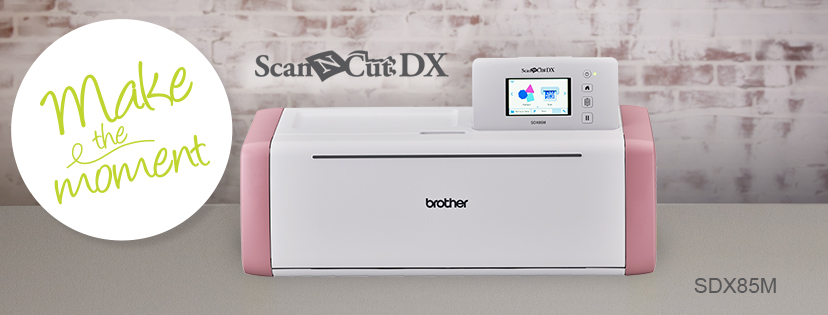

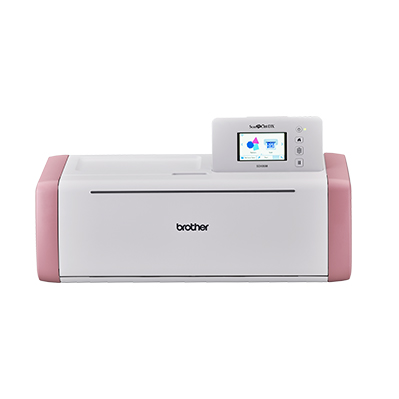

Introducing the new ScanNCut DX (SDX85M), the only affordable and versatile cutting machine with a built-in scanner for making all of life's moments stand out. It's so easy to use, with features like Blade Sensor Technology (that automatically adjusts for material thickness) and more than 250 built-in designs, patterns and fonts to get your creative juices flowing. PLUS advanced editing with CanvasWorkspace to help showcase your advancing skills.
Make the moment with the cutting machine for Moment Makers: the new ScanNCut DX.
Main Features
- Blade Sensor Technology: Auto blade detects the thickness of material, no blade adjustment or material selection required.
- Cut Up To 0.1” (3 mm) in Thickness: The Brother Home Electronic Cutting Machine effortlessly cuts materials‡ such as foam and felt with the Auto Blade.
- Stand-Alone: Create a project right out of the box without using a computer or mobile device.
- Fully Detailed Designs: Features a total of 251 built-in designs!
- Wireless Network Ready: Wirelessly connect‡ your PC or mobile device to transfer cut data from the Brother CanvasWorkspace application.
- Advanced editing with Canvasworkspace: Free software to create, edit, convert and send cut data to and from the machine
Imagine, Enhance and Craft the Moments that Matter
Cut virtually any material up to 3 MM1 in thickness with the ScanNCut DX Auto Blade Suite, all three have their own unique purpose so whether you are cutting fabric, vinyl or leather. We've got you covered!Optional Accessories: Auto Blade, Thin Fabric Auto Blade and Vinyl Auto Blade.

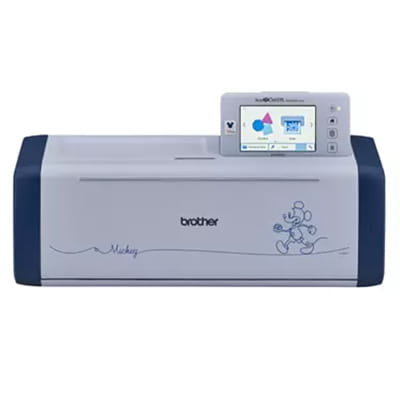

ScanNCut DX Comparison Chart
 |
 |
 |
 |
|
|---|---|---|---|---|
| SDX225F | SDX230DX | |||
| MSRP2 | $399.99 (MSRP2) | $499.99 (MSRP2) Includes over $74 in added value3 |
$999.99 (MSRP2) Includes over $740 in added value3 |
$1,199.99 (MSRP2) Includes over $1,100 in added value3 |
|
Standard SDX Features |
||||
|---|---|---|---|---|
| 5 In LCD Touch Screen Display | - | ✓ | ✓ | ✓ |
| Blade Sensor Technology | ✓ | ✓ | ✓ | ✓ |
| Wireless Network Ready | ✓ | ✓ | ✓ | ✓ |
| Wireless Connection via PC/Tablet/Mobile4 | ✓ | ✓ | ✓ | ✓ |
| CanvasWorkspace PC-Based Application | ✓ | ✓ | ✓ | ✓ |
| Direct Data Transfer via USB Cable on CanvasWorkspace5 | ✓ | ✓ | ✓ | ✓ |
| Maximum Object Readability | 600 | 600 | 600 | 600 |
|
Dealer Exclusive Innov-ís Edition Features |
||||
|---|---|---|---|---|
| 24" Scan Function | - | - | Dealer Exclusive | 10 5/8" x 16" |
| PES File Import Capability/PES File Embroidery Stitch Line Detection6 | Optional Software(s) Required, Sold Separately: Optional BES 4 ($899.992) and Power Pack 2 Cutting Tool Software ($499.99 MSRP2), total $1399.98 MSRP2, or Optional PE Design 11 ($2,139.99 MSRP2). | Dealer Exclusive | Dealer Exclusive | |
|
Built-in Designs |
||||
|---|---|---|---|---|
| Total Built-in Designs | 251 Designs/5 Fonts | 682 | 1,303 | 1,435 |
| Built-in One Point Designs | - | 582 | 1,163 ($575.19 Value7) | 1,163 ($575.19 Value7) |
| Built-in Quilt Designs | - | 100 | 140 ($39.60 Value7) | 140 ($39.60 Value7) |
|
Built-in Disney Designs - Dealer Exclusive |
||||
|---|---|---|---|---|
| Built-in Disney Designs | - | - | - | 152 ($150.48 Value7) |
|
Standard Included Accessories |
||||
|---|---|---|---|---|
| Auto Blade (1 PC) | ✓ | ✓ | ✓ | ✓ |
| Auto Blade Holder (1 PC) | ✓ | ✓ | ✓ | ✓ |
| ScanNCut DX 12" x 12" Standard Mat (1 PC) | ✓ | ✓ | ✓ | ✓ |
| Getting Started Guide and Sample Cardstock (1 PC) | ✓ | ✓ | ✓ | ✓ |
| Pen Holder (1 PC) | - | ✓ | ✓ | ✓ |
| Black Pen (1 PC) | - | ✓ | ✓ | ✓ |
| Red Pen (1 PC) | - | ✓ | ✓ | ✓ |
| Touch Pen, Spatula, Accessory Pouch (1 PC of each) | ✓ | ✓ | ✓ | ✓ |
|
SDX125e Added Value |
||||
|---|---|---|---|---|
| Pattern Collection Bundle4 | - | 76 ($74.97 MSRP2) | - | - |
|
Dealer Exclusive |
||||
|---|---|---|---|---|
| 5 Color Pen Set | - | - | ✓($17.49 MSRP2) | ✓($17.49 MSRP2) |
| 2 Erasable Pen Set | - | - | ✓($14.99 MSRP2) | ✓($14.99 MSRP2) |
| Roll Feeder Bundle | - | - | - | ✓ Roll Feeder Bundle ($89.99 MSRP2) |
| Thin Fabric Auto Blade | - | - | ✓($16.99 MSRP2) | ✓($16.99 MSRP2) |
| Thin Fabric Auto Blade Holder | - | - | ✓($26.99 MSRP2) | ✓($26.99 MSRP2) |
| Fabric Mat | - | - | ✓($39.99 MSRP2) | ✓($39.99 MSRP2) |
| Iron-On Fabric Contact Sheet (2 PC) | - | - | ✓($14.99 MSRP2) | ✓($14.99 MSRP2) |
| ScanNCut DX 12" x 12" Low Tack Adhesive Mat (1 PC) | - | - | - | ✓($31.99 MSRP2) |
| Universal Pen Holder | - | - | - | ✓($19.99 MSRP2) |
| Rhinestone Trial Kit | - | - | - | ✓($49.99 MSRP2) |
| Disney Vinyl Auto Blade Kit | - | - | - | ✓($99.99 MSRP2) |
| Starter Key Chain Fabric Project | - | - | ✓ | - |
| Technical Support | Phone/Online Support for the Life of the Product | Phone/Online Support for the Life of the Product | Phone/Online Support for the Life of the Product | Phone/Online Support for the Life of the Product |
| Where to Buy | Online and Mass Retail | Crafting Retailers, Distributors and Online | Authorized Brother Dealers | Authorized Brother Dealers |
1Material compatibility may vary. Always perform a trial/test cut to confirm a successful cut.
2Prices set by retailers and dealers may vary.
3Compared to SDX125e model.
4Available with CanvasWorkspace for web only.
5Connection via USB cable is available for Windows only. Cable not included.
6Reads most PES/PHC/PHX embroidery files. To read PHX file, software version should be 1.1x or higher.
7Value based on built-in designs included vs. the SDX125e.
Images are for illustrative purposes only. Specifications subject to change.
Specifications
| Material Compatibility | Printer Paper, Scrapbook, Cardstock, Tracing Paper, Velum, Poster Board, Thin Cotton, Felt, Flannel, Magnet, Sticker, Seal |
|---|---|
| Work Area | 12" x 12" |
| Carton Dimensions (W" x D" x H") | 11.811" x 24.606" x 11.417" |
|---|---|
| Carton Weight (lbs) | 16.976 |
| Unit Dimensions (W" x D" x H") | 20.906" x 8.465" x 6.811" |
| Unit Weight (lbs) | 12.79 |
| Built-In Designs | 251 |
|---|---|
| Built-In Fonts | 5 |
| Built-In Memory | Yes |
| Built-In Quilt Designs | 0 |
| Direct Connection Via USB Cable | Yes |
| On-Screen Editing | Yes |
| USB Slots | Yes |
| Wireless Connection to PC or Tablet | Yes |
| Wireless Network Ready | Yes |
| Zoom Function | Yes |
| Background Scan Adjustment | Darker, Lighter |
|---|---|
| File Formats Supported | FCM, SVG |
| Maximum Scanning Width (in.) | 11.7 |
| Scan to USB | Yes |
| Scanner Capabilities | Yes |
| Scanner Resolution (DPI) | 600 |
| Scan-to-Cut Data | Detection type: Outline, Detection type: Region, Detection type: Line (Thinning) |

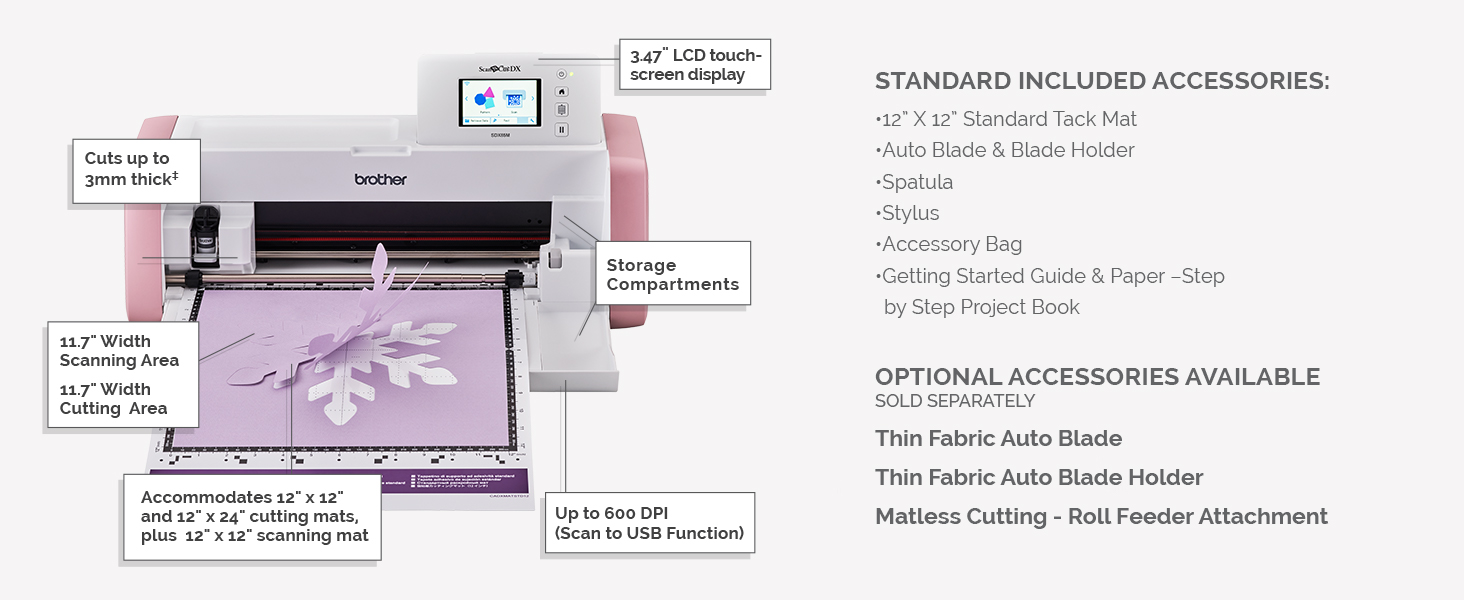

| Carton Contents‡ |
12” X 12” Standard Tack Mat
Auto Blade & Blade Holder Spatula Stylus Accessory Bag Getting Started Guide & Paper – Step by Step Project Book |
|---|---|
| "In-Box" Consumables/Yield‡ |
12” X 12” Standard Tack Mat
Auto Blade & Blade Holder |
| USB Cable | No |
| Warranty | 1 Year Limited Parts & Labor, 2 Year Limited Electronic Components and Printed Circuit Boards |
Reviews
| connect‡ | Internet connection required. |
| Material Compatibility‡ | Material compatibility may vary. Always perform a trial/test cut to confirm a successful cut. |
