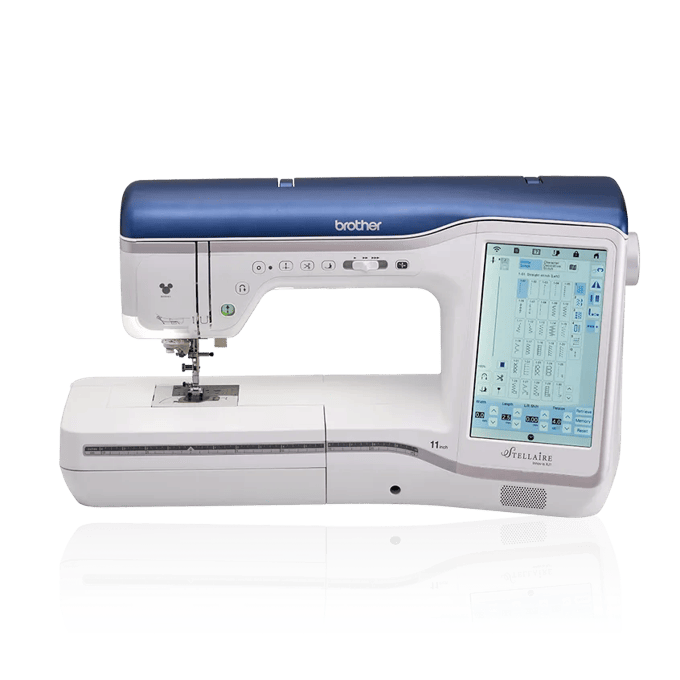

Brother Stellaire XJ1 Computerised Sewing, Embroidery & Quilting Machine
My Design Snap Mobile app for Background, Line Art and Illustration Scan.
Large 9.5” x 14” embroidery area
11.25” needle to arm and 5” height from sewing bed to top of machine arm
Packed with the latest luxury features you’ve yearned for as an experienced sewing and embroidery enthusiast, yet so easy to learn with its library of 24 built-in instructional videos. Experience the freedom and comfort of sewing on 56 square inches of included workspace, giving you the power to handle virtually any project with ease. With stitch selection choices, decorative fill options, and stitch settings, the possibilities are endless for creating personalized projects. Use the included My Design Snap mobile app for precise positioning of designs and capture pictures of line art or illustrations and convert into embroidery data‡. With embroidery speeds up to 1,500 stitches per minute, 727 built-in designs including over 100 Disney designs and 11” needle to arm to create, it’s time to bring Stellaire home!
Feature | Value |
|---|---|
| Carton Contents | Zigzag Foot “J” (on machine),Monogramming foot, Overcasting Foot “G”, Zipper Foot “I”, Buttonhole Foot “A”, Blind Stitch foot “R”, Button Fitting foot “M”, Compact Dual Feed Foot, Straight Stitch Foot, Free Motion Open Toe quilting foot “O”, Free Motion Quilting Foot “C”, Free Motion Echo Quilting Foot “E”, Embroidery Foot “W+” with LED pointer, 1/4" Piecing Foot with guide, Adapter, Screw (small), Needle set (75/11 2 needles, 90/14 2 needles, 90/14 2 needles: Ball point needle (gold colored)), Twin needle (2/11 needle), Ball point needle set (75/11 2 needles: Ball point needle for embroidery), Bobbin × 10 (One bobbin is in machine), Seam Ripper, Scissors, Cleaning brush, Eyelet punch, Screwdriver (S/L), Disc-shaped screwdriver, Multi-purpose screwdriver, Spool cap (small), Spool cap (medium) × 2 (One spool cap is on machine), Spool cap (large), Thread spool insert (mini king thread spool), Bobbin clip × 10, Spool felt (on machine), Spool net × 2, Embroidery needle plate cover, Touch pen (stylus), Knee lifter, Foot controller, Foot Controller, Standard bobbin case (green marking on the screw) (on machine), Alternate bobbin case (no color on the screw), Straight stitch needle plate, Cord guide bobbin cover, Bobbin cover (with mark) (on straight stitch needle plate), Bobbin cover (on machine), Embroidery frame with decal set 36 cm (H) × 24 cm (W) (approx. 14 inches (H) × 9-1/2 inches (W)), Embroidery frame with decal set 24 cm (H) × 24 cm (W) (approx. 9-1/2 inches (H) × 9-1/2 inches (W)), Embroidery frame with decal set 18 cm (H) × 13 cm (W) (approx. 7 inches (H) × 5 inches (W)), Embroidery frame with decal set 10 cm (H) × 10 cm (W) (approx. 4 inches (H) × 4 inches (W)), Embroidery positioning sticker sheets × 4, Lens calibration sheet, Embroidery bobbin thread (#60, white), Stabilizer material, Grid sheet set, Chalk pencil, Bobbin center pin and instruction sheet, Accessory case, Telescopic thread guide, Spool support, Spool pin × 2, Screw and washer, Spool cap (XL) × 2, Spool holder × 2, Spool cap base × 2, Spool felt × 2, Ring × 4, Operation Manual, Quick Reference Guide |
| USB Cable | No |
| Warranty | 2/6/25 Year Premium Limited Warranty |
Main Features
Artspira Mobile App - where art and inspiration meet!
The Artspira Mobile App will have you creating on the go. With access to embroidery and cutting designs and the ability to make embroidery patterns by drawing on your mobile device, there's no limit to your next project.
My Connection-
Your ScanNCut DX and your Brother Stellaire sewing & embroidery machine can now talk to one another. When connected to your home network, use the My Connection tile on the home screen to utilize the send/retrieve function between the ScanNCut DX and the Brother Stellaire sewing & embroidery machine. This takes the place of using a USB to transfer designs between these machines and is exclusive to the SDX325 and SDX330D. (Activation card for your Stellaire machine included with the SDX325/SDX330D and firmware update may be required).
Specifications
Detailed technical specs to help you understand performance, compatibility, and requirements.
Feature | Value |
|---|---|
| Unit Weight | 37.48 |
| Carton Dimensions | 25" x 32" x 26" |
| Carton Weight | 59.08 |
Feature | Value |
|---|---|
| Power Source | 120 v |
Feature | Value |
|---|---|
| Presser Foot Leveling | Yes |
| Accessory Storage | Yes |
| Mouse Capability by USB | Yes |
| Branded Series | Innov-is |
| Adjustable Presser Foot Pressure | Yes |
| Additional Specialty Feet Available | Yes |
| UL/CSA Listed Voltage | 110v |
| Adjustable Screen Brightness | Yes |
| Specialty Feet Included | Yes |
| Thread Tension | Automatic |
| USB | Yes |
| Feed Dog Points | 7 |
| Number of USB Ports | 2 |
| Thread Sensor On/Off | Yes |
| Wireless Enabled | Yes |
| Display Type | LCD |
| Realistic Preview | Yes |
| Needle Position Key | Yes |
| Screensaver | Yes |
| Included Accessory Feet | Buttonhole Foot, Button Fitting Foot, 1/4" Foot, Dual Feed (Digital Dual Feed) Foot, Straight Stitch Foot, Free-Motion Echo Quilting Foot, Zipper Foot, Overcasting Foot, Blindstich Foot, Monogramming Foot, Zigzag Foot, Embroidery Foot, Open Toe Foot, Free-Motion Quilting Foot |
| Stitch Selector Type | Touch Panel |
| Lighting Type | LED |
| Quick Set Bobbin | Yes |
| Automatic Thread Cutter | Yes |
| Memory Card Reader | No |
| Thread Sensor | Bobbin Sensor, Upper Thread Sensor |
| Needle Stop Position Up/Down | Yes |
| Start/Stop Button | Yes |
| Built-in Memory | Yes |
| LCD Display Size | 5.3" x 8.5" |
| Needle Threading System | Automatic |
| Number of Presser Feet | 13 |
| Built-in Languages | Yes |
| Display | 16777216 |
Feature | Value |
|---|---|
| Frame Designs Shapes | 10 |
| Standard Included Frames | 9.5" x 9.5, 5" x 7", 4" x 4", 9.5" x 14" |
| Built-in Embroidery Designs featuring Disney/Pixar Characters | 101 |
| Pattern Rotating Increments | 0.1 Degree, 1 Degree, 10 Degrees, 90 Degrees |
| On-Screen Help | Yes |
| InnovEye Technology | No |
| Appliqué Creator Function | Yes |
| Thread Anchor | No |
| Curved Text on Screen Editing | Yes |
| Link Multiple Machines | No |
| Built-in Designs | 727 |
| My Custom Design Feature | Yes |
| Print and Stitch Technology | No |
| Embroidery Position Marker | Yes |
| Maximum Zoom | 200 |
| Adjustable Design Icon Size Setting | Yes |
| Programmable Monochrome Embroidery | No |
| Maximum Embroidery Area | 9.5" x 14" |
| Eyelet Threading System | Yes |
| Sewing Speed Range (Frames) | 1050 |
| Trial Position Layout Function | Yes |
| Color Shuffling Function | Yes |
| Space Reduction among Embroidery Alphabets | Yes |
| Computer Connectivity | Yes |
| On-Screen Automatic Density Adjustment | Yes |
| Automatic Feed Thread Cutting | Yes |
| Sewing Decorative Stitches with Embroidery Arm Attached | Yes |
| Drag and Drop Editing | Yes |
| Built-in Embroidery Lettering Alphabet Fonts | 24 |
| Cap Frame Capability | No |
| Frame Designs Stitches | 14 |
| Light and Audio Cue to Alert Thread Breakage | No |
| Built-in Alphabet Designs | Yes |
| Built-in Border Function | Yes |
| Resume Function | Yes |
| Light and Audio Cue to Alert Finished Designs | No |
| Monogramming Font Styles | Yes |
| Basting Stitch Before Embroidery | Yes |
| Speed Adjustment | Yes |
| Numbered Threading Guides | Yes |
| Light and Audio Cues with On/Off Modes | No |
| Thread Wiper | Yes |
| Adjustable Embroidery Speed Settings | Yes |
| On-Screen Editing | Yes |
| Light and Audio Cue to Alert Thread Change | No |
| Innova Chrome LED Thread Color System | No |
Feature | Value |
|---|---|
| Drop Feed | Automatic |
| Built-in Quilting Stitches | Yes |
| Free Motion Quilting Foot | Yes |
| Included Quilting Feet | Yes |
| Built-in Sewing Lettering Fonts | 4 |
Feature | Value |
|---|---|
| Maximum Sewing Speed | 1050 |
| Pivot Function | Yes |
| Independent Bobbin Winding Motor | Yes |
| My Custom Stitch Feature | Yes |
| Color Coded Thread System | Yes |
| Knee Lifter | Yes |
| Automatic Height Adjustment | Yes |
| Button Hole Styles | 16 |
| Sideways Sewing | Yes |
| Stitch Width | 7 |
| Back to Beginning Key | Yes |
| Reinforcement/Reverse Stitches | Yes |
| Multi-Directional Sewing | Yes |
| Stitch Length | 5 |
| Quick Reference Stitch Guides | Yes |
| Built-in Lettering Fonts | 4 |
| Media Type (USB) | Yes |
Feature | Value |
|---|---|
| Carton Contents | Zigzag Foot “J” (on machine),Monogramming foot, Overcasting Foot “G”, Zipper Foot “I”, Buttonhole Foot “A”, Blind Stitch foot “R”, Button Fitting foot “M”, Compact Dual Feed Foot, Straight Stitch Foot, Free Motion Open Toe quilting foot “O”, Free Motion Quilting Foot “C”, Free Motion Echo Quilting Foot “E”, Embroidery Foot “W+” with LED pointer, 1/4" Piecing Foot with guide, Adapter, Screw (small), Needle set (75/11 2 needles, 90/14 2 needles, 90/14 2 needles: Ball point needle (gold colored)), Twin needle (2/11 needle), Ball point needle set (75/11 2 needles: Ball point needle for embroidery), Bobbin × 10 (One bobbin is in machine), Seam Ripper, Scissors, Cleaning brush, Eyelet punch, Screwdriver (S/L), Disc-shaped screwdriver, Multi-purpose screwdriver, Spool cap (small), Spool cap (medium) × 2 (One spool cap is on machine), Spool cap (large), Thread spool insert (mini king thread spool), Bobbin clip × 10, Spool felt (on machine), Spool net × 2, Embroidery needle plate cover, Touch pen (stylus), Knee lifter, Foot controller, Foot Controller, Standard bobbin case (green marking on the screw) (on machine), Alternate bobbin case (no color on the screw), Straight stitch needle plate, Cord guide bobbin cover, Bobbin cover (with mark) (on straight stitch needle plate), Bobbin cover (on machine), Embroidery frame with decal set 36 cm (H) × 24 cm (W) (approx. 14 inches (H) × 9-1/2 inches (W)), Embroidery frame with decal set 24 cm (H) × 24 cm (W) (approx. 9-1/2 inches (H) × 9-1/2 inches (W)), Embroidery frame with decal set 18 cm (H) × 13 cm (W) (approx. 7 inches (H) × 5 inches (W)), Embroidery frame with decal set 10 cm (H) × 10 cm (W) (approx. 4 inches (H) × 4 inches (W)), Embroidery positioning sticker sheets × 4, Lens calibration sheet, Embroidery bobbin thread (#60, white), Stabilizer material, Grid sheet set, Chalk pencil, Bobbin center pin and instruction sheet, Accessory case, Telescopic thread guide, Spool support, Spool pin × 2, Screw and washer, Spool cap (XL) × 2, Spool holder × 2, Spool cap base × 2, Spool felt × 2, Ring × 4, Operation Manual, Quick Reference Guide |
| USB Cable | No |
| Warranty | 2/6/25 Year Premium Limited Warranty |
| Embroidery Stitch Out‡ | In some cases, there may be some difference between the LCD view and the actual embroidery stitch-out, based on materials used. |
