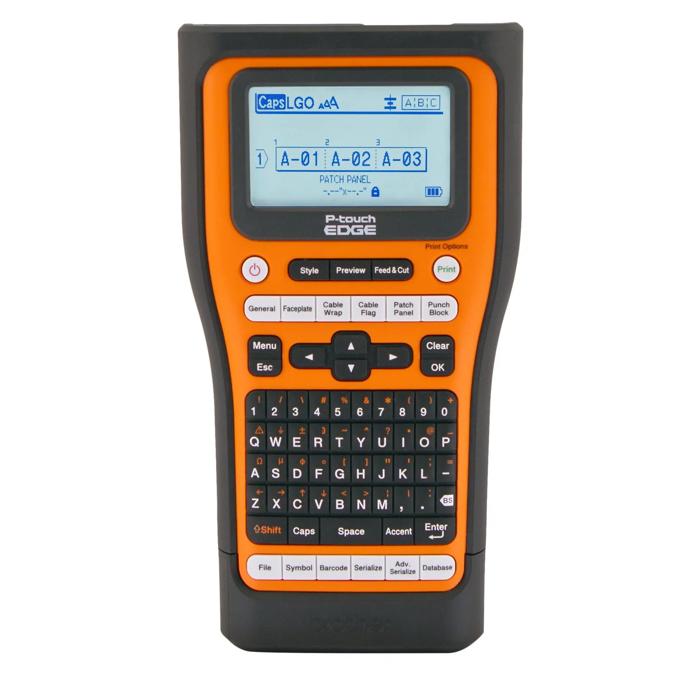

Brother P-touch EDGE handheld label maker with QWERTY keyboard and LCD display

e510eus

PTE510VP

thermal-printers-labelers

PTE510VP

HandheldPrinters,LabelPrinters

PTE510VP

Brother P-touch EDGE PT-E510VP USB-C® Handheld Industrial Label Printer, Up to ~1in Labels

Name: Brother P-touch EDGE PT-E510VP USB-C® Handheld Industrial Label Printer, Up to ~1in Labels
Brand: Brother
SKU: PTE510VP
Price: 248 USD
Availability: InStock

$248.00

current price $248.00

Create labels faster with quick application keys for cable wrap, cable flag, patch panel, punch block, and faceplate labels, plus add QR codes & linear barcodes

Print a strip of half-cut labels with the dual auto-cutter to make peel-and-apply easy

Store your databases and templates to print quickly from existing work

About the Product

In the Box

Additional Information

Main Features

Full line of industrial media types, sizes and colors

Label large industrial projects with laminated labels & heat shrink tubes from 6mm to 24mm¹

Smart & intuitive operation

Create labels faster with quick application keys for cable wrap, cable flag, patch panel, punch block, and faceplate labels, plus add QR codes & linear barcodes

Full & half automatic cutters

Print a strip of labels with the dual auto-cutter to make peel-and-apply easy

Save time & helps prevent mistakes

Store your databases and templates to print quickly from existing work

USB-C® Power Delivery (PD) Standard

Charge the printer and connect to your PC with USB-C® to design and print from P-touch Editor label design software

Versatile hand strap

Ambidextrous hand strap and utility ring provides added drop-protection and convenience

Awards & Recognition

Detailed technical specs to help you understand performance, compatibility, and requirements.

Brother P-touch EDGE PT-E510VP USB-C® Handheld Industrial Label Printer, Up to ~1in Labels,

Specifications

Detailed technical specs to help you understand performance, compatibility, and requirements.

Dimensions

General

Power

Print Features

Consumables

Cut

Environment Compatibility

Hardware Features

What’s Included

Feature	Value
Available Color	Orange
Channel Protected	No

Feature	Value
Battery Yield	20 Tapes
Battery Charge Time	6 Hours (3 Hours for models compatible with PA-AD-004 Adapter)
Battery Requirements	Rechargeable Li-ion Battery (BA-E001)
Power Management	Auto Power On/Off
Battery Life	300 Cycles
Power Source Options	AutoRanging Power Supply, Replaceable Rechargeable Battery

Feature	Value
Linear Barcodes	Code39, Code128, ITF (I-2/5), UPC-A, UPC-E, EAN-8, EAN-13, GS1-128 (UCC/EAN-128), CODABAR (NW-7)
Stored Templates	Up to 99 templates
Bitmap Fonts	Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic
Outline Fonts	Print from Software
Energy Conservation Certifications	ENERGY STAR Unique ID: 2682260

Feature	Value
Media Width Max	0.94" (24mm)
Consumable Format	Cartridge with Continuous Media
Tape Type	Laminated, Non-Laminated, Standard Laminated, Flexible ID, Extra Strength Adhesive, Iron-On Fabric, Acid Free, Tamper Evident, Heat Shrink, Stencil

Feature	Value
Operating Environment	50°F - 95°F (10°C - 35°C)
Storage Environment	-4°F - 140°F (-20°C - 60°C)

Feature	Value
Media Compatibility	Flexible ID, Extra-Strength Adhesive, Standard Adhesive
Compatible Tape Families	HGe, TZe, HSe, STe
Compatible Tape Widths	3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm

¹Maximum media width	Media widths listed in inches are approximate. Actual media widths are listed in millimeters (mm).
²UL certified labels	All label components and print imaging for certain Brother industrial quality tapes have been tested by Underwriters Laboratories and the printed laminated label is a certified UL recognized component (PGJI2.MH21016)
Database requirements	CSV database file is required for the database functionality in the printer. P-touch Editor for Windows is compatible with the following database file formats: txt, CSV, xls, xlsx, mdb and accdb.
Bundled software	Additional download required. Software app compatibility may vary based on operating system and by label maker.
