following are the toner cartridges available for this series:
toner cartridge has a yield of approximately 2,500 pages*
TN110Y standard toner cartridge has a yield of approximately 1,500
TN115BK high yield
toner cartridge has a yield of approximately 5,000 pages*
TN115Y high yield toner cartridge has a yield of approximately 4,000
toner yield based on 5% page coverage (Letter).
page count will vary depending on your average document type (standard letter,
The message TONER
LIFE END REPLACE X appears on the display if any one of the following
The toner cartridge
is at its end of life and needs to be replaced.
The toner cartridge
is not installed properly.
A toner cartridge
from another machine was installed as a replacement.
Brother toner cartridge was installed as a replacement.
If TONER LIFE END
continues to appear on the LCD after installing a replacement toner, answer
the following questions:
the cartridge replaced and immediately after replacing the cartridge, TONER LIFE
END continued to appear? This means the TONER LIFE END message NEVER
cleared and NO pages were printed after the new cartridge was installed because
the TONER LIFE END message remained on the display.
B. Was the
cartridge replaced and cleared TONER LIFE END, but the message returned after
some usage of the new toner? This means a new cartridge was installed and
the TONER LIFE END message cleared. Then, after printing some pages, TONER
LIFE END re-appeared on the LCD.
If the answer is
A, go to STEP 1.
If the answer is
B, refer to the solution - I
recently installed the starter or a new toner cartridge and I don't think I got
the full yield from the toner. What can I do?
the color toner currently displayed on the LCD is the same color as the toner
cartridge that was replaced. Be sure to
read the entire message currently on the LCD (Ex: TONER LIFE END, Replace black (k) Toner
If YES, the
color toner currently on the LCD is the same color toner that was replaced, go
to STEP 2.
If NO, the
color currently on the LCD is NOT the same color toner that was replaced, a
replacement toner for the color currently on the LCD must be installed to clear
the message. It appears that after the replacement toner cartridge was
installed, a new message appeared for a different color toner. After
installing a new out of the box, genuine Brother replacement toner, your issued
should be resolved.
2. Was a NEW, out of
the box, genuine Brother toner cartridge (TN110 or TN115) installed as a
replacement toner or was a used genuine Brother toner from another machine was
A brand new, out of
the box genuine Brother toner MUST be installed to clear the TONER LIFE END
message. Do NOT install a previously used or installed toner cartridge
from another machine. Our toner cartridges are manufactured with a reset
lever that moves when installed into the machine and notifies the machine a new
cartridge has been installed. This mechanically triggers the machine to
reset the toner life end message. If a used cartridge is installed into a
machine that needs to be reset, the used cartridge lever is NOT in the proper
position to trigger the machine to reset and the error will not clear from the
display. The same applies if a non-genuine Brother toner cartridge is
installed. It may not have the proper mechanism to reset the
If a brand new, out
of the box genuine Brother toner was installed, go to STEP
If a used genuine
Brother toner or a non-genuine Brother toner was installed, remove it and
install a new, out of the box genuine Brother toner cartridge to clear the
message. After installing a new out of the box, genuine Brother
replacement toner, your issued should be resolved.
strongly recommends that customers use only genuine Brother drum units and/or
toner cartridges. Each Brother laser printer is designed to work at pre-set
temperatures that are matched exactly to each of our individual toner
formulations. Each individual component is designed to work with the other
to ensure quality and reliability. Using non-Brother supplies may affect the
hardware performance, print quality and machine reliability. The Brother limited
warranty does not apply to any problem that is caused by the use of third party
drum units, toner cartridges or toner.
3. Do the

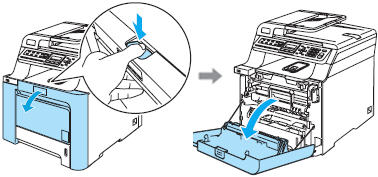

a. Press the front
door release handle located above the Brother logo and open the front

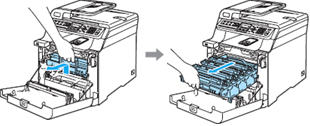

b. Lift up on the
green handle, pull toward you, and slide out the drum unit until it stops. (The
green handle has a sticker of a black circle with a white number 1 on
c. Remove the toner
cartridge by grasping the handle and pulling straight up on the cartridge you
want to remove.
d. Gently rock the
toner cartridge from side to side five or six times to distribute the toner
evenly inside the cartridge. Redistributing the toner may clear the
message when the drum and toner assembly is reinstalled into the
Handle the toner cartridge(s) carefully. If toner scatters on hands or
clothing, immediately wipe it off or wash it with cold water.
e. Reinstall the toner
cartridge by holding the handle of the cartridge and sliding the toner cartridge
into the drum unit. Match the toner cartridge color to the same color label on
the drum unit and fold down the toner cartridge handle (A) once the toner
cartridge is in place.

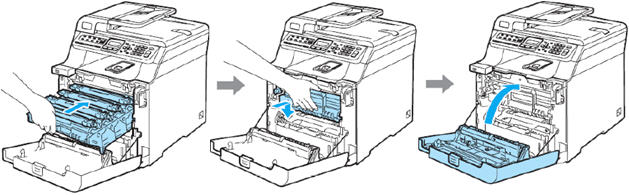

f. Push the drum unit
into the machine until it stops and close the front
If the TONER LIFE
END message continues to appear, the
machine has a one year limited on-site warranty. If the machine is in
warranty, call Brother Customer Service at 1-877-Brother (1-877-276-8437) for
the printer is out of warranty, contact a Brother Authorized Service Center for
repair by clicking on the link below:
