Description of Problem 100000017552

The Paper LED (light) is on solid or steady and the Status LED (light) is red; Status Monitor states No Paper. What should I do?


Description of Solution 200000022409

This solution is intended to troubleshoot the printer when the Paper LED stays on and the Status LED is red. If the Paper LED is flashing, refer to the solution - "How do I clear the flashing Paper and red Status LEDs (lights)? The Status Monitor states Paper Jam, Incorrect Paper Size for Auto DX, or Size Mismatch, what should I do?"





If the Paper and Status LEDs (light) of your machine is on steady and the Status Monitor states "MP Tray", continue to STEP 1.



If the Paper and Status LEDs (light) of your machine is on steady and the Status Monitor states "No Paper T1" or "No Paper T2" go to STEP 4.



If the Paper and Status LEDs (light) of your machine is on steady and you are not sure what the Status Monitor message is, continue to STEP 1.

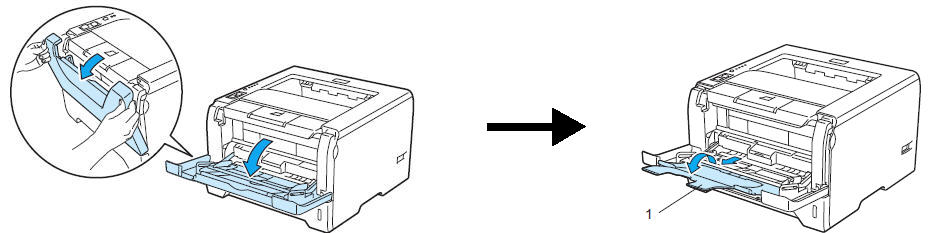

1. Open the manual feed cover. Pull out the MP tray support (1) and unfold the flap (2).





2. Using both hands, slide the manual feed paper guides to the width of the paper that you are going to use.  Make sure the paper is below the max fill mark (1) on the paper guide.





3. Press the GO button.



- If the page prints and Paper and Status LEDs s turns off, the print job was sent to the MP tray of the printer. Discontinue troubleshooting.



- If the page prints and the Paper and Status LEDs come back on, a multiple page print job was sent to the manual feed slot of the printer. You can either keep loading one sheet of paper in the manual feed slot until the entire document prints and the Paper and Status LEDs s turn off or you can cancel the print job, refer to the solution - "How do I cancel print jobs using the control panel Job Cancel button?"



- If the page does not print and the Paper and Status LEDs s stay on, remove the paper from the manual feed slot and continue to STEP 4.



4. Make sure you use paper that meets Brother's recommended paper specifications.  You can use the following types of print media: thin paper (16 - 20 lbs), plain paper (20 - 28 lbs), thick paper (28 - 43 lbs), bond paper, recycled paper, labels, or envelopes. Please make sure you are using paper that is 20 - 24 lb, made for plain-paper copying, and is specifically marked for use in a laser printer.



- If the paper being used meets these requirements, continue to STEP 5.



- If the paper being used does not meet these requirements, it should be replaced with paper that meets the recommended specifications.  To continue troubleshooting, continue to STEP 5.



5. Adjusting the media type and paper source in the printer driver may resolve this issue. Select the media you are using for Media Type, and select "Manual" for Paper Source.



Windows



Macintosh





Windows



a.  Open the Printers folder.



Windows 8:



i.  Move your mouse to the lower left corner of the Desktop or Start screen.



ii.  Right-click the screen and then left-click Control Panel.



iii.  Under Hardware and Sound, click View devices and printers.



Windows 7 or Server 2008 R2:



- Click Start => Device and Printers

or

- Click Start => Control Panel => Hardware and Sound => Devices and Printers



Windows Vista or Server 2008:



-  Click Start => Control Panel => Hardware and Sound => Printers



Windows XP or Server 2003:



- Click Start => Printers and Faxes

or

- Click Start => (Settings) => Control Panel => Printers (and Faxes)

or

- Click Start => Control Panel => Printers and Other Hardware => View Installed Printers



Windows 2000: Start => Settings => Printers



b.  Right mouse click on the printer and left click Printing Preferences.



c.  On the Basic tab, select the media type you are using next to Media Type.



d.  Under Paper Source near the bottom, select Tray 1 next to both First Page and Other Pages.



e.  Click Apply to save the changes.



f.  Click OK to exit.



g.  Send the print job to the printer.



h.  Continue to STEP 6.



Macintosh



a.  From the application, click File and Print.



b.  If Printer and Presets are the only options on the Print window, follow the steps below for your operating system.

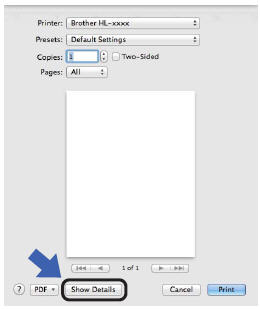

Macintosh OS 10.7 - 10.8: Click the Show Details button to the bottom to expand the Print window.

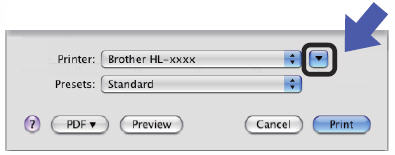

Macintosh OS 10.5 - 10.6: Click the blue down arrow to the right of the printer name to expand the Print window.





c.  Click on the drop menu (Copies & Pages or the name of the application) and click on Paper Feed.



d.  Next to All pages from: select Tray 1.



e.  Click on the drop menu (Copies & Pages or the name of the application) and click on Print Settings.



f.  Next to Media Type, select the media type you are using.



g.  After you change any settings, if you want to save the current settings, you will need to save it as a preset.



Macintosh 10.7 - 10.8: Click on Default Settings next to Presets then select Save Current Settings as a Preset…. Type a name for this preset and click OK. This will be the default setting each time you print.



Macintosh 10.4.11 - 10.6: Click on Standard next to Presets then select Save As. Type a name for this preset and click OK. Each time the Print window is opened, click Standard next to Presets and select the name of the Preset you wish to use.



h.  Click Print to print the document.



i.  Continue to STEP 6.



6. Check if the document prints.



- If the Paper and Status LEDs s turn off and your page prints, discontinue troubleshooting.



- If the Paper and Status LEDs s stay on, continue to STEP 7.

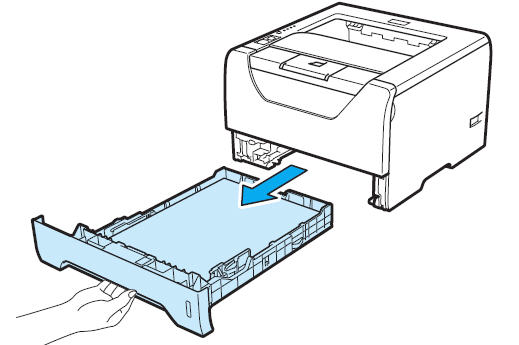

7. Pull the paper tray completely out of the machine and remove any paper from it.

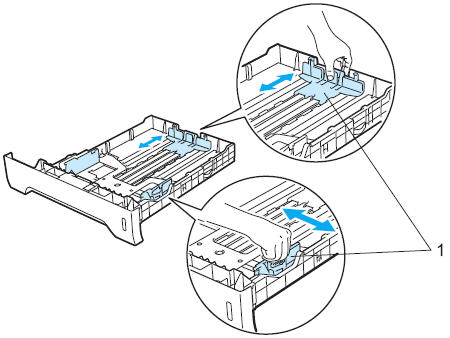

8. While pressing the green paper-guide release levers, slide the paper guides (1) to fit the paper size.  Make sure that the guides are firmly in the slots.

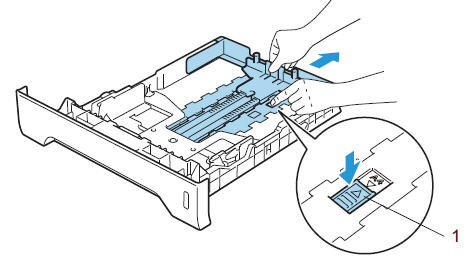

NOTE: For legal size paper, press the release button (1) in the bottom of the paper tray and then pull out the back of the paper tray.

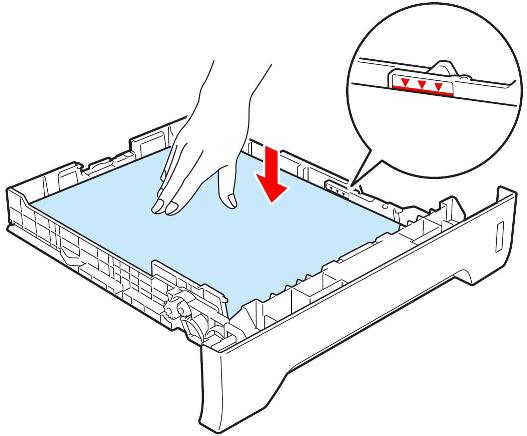

9. Turn the stack of paper over and put some of the paper back into the tray and make sure of the following:



a. The paper is below the maximum paper mark. Over-filling the paper tray will cause paper jams.





b. The side to be printed on must be face down.



c. The paper guides touch the sides of the paper so it will feed properly.



d. Put the paper tray firmly back into the machine.  Make sure that it is completely inserted into the machine.



10. Send a print job to the printer.



- If the Paper and Status LEDs turns off and your page prints, discontinue troubleshooting.



- If the Paper and Status LEDs stays on, continue to STEP 11.



11. If the paper pick-up roller is dirty, the machine may not feed paper.  In that case, clean the paper pick-up roller as follows:



a. Turn off the machine's power switch.  Disconnect all cables, and then unplug the power cord from the AC power outlet.



b. Pull the paper tray out of the machine.





c. Remove all of the paper and anything that may be stuck inside, from the paper tray.



d. Lightly moisten a lint-free cloth with lukewarm water, and then in the paper tray, wipe the separate pad (1) to remove any dust.

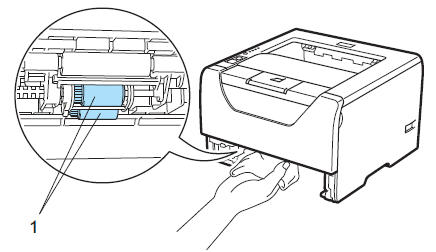

e. Wipe the two paper pick-up rollers (1) inside the machine.







f. Put the paper back into the paper tray.



g. Put the paper tray back in the machine.



h. Plug the machine's power cord back into the AC power outlet first, and then reconnect all cables.  Turn on the machine's power switch.



12. Send a print job to the printer.



- If the Paper and Status LEDs turns off and your page prints, discontinue troubleshooting.



- If the Paper and Status LEDs stays on, continue to STEP 13.



13. Adjusting the media type and paper source in the printer driver may resolve this issue. Select the media you are using for Media Type, and select "Tray 1" for Paper Source.



Windows



Macintosh





Windows



a.  Open the Printers folder.



Windows 8:



i.  Move your mouse to the lower left corner of the Desktop or Start screen.



ii.  Right-click the screen and then left-click Control Panel.



iii.  Under Hardware and Sound, click View devices and printers.



Windows 7 or Server 2008 R2:



- Click Start => Device and Printers

or

- Click Start => Control Panel => Hardware and Sound => Devices and Printers



Windows Vista or Server 2008:



-  Click Start => Control Panel => Hardware and Sound => Printers



Windows XP or Server 2003:



- Click Start => Printers and Faxes

or

- Click Start => (Settings) => Control Panel => Printers (and Faxes)

or

- Click Start => Control Panel => Printers and Other Hardware => View Installed Printers



Windows 2000: Start => Settings => Printers



b.  Right mouse click on the printer and left click Printing Preferences.



c.  On the Basic tab, select the media type you are using next to Media Type.



d.  Under Paper Source near the bottom, select Tray 1 next to both First Page and Other Pages.



e.  Click Apply to save the changes.



f.  Click OK to exit.



g.  Send the print job to the printer.



h.  Continue to STEP 14.



Macintosh



a.  From the application, click File and Print.



b.  If Printer and Presets are the only options on the Print window, follow the steps below for your operating system.



Macintosh OS 10.7 - 10.8: Click the Show Details button to the bottom to expand the Print window.





Macintosh OS 10.5 - 10.6: Click the blue down arrow to the right of the printer name to expand the Print window.





c.  Click on the drop menu (Copies & Pages or the name of the application) and click on Paper Feed.



d.  Next to All pages from: select Tray 1.



e.  Click on the drop menu (Copies & Pages or the name of the application) and click on Print Settings.



f.  Next to Media Type, select the media type you are using.



g.  After you change any settings, if you want to save the current settings, you will need to save it as a preset.



Macintosh 10.7 - 10.8: Click on Default Settings next to Presets then select Save Current Settings as a Preset…. Type a name for this preset and click OK. This will be the default setting each time you print.



Macintosh 10.4.11 - 10.6: Click on Standard next to Presets then select Save As. Type a name for this preset and click OK. Each time the Print window is opened, click Standard next to Presets and select the name of the Preset you wish to use.



h.  Click Print to print the document.



i.  Continue to STEP 14.



14. Check if the document prints.



- If the Paper and Status LEDs turns off and your page prints, discontinue troubleshooting.



- If the Paper and Status LEDs stays on and your machine is within warranty, you can locate a Brother Authorized Service Center (ASC) in your area by clicking on the link below:

http://www.brother-usa.com/service/default.aspx or contact Brother Customer Service by calling 1-877-Brother (1-877-276-8437) Monday through Friday, excluding holidays.



If your machine is out of warranty, you can locate a Brother Authorized Service Center using the information listed above.
