Description of Problem 100000017837

The printed pages are faint, light, or faded. How do I improve print quality?


Description of Solution 200000022757

Brother strongly recommends that customers use only genuine Brother drum units and/or toner cartridges. Each Brother laser printer is designed to work at pre-set temperatures that are matched exactly to each of our individual toner formulations.  Each individual component is designed to work with the other to ensure quality and reliability. Using non-Brother supplies may affect the hardware performance, print quality and machine reliability. The Brother limited warranty does not apply to any problem that is caused by the use of third party drum units, toner cartridges or toner.



1. Check the printer's environment. High temperatures and high humidity can cause this issue. The Brother machine should be operated within the following ranges: temperature 50 to 90.5 F; humidity 20% to 80% without condensation.



2.  If the whole page is light, the toner save mode may be on in the printer driver. Follow the steps below for your operating system, to check if Toner Save Mode is on.



Windows

Macintosh





Windows



a. Open the Printers folder.



Windows 7 and Windows Server 2008 R2: Click Start => Device and Printers.



Windows Vista and Windows Server 2008: Click Start => Control Panel => Hardware and Sound => Printers.



Windows XP and Windows Server 2003: Click Start => Printers and Faxes.



Windows 2000: Start => Settings => Printers.



b. Right click the printer icon for your model and left click Printing Preferences.



c. Click the Advanced tab.



d. Locate the Toner Save Mode section. Verify the Toner save Mode box is NOT selected.



e. Click Apply if you make a change.



f. Do not close the Printing Preferences window, go to STEP 3 to check or change the density adjustment.





Macintosh



a. Open a document you wish to print. Click File and Print.



b. Click on the drop menu (normally Copies & Pages by default) and click on Print Settings.



NOTE: In some programs, Copies & Pages may not be listed. You may need to click on another button or tab before accessing Copies & Pages. For example, in the programs Illustrator and In Design you must click the Printer button at the bottom of the Print window to access the window that displays Copies & Pages.



NOTE: Macintosh OS 10.5 and 10.6: If Printer and Presets are the only options on the Print window, click the blue down arrow to the right of the printer name, this will expand the Print window. In some programs, Copies & Pages may not be listed, you will need to click the name of the Program near the middle of the window.



NOTE: Macintosh OS 10.7: If Printer and Presets are the only options on the Print window, click the Show Details button to the bottom, this will expand the Print window. In some programs, Copies & Pages may not be listed, you will need to click the name of the Program near the middle of the window.



c. Locate the Toner Save Mode section. Verify the Toner save Mode box is NOT selected.



d. Click Print.



e. Go to STEP 4.



3. The density can be adjusted in the Windows printer driver.



a. On the Advanced tab in the Printing Preferences window, click the Other Print Options� button.



b. Select Density Adjustment under Printer Function on the left side.



c. To darken the density, remove the check from the Printer Default box. Use the scroll bar to make the density darker.



d. Click Apply to save the change. Click OK.



4. To test, print a document from the computer.



- If the prints are still light or faded, continue to STEP 5.



5. Turn off the printer power switch and unplug the printer power cord.



6. Press the front cover release button and open the front cover.







7. Take out the drum unit and toner cartridge assembly.



CAUTION: After you have just used the printer, some internal parts of the printer will be extremely hot. Wait for the printer to cool down before you touch the internal parts of the printer.



NOTE:



-We recommend that you put the drum unit and toner cartridge assembly on a piece of disposable paper or cloth in case you accidentally spill or scatter toner.



- Handle the toner cartridge carefully. If toner scatters on your hands or clothes, wipe or wash it off with cold water at once.



- To prevent damage to the printer from static electricity, DO NOT touch the electrodes.



8. Clean the primary corona wire inside the drum unit by gently sliding the blue tab from right to left and left to right several times.







NOTE:  Be sure to return the tab to the home position on the left side. If you do not, printed pages may have a vertical stripe.



9. With the drum unit removed from the printer, clean the laser glass. The laser glass is located inside the printer where the drum was located. It is a piece of glass, about 1/2 inch wide and approximately 8 inches long, located on the top of the opening. Gently wipe the glass with a clean soft DRY cloth. DO NOT use isopropyl alcohol or any liquid to clean the glass.









10. Put the drum unit and toner cartridge assembly back in the printer.



11. Close the front cover.



12. Plug in printer power cord and turn on the power switch.



13. To test, print the Print Settings by pressing the GO button on the printer three times.



- If the issue continues, replace the toner cartridge with a new TN620 or TN650 toner cartridge by following the instructions in STEP 14.



14. Replace the toner cartridge as follows:



a. Turn OFF the machine's power switch (located on the right side of the machine). Unplug the power cord from the wall.



b. Open the front cover. Lift the drum unit slightly and pull it out. Place the drum unit on a piece of disposable paper or cloth to avoid spilling and scattering the toner.





c. Remove the toner cartridge from the drum by holding down the lock lever (blue tab) on the right side of the drum unit and lift the toner out.



NOTE: Handle the toner cartridge carefully. If toner scatters on your hands or clothes, immediately wash it off with cold water.

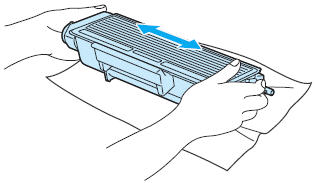

d. Unpack the new toner cartridge. Gently rock the toner cartridge from side to side five or six times to distribute the toner evenly inside the cartridge.





e. Remove the yellow protective cover from the toner cartridge.



f. Place the toner cartridge into the drum (be sure it clicks into place).









g. Clean the primary corona wire inside the drum unit by gently sliding the blue tab on the top of the cartridge from right to left several times. Return the blue tab to the home position until it clicks into place before reinstalling the drum unit assembly. If you do not return the blue tab to the home position, printed pages will have a stripe down the page.





h. Reseat the drum unit into the printer pressing it in securely.



i. Close the front cover making sure it latches on both sides.



j. Plug the printer into the wall outlet and turn on the power switch.



15. To test, print the Print Settings by pressing the GO button on the printer three times.



- If the problem continues, and your machine is within warranty, you can locate a Brother Authorized Service Center (ASC) in your area by clicking on the link below:

http://www.brother-usa.com/service/default.aspx or contact Brother Customer Service by calling 1-877-Brother (1-877-276-8437) Monday through Friday, excluding holidays.



If your machine is out of warranty, you can locate a Brother Authorized Service Center using the information listed above.
