Description of Problem 100000022320
How do I duplex or booklet print in Windows? How do I turn duplex or booklet print off?

Description of Solution 200000028377

The machine can automatic duplex or booklet print if the print media is 16 lb to 28 lb plain paper and letter or legal size.



NOTE: Automatic duplex or booklet printing on print media heavier than 28 lb will cause smears and excessive paper curling.



-      If the print media is within 16 lb to 28 lb plain paper and letter or legal size, continue to Automatic Duplex or Booklet Printing.



-      If the print media is not 16 lb to 28 lb plain paper and letter or legal size, you can manual duplex print by loading the paper one sheet at a time in the manual feed slot.  Continue to Manual Duplex or Booklet Printing.





Automatic Duplex or Booklet Printing



You can automatic duplex or booklet print for a single print job or for all print jobs.





To enable or disable Automatic Duplex or Booklet printing for a single print job:



1.    Open a multiple page document to print.



2.    Click File and Print.



3.    Click the Properties button next to the Brother machine.



NOTE: Some programs have a different Print window and Properties may not be listed. You may need to click on another button (ex. Preferences or Setup) or tab before accessing the printer driver settings.

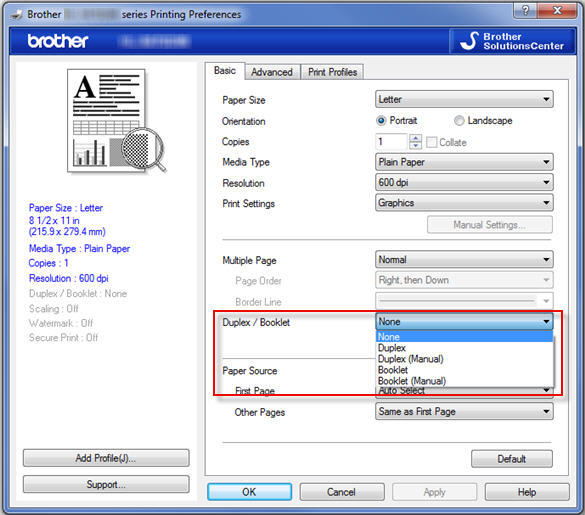

4.    To enable duplex or booklet printing, select "Duplex" or "Booklet" next to Duplex / Booklet.



-      If Duplex printing, continue to STEP 5.



-      If Booklet printing, go to STEP 6.



To disable duplex or booklet printing, select "None" next to Duplex / Booklet. Click OK. Click OK or Print to print the document.







5.    For Automatic Duplex printing:

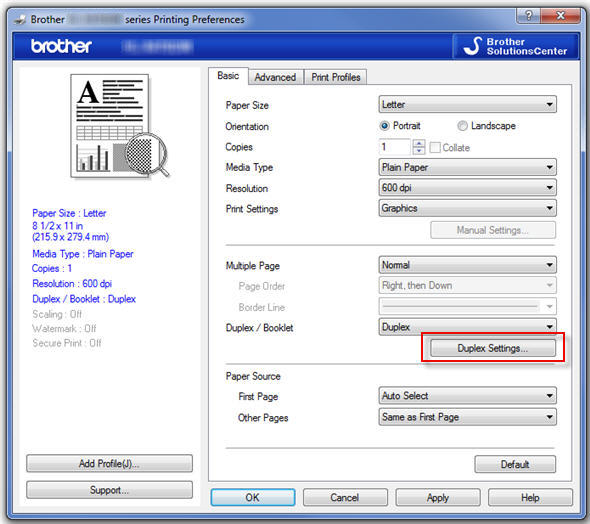

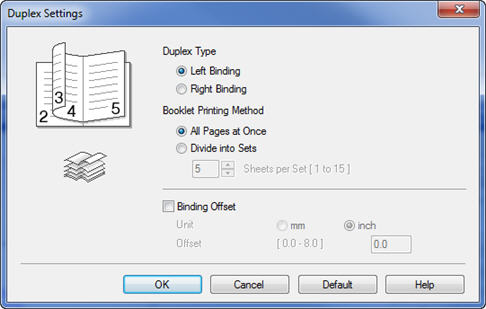

a.    Click the Duplex Settings button.

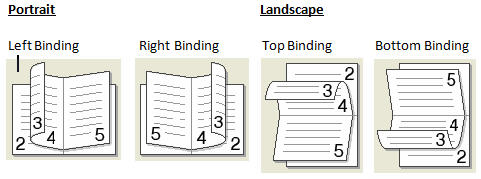

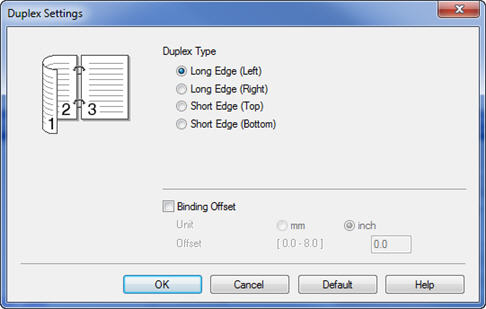

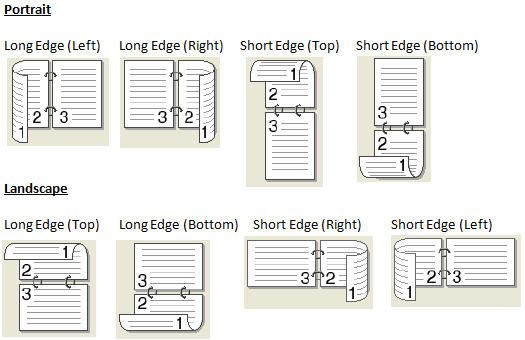

b.    Select the desired Duplex Type.











c.    Click OK. Click OK or Print to print the document.



6.    For Automatic Booklet printing:



a.    Click the Duplex Settings button.







b.    Select the desired Booklet Printing Method.











-      All Pages at Once will print every page in booklet format, 4 pages to every piece of paper, 2 pages per side. All you have to do is fold it in the middle.



-      Divide into Sets enables you to create multiple booklets eliminating the difficulty of folding large documents when printed in the standard booklet format. For example, when printing a 100 paged document, rather than struggling to fold and bind 25 sheets all at the same time this option would enable to create 5 separate booklets, each containing 5 sheets (if 5 sheets per set was specified).



7.    Click OK. Click OK or Print to print the document.





To enable or disable Duplex or Booklet printing for all print jobs



1.    Open the Printers folder. Refer to the following solution if needed - "How do I open the Printers folder in Windows?"



2.    Right click on the Brother printer driver and left click on Printing Preferences



3.    To enable duplex or booklet printing, select "Duplex" or "Booklet" next to Duplex / Booklet.



-      If Duplex printing, continue to STEP 4.



-      If Booklet printing, go to STEP 5.



To disable duplex or booklet printing, select "None" next to Duplex / Booklet. Click OK. Click OK to exit the Printing Preferences.







4.    For Automatic Duplex printing:



a.    Click the Duplex Settings button.







b.    Select the desired Duplex Type.











c.    Click OK. Click OK to exit the Printing Preferences.



5.    For Automatic Booklet printing:



a.    Click the Duplex Settings button.







b.    Select the desired Booklet Printing Method.













-      All Pages at Once will print every page in booklet format, 4 pages to every piece of paper, 2 pages per side. All you have to do is fold it in the middle.



-      Divide into Sets enables you to create multiple booklets eliminating the difficulty of folding large documents when printed in the standard booklet format. For example, when printing a 100 paged document, rather than struggling to fold and bind 25 sheets all at the same time this option would enable to create 5 separate booklets, each containing 5 sheets (if 5 sheets per set was specified).



c.    Click OK. Click OK to exit the Printing Preferences.





Manual Duplex or Booklet Printing



You can manual duplex or booklet print for a single print job or for all print jobs.





To enable or disable Manual Duplex or Booklet printing for a single print job:



1.    Open a multiple page document to print.



2.    Click File and Print.



3.    Click the Properties button next to the Brother machine.



NOTE: Some programs have a different Print window and Properties may not be listed. You may need to click on another button (ex. Preferences or Setup) or tab before accessing the printer driver settings.



4.    To enable duplex or booklet printing, select "Duplex (Manual)" or "Booklet (Manual)" next to Duplex / Booklet.



-      If Duplex printing, continue to STEP 5.



-      If Booklet printing, go to STEP 6.



To disable duplex or booklet printing, select "None" next to Duplex / Booklet. Click OK. Click OK or Print to print the document.







5.    For Manual Duplex printing:

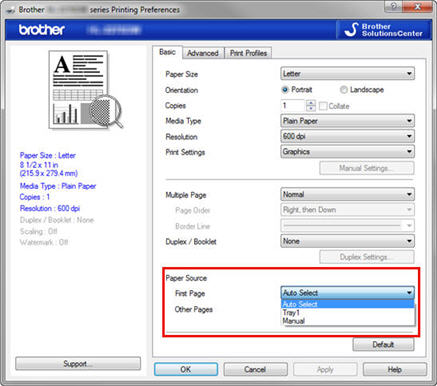

a.    For Paper Source, select "Manual" for First Page.  For Other Pages, select "Same as First Page".







b.    Click the Duplex Settings button.







c.    Select the desired Duplex Type.











d.    Click OK. Click OK or Print to print the document.

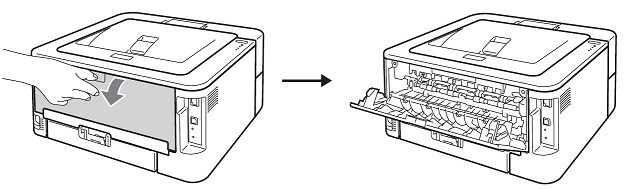

e.    If printing on paper that is 28 - 43 lbs, open the back cover (face-up output tray).

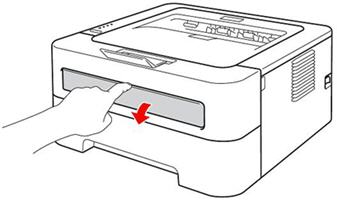

f.     Open the manual feed slot cover on the front of the machine.

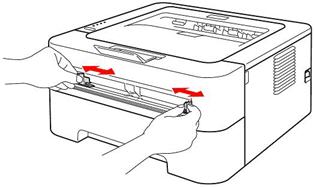

g.    Using both hands, slide the manual feed paper guides to the width of the paper that you are going to use.

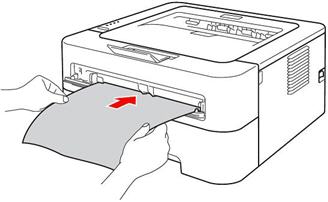

h.    The side to be printed should be face up. Using both hands, put one sheet of paper in the manual feed slot until the front edge touches the paper feed roller.






i.      Once the machine has grasped the paper, let go. The machine will hold the paper in place until the print data is sent to the machine.

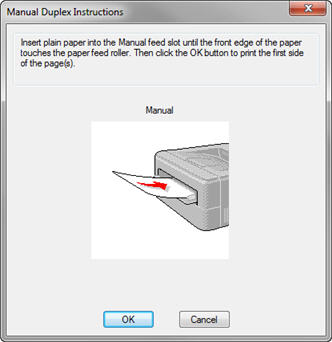

j.     Click OK on the window that explains to load paper in the manual feed slot.







k.    Repeat loading a sheet of paper in the manual feed slot until the Error LED turns off to indicate all the even numbered pages have printed in this manual duplex print job.

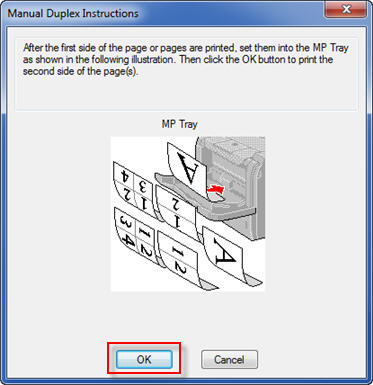

l.      Remove the printed paper from the output tray.  Load the first page in the manual feed slot, side to be printed (blank side) face up, and click OK.







m.  Repeat loading the sheets of paper in the manual feed slot until the Error LED turns off to indicate all the odd numbered pages have printed in this manual duplex print job.



6.    For Manual Booklet printing:



a.    For Paper Source, select "Manual" for First Page.  For Other Pages, select "Same as First Page".







b.    Click the Duplex Settings button.







c.    Select the desired Booklet Printing Method.











-      All Pages at Once will print every page in booklet format, 4 pages to every piece of paper, 2 pages per side. All you have to do is fold it in the middle.



-      Divide into Sets enables you to create multiple booklets eliminating the difficulty of folding large documents when printed in the standard booklet format. For example, when printing a 100 paged document, rather than struggling to fold and bind 25 sheets all at the same time this option would enable to create 5 separate booklets, each containing 5 sheets (if 5 sheets per set was specified).



d.    Click OK. Click OK or Print to print the document.



e.    If printing on paper that is 28 - 43 lbs, open the back cover (face-up output tray).







f.     Open the manual feed slot cover on the front of the machine.







g.    Using both hands, slide the manual feed paper guides to the width of the paper that you are going to use.







h.    The side to be printed should be faced up. Using both hands, put one sheet of paper in the manual feed slot until the front edge touches the paper feed roller.







i.      Once the machine has grasped the paper, let go. The machine will hold the paper in place until the print data is sent to the machine.



j.     Click OK on the window that explains to load paper in the manual feed slot.







k.    Repeat loading a sheet of paper in the manual feed slot until the Error LED turns off to indicate all the even numbered pages have printed in this manual duplex print job.



l.      Remove the printed paper from the output tray.  Load the first page in the manual feed slot, side to be printed (blank side) face up, and click OK.







m.  Repeat loading the sheets of paper in the manual feed slot until the Error LED turns off to indicate all the odd numbered pages have printed in this manual duplex print job.





To enable or disable Manual Duplex or Booklet printing for all print jobs



1.    Open the Printers folder. Refer to the following solution if needed - "How do I open the Printers folder in Windows?"



2.    Right click on the Brother printer driver and left click on Printing Preferences



3.    To enable duplex or booklet printing, select "Duplex" or "Booklet" next to Duplex / Booklet.



-      If Duplex printing, continue to STEP 4.



-      If Booklet printing, go to STEP 5.



To disable duplex or booklet printing, select "None" next to Duplex / Booklet. Click OK. Click OK to exit the Printing Preferences.



4.    For Manual Duplex printing:



a.    For Paper Source, select "Manual" for First Page.  For Other Pages, select "Same as First Page".







b.    Click the Duplex Settings button.







c.    Select the desired Duplex Type.













d.    Click OK. Click OK to exit the Printing Preferences. Follow the steps below after sending a print job.



e.    If printing on paper that is 28 - 43 lbs, open the back cover (face-up output tray).







f.     Open the manual feed slot cover on the front of the machine.







g.    Using both hands, slide the manual feed paper guides to the width of the paper that you are going to use.







h.    The side to be printed should be faced up. Using both hands, put one sheet of paper in the manual feed slot until the front edge touches the paper feed roller.







i.      Once the machine has grasped the paper, let go. The machine will hold the paper in place until the print data is sent to the machine.



j.     Click OK on the window that explains to load paper in the manual feed slot.







k.    Repeat loading a sheet of paper in the manual feed slot until the Error LED turns off to indicate all the even numbered pages have printed in this manual duplex print job.



l.      Remove the printed paper from the output tray.  Load the first page in the manual feed slot, side to be printed (blank side) face up, and click OK.







m.  Repeat loading the sheets of paper in the manual feed slot until the Error LED turns off to indicate all the odd numbered pages have printed in this manual duplex print job.



5.    For Manual Booklet printing:



a.    For Paper Source, select "Manual" for First Page.  For Other Pages, select "Same as First Page".







b.    Click the Duplex Settings button.







c.    Select the desired Booklet Printing Method.













-      All Pages at Once will print every page in booklet format, 4 pages to every piece of paper, 2 pages per side. All you have to do is fold it in the middle.



-      Divide into Sets enables you to create multiple booklets eliminating the difficulty of folding large documents when printed in the standard booklet format. For example, when printing a 100 paged document, rather than struggling to fold and bind 25 sheets all at the same time this option would enable to create 5 separate booklets, each containing 5 sheets (if 5 sheets per set was specified).



d.    Click OK. Click OK to exit the Printing Preferences.  Follow the steps below after sending a print job.



e.    If printing on paper that is 28 - 43 lbs, open the back cover (face-up output tray).







f.     Open the manual feed slot cover on the front of the machine.







g.    Using both hands, slide the manual feed paper guides to the width of the paper that you are going to use.







h.    The side to be printed should be faced up. Using both hands, put one sheet of paper in the manual feed slot until the front edge touches the paper feed roller.







i.      Once the machine has grasped the paper, let go. The machine will hold the paper in place until the print data is sent to the machine.



j.     Click OK on the window that explains to load paper in the manual feed slot.







k.    Repeat loading a sheet of paper in the manual feed slot until the Error LED turns off to indicate all the even numbered pages have printed in this manual duplex print job.



l.      Remove the printed paper from the output tray.  Load the first page in the manual feed slot, side to be printed (blank side) face up, and click OK.







m.  Repeat loading the sheets of paper in the manual feed slot until the Error LED turns off to indicate all the odd numbered pages have printed in this manual duplex print job.
