Description of Problem 100000030095

How do I configure and use the Scan to File feature in Windows using ControlCenter4 in Advanced Mode?


Description of Solution 200000038716

The scan to file feature allows you to scan a document and automatically save it into a specified location on your computer.

Click a link below for more information:



 Configure scan to file settings (for scanning from within the ControlCenter4 Software)



 Use scan to file from within the ControlCenter4 Software







 Configure scan to file settings (for scanning from the SCAN key on the Brother machine)



 Use the scan key on the Brother machine







CONFIGURE SCAN TO FILE SETTINGS (FOR SCANNING FROM WITHIN THE CONTROLCENTER4 SOFTWARE)

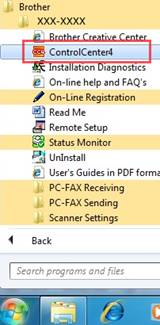

1.    Open the ControlCenter4 by clicking Start => (All) Programs => Brother => XXX-XXXX => ControlCenter4.

2.    The ControlCenter4 application will be loaded in the Task Tray near the system clock.

(Where XXX-XXXX is the model number of the machine.)



2. Double-click on the ControlCenter4 icon   (it is located in the Task Tray in the bottom right corner of your screen).

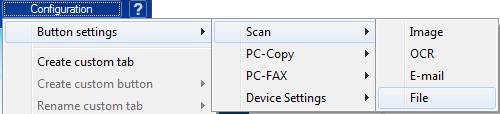

3.    Click on Configuration => Button Settings => Scan => File. The FILE configuration window will appear.

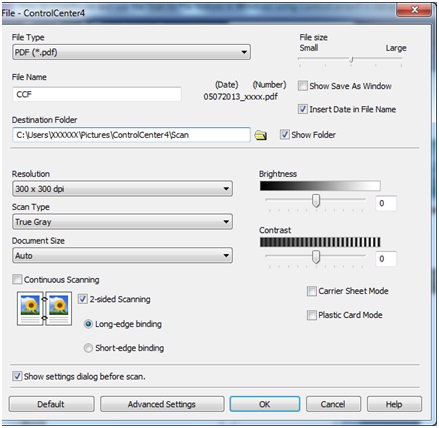

4. You can configure the following properties:



File Type:

The format that the file will be saved in.



NOTE: When choosing Secure PDF, you have the option of setting a password.

Click the key icon next to the file type and specify a password.

TIFF format is available as Compressed or Uncompressed.



File Name:

Select the default prefix for the scanned document's file name.

The date and sequence number will be added to the end of this prefix.



NOTE: If you select Show Save as Window, you will be prompted to specify the file's name and destination every time you scan.



File Size:

(JPEG, PDF, Secure PDF, or TIFF format) you can move the slider bar between SMALL and LARGE to adjust the file size.



NOTE: This option is not available if the Scan Type is set to Black & White.



Destination Folder:

This is where you specify the location where the file will be saved.



NOTE: If you select Show Folder, the destination folder will automatically display after each scan job is complete.



PreScan:

This option will allow you to preview the image before completing the scan.



Resolution:

This is how sharp an image will be based on the dots per inch scanned (DPI).

The higher the DPI the clearer the image will be, however the scan time and document size will increase.



Scan Type:

This is the color scan option.

The higher the color quality selected the longer the scan job will take to complete and the larger the file size will be.



Document Size:

Set the size of the document being scanned.



Brightness:

Adjust the setting (-50 to 50) to obtain the best image.

The default value is 0, representing an average.

You can set the level by dragging the slide bar to the right or left to lighten or darken the image respectively.

You can also type a value in the box for the setting.



NOTE: This option is not available if the Scan Type is set to 24-bit color.



Contrast:

You can increase or decrease the contrast level by moving the slide bar to the left or right.

You can also type a value in the box for the setting. An increase emphasizes dark and light areas of the image, while a decrease reveals more detail in gray areas.



NOTE: This option is not available if the Scan Type is set to Black & White or 24-bit color.



Manual Multi-Page Scan:

This will allow combining of multiple scan jobs into a single file.

After the page is scanned, you can choose to continuous scanning additional pages or finish.





4.    Once you have configured each setting click OK. All subsequent scans will use these settings.









USE SCAN TO FILE FROM WITHIN THE CONTROLCENTER4 SOFTWARE



1.    Place the document to be scanned on the scanner Flatbed or Automatic Document Feeder (ADF) depending on the model of your Brother machine.



2.    Open the ControlCenter4 by clicking Start => (All) Programs => Brother => XXX-XXXX => ControlCenter4.

The ControlCenter4 application will be loaded in the Task Tray near the system clock.

(Where XXX-XXXX is the model number of the machine)



3.    Double-click on the ControlCenter4 icon  (it is located in the Task Tray in the bottom right corner of your screen).

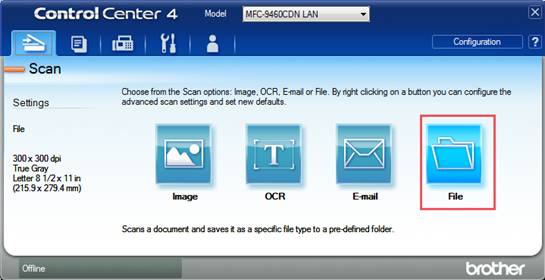

4.    On the Scan menu left-click the FILE button.







5.    The document will now scan and save into the specified location.









CONFIGURE "SCAN TO FILE" SETTINGS (FOR SCANNING FROM THE SCAN KEY ON THE BROTHER MACHINE)



1.    Open the ControlCenter4 by clicking Start => (All) Programs => Brother => XXX-XXXX => ControlCenter4.

2.    The ControlCenter4 application will be loaded in the Task Tray near the system clock.

(Where XXX-XXXX is the model number of the machine)



3.    Double-click on the ControlCenter4 icon  (it is located in the Task Tray in the bottom right corner of your screen).



4.    Click on Configuration => Button Settings => Device Settings => Device Scan Settings.







5.    Click on the File tab at the top. You can configure the following properties:

File Type: The format that the file will be saved in.



NOTE: When choosing Secure PDF, you have the option of setting a password.

Click the key icon next to the file type and specify a password.

TIFF format is available as Compressed or Uncompressed.



File Name:

Select the default prefix for the scanned document's file name.

The date and sequence number will be added to the end of this prefix.



File Size:

(JPEG, PDF, Secure PDF, or TIFF format) You can move the slider bar between SMALL and LARGE to adjust the file size.



NOTE: This option is not available if the Scan Type is set to Black & White.

Destination Folder:

This is where you specify the location where the file will be saved.



NOTE: If you select Show Folder, the destination folder will automatically display after each scan job is complete.



Resolution:

This is how sharp an image will be based on the dots per inch scanned (DPI).

The higher the DPI the clearer the image will be, however the scan time and document size will increase.



Scan Type:

This is the color scan option.

The higher the color quality selected the longer the scan job will take to complete and the larger the file size will be.



Document Size:

Set the size of the document being scanned.



Brightness:

Adjust the setting (-50 to 50) to obtain the best image.

The default value is 0, representing an average.

You can set the level by dragging the slide bar to the right or left to lighten or darken the image respectively.

You can also type a value in the box for the setting.



NOTE: This option is not available if the Scan Type is set to 24-bit color.



Contrast:

You can increase or decrease the contrast level by moving the slide bar to the left or right.

You can also type a value in the box for the setting.

An increase emphasizes dark and light areas of the image, while a decrease reveals more detail in gray areas.



NOTE: This option is not available if the Scan Type is set to Black & White or 24-bit color.





5. Once you have configured each setting click APPLY => OK. All subsequent scans will use these settings.















USE THE SCAN KEY ON THE BROTHER MACHINE



1.    Open the ControlCenter4 by clicking Start => (All) Programs => Brother => XXX-XXXX => ControlCenter4.

The ControlCenter4 application will be loaded in the Task Tray near the system clock.

(Where XXX-XXXX is the model number of the machine)





2. Place the document to be scanned on the scanner Flatbed or into the Automatic Document Feeder (ADF), depending on the model of your machine.



3.    Press the SCAN key on the Brother machine.



4.    Press SCAN TO PC.





5.    Press the RIGHT OR LEFT ARROW key and press FILE.



6.    If the software is installed on more than one computer, press the UP OR DOWN ARROW key to select the destination computer and press OK.



NOTE: If the LCD prompts for a PIN, enter the 4-digit PIN for the selected destination computer and press OK.



7.    To start scanning without changing additional settings, continue to STEP 8.

If you want to change the duplex setting, press DUPLEX SCAN and then press:



Off

Duplex Scan: Long Edge

Duplex Scan: Short Edge



BLACK or COLOR START to begin the process.

The document will now scan and save into the specified location.
