the new drum unit was installed, were you able to print using the new drum and
then the error indication re-appeared after some printing OR you have NOT
used the new drum at all because of the error indication.
you used the new drum and then the error indication appeared after some
printing, go to solution The
Drum LED is on. The Status Monitor states "Drum End Soon" or "Replace Drum".
What can I do?
you have NOT used the new drum because of the error indication, it
appears the new drum was not reset properly. There are instructions
provided with the replacement drum for resetting the drum life when a new drum
is installed. If the instructions are not completed or followed properly,
it will cause the Drum Error indication to appear. Go to STEP 2.
the following steps to reset the drum:
the front cover still open, press and hold the GO button. Continue
holding the GO button until all four of the LEDs light up.
all of the LEDs light up, release the GO button.
c. When the
STATUS LED stays red, close the front cover. After the machine
warms up, the Drum LED should be off.
the error indication no longer appears, press the GO button 3 times to
print the Printer Settings Page.
the error indication no longer appears, the issue is resolved.
the error indication reoccurs, repeat STEP 2 to
ensure the steps were completed correctly.
the error indication reoccurs and you already repeated the reset steps, go to
the error indication continues to occur, repeat STEP
2 to ensure the steps were completed correctly.
the error indication continues to occur and you already repeated the reset
steps, go to STEP 3.
the corona wire.

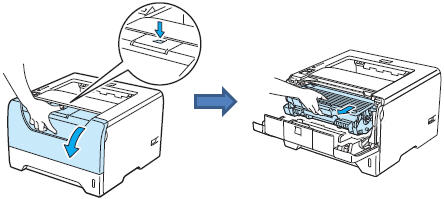

the front cover and remove the drum and toner assembly. Be sure to
the drum and toner assembly on a piece of paper in case of spilled or scattered
slide the blue tab from side to side at least 5 to 6 times.
the blue tab to the home position (1) at the far left.
sure the blue tab snaps into the home position before putting the drum and toner
assembly back into the machine. If the blue tab is not securely returned
to the home position, printed pages will have a vertical stripe down the

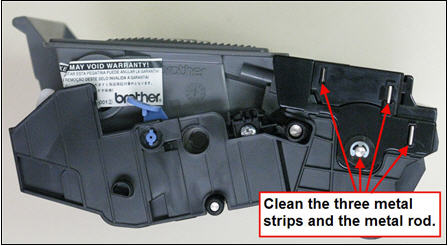

facing the drum and toner assembly, on the right side of the drum are three
small pieces of metal that look like staples and a metal rod sticking out of the
side. Clean each of these off with a soft DRY lint-free cloth.
the drum and toner assembly into the machine and close the front cover.
The error message should no longer appear.
the error indication continues to appear, confirm if you are using a genuine
Brother toner and drum.
recommends customers use only genuine Brother drum units and toner
cartridges. Each Brother laser printer is designed to work at pre-set
temperatures that are matched exactly to each of our individual toner
formulations. Each individual component is designed to work with the other
to ensure quality and reliability.
Brother supplies may affect the hardware performance, print quality and machine
reliability. The Brother limited warranty does not apply to any issue
caused by the use of third party drum units, toner cartridges and
If the error
continues to appear, the drum unit should be replaced with a new DR620.
The drum is a consumable item that requires periodic replacement.
If you find your
local retailer does not carry the specific supplies and accessories you are
looking to buy, you can purchase them by calling our toll-free Accessory Line on
1-877-552-MALL (6255) or shop online at our website – http://www.brothermall.com.
If the issue
continues after replacing the drum unit and your machine is within warranty, you
can locate a Brother Authorized Service Center (ASC) in your area by clicking on
the following link:
Or you can contact
Brother Customer Service by calling 1-877-BROTHER (1-877-276-8437) Monday
through Friday, excluding holidays.
If your machine is
out of warranty, you can locate a Brother Authorized Service Center using the
information listed above.
