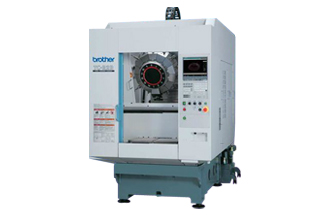

Standard column traverse machine
equipped with two-face table for high productivity.

Recommended machining

  • Automobile
  • General
  • IT
Machine specifications
item TC-R2B
CNC unit CNC-B00
Travels X axis
[mm (inch)]
420 (16.5)
Y axis
[mm (inch)]
320 (12.6) *7
Z axis
[mm (inch)]
305 (12.0)
Distance between table top and spindle nose end [mm (inch)] 200~505 (7.9~19.9)
Table Work area size
[mm (inch)]
600×300 (23.6×11.8)(one side)
Max. loading capacity (uniform load)
[kg (lbs)]
120 (265)(one side)*6
Spindle Spindle speed
[min-1]
10,000min-1specifications : 10 - 10,000
16,000min-1specifications : 16 - 16,000
10,000min-1high-torque specifications : 10 - 10,000
Speed during tapping
[min-1]
Max. 6,000
Tapered hole 7/24 tapered no.30
BT dual contact system(BIG-PLUS) Available
Feed rate Rapid traverse rate(XYZ-area)
[m/min (inch/min)]
50 x 50 x 50 (1,969 x 1,969 x 1,969)
Cutting feed rate
[mm/min (inch/min)]
1 - 10,000 (0.04 - 394) (X, Y), 1 - 20,000 (0.04 - 787) (Z)
ATC unit Tool shank type MAS-BT30
Pull stud type*4 MAS-P30T-2
Tool storage capacity
[pcs.]
14
Max. tool length
[mm (inch)]
200 (7.9)
Distance from taper gauge line/Max. tool diameter[mm (inch)] 0~30(0~1.2)/ D46(1.8) 30~160(1.2~6.3)/ D80(3.1)
160~200(6.3~7.9)/ D40(1.6)
Max. tool weight*1
[kg (lbs)]
3.0 (6.6) (total tool weight : 25 (55.1) for 14 tools〉
Tool selection method Random shortcut method
Tool change time*5 Tool To Tool [sec.] 0.9
Chip To Chip [sec.] 1.7
Cut To Cut [sec.] 1.4
Electric motor Main spindle motor (10 min/continuous) *2[kW] 10,000min-1specifications : 10.1 / 6.7
16,000min-1specifications : 7.4 / 4.9
10,000min-1high-torque specifications : 12.8 / 8.8
Axis feed motor[kW] 1.0 (X, Y) / 1.5 (Z)
Power source Power supply ACV10% 3-phase, 50/60Hz 1Hz
Power capacity
(continuous) [kVA]
10,000min-1specifications : 9.5
16,000min-1specifications : 9.5
10,000min-1high-torque specifications : 10.4
Air supply Regular air pressure
[MPa]
0.4 - 0.6
Required flow
[L/min]
60
Machine dimensions Height
[mm (inch)]
2,588 (101.9)
Required floor space (with control unit door open)[mm (inch)] 1,456×2,644(3,454)[57.3×104.1(136.0)]
Machine weight (including control unit splash guard)[kg (lbs)] 2,600 (5,732)
Accuracy*3 Positioning accuracy
[mm (inch)]
0.005/300 (0.0002/11.8)
Repeatability
[mm (inch)]
0.003 (0.00012)
Standard accessories Instruction Manual(1 set), anchor bolts(4 pcs.), leveling bolts(4 pcs.), splash guard(manual door), fuse(1 set)
  • *1   Actual tool weight differs depending on the configuration and center of gravity. The figures shown here are for reference only.
  • *2   Spindle motor output differs depending on the spindle speed.
  • *3   Measured in compliance with JIS B6201-1987 and Brother standards. Please contact Brother for details.
  • *4   Brother specifications apply to the pull studs for CTS.
  • *5   Measured in compliance with JIS B6336-9 and MAS011-1987.
  • *6   Can handle work loads up to 170 kg (per one side). Please contact Brother.
  • *7   The Y-axis travel distance decreases to 270mm(generally 320mm) when using a hydraulic rotary joint.

To the top on this page

Quick turn table specifications
Type 0°/180° turntable system
Table dimension
[mm (inch)]
600×420 (23.6×16.5)(one side)
Max. turning diameter
[mm (inch)]
D1,020(D40.2)
Max. jig height
[mm (inch)]
300 (11.8)
Table work area size
[mm (inch)]
600×300 (23.6×11.8)(one side)
Max. loading capacity
[kg (lds)]
120 (265)(one side)*6
Rated table load inertia for turning axis
[(kg・m2)]
14.2(one side)
Table turning system AC servo motor (750W)
HRH gear(total speed reduction ratio: 1/90)
Table position time 2.9s/180°
Table change repeatabilty
[mm (inch)]
0.01(0.0004)
(in the X, Y, and Z axes directions 270 (10.6)
from the center of rotation)
  • *  Quick turn table is a turntable type 2-face pallet changer

To the top on this page

NC Unit specification
CNC Model CNC-B00
Control axes 7 axes ( X, Y, Z, A, B)
Simultaneously controlled axes Positioning 5 axes (X, Y, Z, A, B)
Interpolation
  • Linear : 4 axes ( X, Y, Z, one additional axis)
  • Circular : 2 axes
  • Helical/ conical : 3 axes (X, Y, Z) (Optional)
Least input increment 0.001 mm, 0.0001 inch, 0.001°
Max. programmable dimension 9999.999mm, 999.9999inch
Display 12.1-inch color LCD
Memory capacity Approx.10 Mbytes (Total capacity of program and data bank)
External communication USB memory interface, RS232C 1ch, Ethernet
No.of registrable programs 1,024 (Total capacity of program and data bank)
Program format NC language, conversation (changed by parameter), conversion from conversation program to NC language program available
NC function
  • Absolute/incremental
  • Inch/metric
  • Corner C / Corner R
  • Rotational transformation
  • Synchronized tap
  • Coordinate system setting
  • Dry run
  • Restart
  • Backlash compensation
  • Pitch error compensation
  • Rapid traverse override
  • Cutting feed override
  • Alarm history
  • Status log
  • Machine lock
  • Computer remote
  • High-accuracy mode AII
  • Tool length measurement
  • Tool life management / spare tool
  • Background editing
  • Graphic display
  • Subprogram
  • Expanded workpiece coordinate system (NC)
  • Helical / conical interpolation
  • Scaling (NC)
  • Tool washing filter with filter clogging detection
  • Mirror image (NC)
  • Menu programming (NC)
  • Program compensation (NC)
  • Tool length compensation (NC)
  • Cutter compensation (NC)
  • Operation program (conv.)
  • Schedule program (conv.)
  • Automatic tool selection (conv.)
  • Automatic cutting condition setting (conv.)
  • Automatic tool length compensation setting (conv.)
  • Automatic cutter compensation setting (conv.)
  • Automatic calculation of unknown number input (conv.)
  • Machining order control(conv.)
  • Macro function(NC)
  • Automatic power off
  • Servomotor off standby mode
  • Chip shower off delay
  • Automatic coolant off
  • Automatic work light off
  • Local coordinate system (NC)
  • One-way positioning(NC)
  • Operation in tape mode(NC)
  • Heat expansion compensation system II (X,Y,Z axes)
  • Tap return function
  • * When program size is bigger than 2 Mbytes, machine works with extended memory operation.
  • * Ethernet is a trademark or registered trademark of XEROX in the United States.
  • * Functions with (NC) and (conv.) are available only for NC programs and conversation programs respectively.
