PTE510BP

Handheld Industrial Label Printer with Dual Auto-Cutter and USB-C® (up to 24mm labels), Plus 5 Tapes

$284.00
PTE510BP
PTE510BP - Front
PTE510BP - Left
PTE510_560BT - Arm and Hand Strap 1
Patch Panel Ruler - Front
PTE510BP
PTE510BP - Front
PTE510BP - Left
PTE510_560BT - Arm and Hand Strap 1
Patch Panel Ruler - Front
free shipping icon

Free Ground Shipping**
returns icon

30-Day Return Policy

PTE510BP

Handheld Industrial Label Printer with Dual Auto-Cutter and USB-C® (up to 24mm labels), Plus 5 Tapes

  • Create labels faster with quick application keys for cable wrap, cable flag, patch panel, punch block, and faceplate labels, plus add QR codes & linear barcodes
  • Print a strip of half-cut labels with the dual auto-cutter to make peel-and-apply easy
  • Store your databases and templates to print quickly from existing work
Your Price $284.00

About the Product

Built for users who want all the productivity features without wireless connectivity, the P-Touch EDGE 510 streamlines industrial labeling. Measure your spacing with the included ruler, then format and print tough laminated labels or heat shrink tubes up to 24mm in a few simple steps with quick application keys. Local printer storage supports security restrictions and ensures that templates and databases are always at your fingertips to edit or create labels right on site. Connect to your PC via USB-C to design custom labels with P-Touch Editor software. Then, print, peel and apply a strip of labels with ease thanks to the dual auto-cutter with half cut. And with advanced serialization, a hand strap to help prevent drops and long battery life, the PT-E510 has convenience and compliance covered.

Main Features

  • Full line of industrial media types, sizes and colors Label large industrial projects with laminated labels & heat shrink tubes from 6mm to 24mm¹
  • Smart & intuitive operation Create labels faster with quick application keys for cable wrap, cable flag, patch panel, punch block, and faceplate labels, plus add QR codes & linear barcodes
  • Full & half automatic cutters Print a strip of labels with the dual auto-cutter to make peel-and-apply easy
  • Save time & helps prevent mistakes Store your databases and templates to print quickly from existing work
  • USB-C® Power Delivery (PD) Standard Charge the printer and connect to your PC with USB-C® to design and print from P-touch Editor label design software

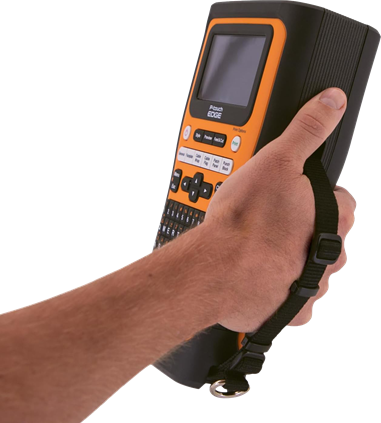

  • Versatile hand strap Ambidextrous hand strap and utility ring provides added drop-protection and convenience
  • Comes ready to print labels Kit includes hard carrying case, patch panel ruler, hand strap, long-lasting rechargeable Li-ion battery, USB-C® cable
  • Brother "at your side" Comes with a 2-year limited exchange warranty & complimentary customer support
  • Brother HGe & industrial TZe tapes are UL certified² Industrial extra-strength adhesive and flexible ID laminated labels are UL certified to the UL-969 standard

Specifications

Energy Conservation Certifications ENERGY STAR Unique ID: 2682260
Compatible Tape Families HGe, TZe, HSe, STe
Compatible Tape Widths 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm
Consumable Format Cartridge with Continuous Media
Media Width Max 0.94" (24mm)
Tape Type‡ Laminated, Non-Laminated, Standard Laminated, Flexible ID, Extra Strength Adhesive, Iron-On Fabric, Acid Free, Tamper Evident, Heat Shrink, Stencil
Operating Environment 50°F - 95°F (10°C - 35°C)
Storage Environment -4°F - 140°F (-20°C - 60°C)
Available Color(s) Orange
Channel Protected No
Battery Charge Time 6 Hours (3 Hours for models compatible with PA-AD-004 Adapter)
Battery Life 300 Cycles
Battery Requirements Rechargeable Li-ion Battery (BA-E001)
Battery Yield 20 Tapes
Power Management Auto Power On/Off
Power Source Options AutoRanging Power Supply, Replaceable Rechargeable Battery
Print Speed AC Adapter: 1.2ips (30mm/sec), Battery: 0.8ips (20mm/sec)
Print Technology Laminated Thermal Transfer
Printer Type Handheld
2 Dimensional Barcodes QR Code, Data Matrix
Bitmap Fonts Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic
Linear Barcodes Code39, Code128, ITF (I-2/5), UPC-A, UPC-E, EAN-8, EAN-13, GS1-128 (UCC/EAN-128), CODABAR (NW-7)
Outline Fonts Print from Software
Stored Templates Up to 99 templates
Warranty Type 2-Year Limited Exchange

Supplies & Accessories (117)

accessories

We're sorry, but this item is limited to 2 per customer.
Out of stock
Out of stock

Promotions

Out of stock

Reviews

¹Maximum media width Media widths listed in inches are approximate. Actual media widths are listed in millimeters (mm).
²UL certified labels All label components and print imaging for certain Brother industrial quality tapes have been tested by Underwriters Laboratories and the printed laminated label is a certified UL recognized component (PGJI2.MH21016)
Database requirements CSV database file is required for the database functionality in the printer. P-touch Editor for Windows is compatible with the following database file formats: txt, CSV, xls, xlsx, mdb and accdb.
Bundled software Additional download required. Software app compatibility may vary based on operating system and by label maker.
